Intelligent CCD Camera Color Sorter for Black Tea/green Tea/longjing Tea
US$ 23,389 - 24,689
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
ZRWS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sales CCD Camera Tea Color Sorter With High Output Capacity for Sri Lanka TeaUS$ 32,450 - 33,450MOQ: 1 Set -
ZRWS Intelligent CCD Tea Color Sorter MachineUS$ 16,500 - 17,000MOQ: 1 Set
-
ZRWS Intelligent CCD Black Tea Color Sorter MachineUS$ 22,000 - 23,000MOQ: 1 Set
-
ZRWS Intelligent CCD Green Tea Color Sorter MachineUS$ 16,500 - 17,000MOQ: 1 Set
-
ZRWS Intelligent CCD Black Tea Sorting MachineUS$ 36,000 - 38,000MOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
ZRWS
Model Number
6CSX-128B
Production Capacity
100-200kg
Voltage
220V 50Hz
Power(W)
2.4-2.6(Kw)
Weight
720(Kg)
Dimension(L*W*H)
1373*1943*2223mm
Certification
CE/SONCAP
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Intelligent CCD camera color sorter for black tea/green tea/longjing tea
Application
Advantages

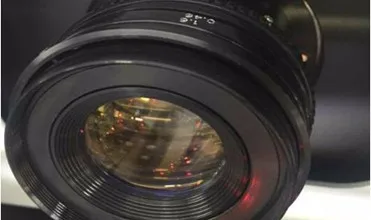

5388 pixel high-resolution line scan CCD image sensor allows to identify any defects with subtlest color variation.
Intelligent algorithms colors shapes,digital information processor decicated for powerful industrial control,high intelligent image processing algorithms dedicated for color sorter.High-speed capture,high-speed processing,which improves the consistency of the signal path and stability and reliability of the system,thus to ensure the sorting effect.

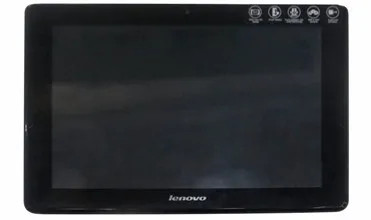

Wireless Panel PC remote Operating system. 12 inch panel PC and android 4.4 operating system. Humanized operation screen is user-friendly.

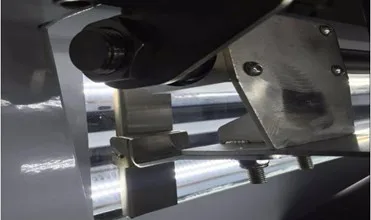

Use High-quality,high-frequency,up to 1200 HZ per second. The fastest response time within 0.6 ms .long service life ejector ,service time 5-10 billion. excellent rejection output .
Special customized aluminum alloy materials , non-toxic, harmless ,which meets the standard of international food safety .Rust proof material is unique for materials, super-wide design, feed smoothly and reduce materials waste, sort more precisely and larger capacity.

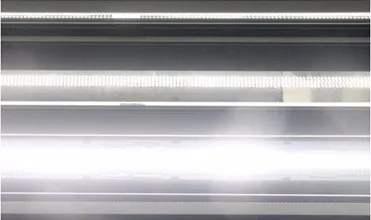

Shadowless LED lighting system allows the most precise focusing of the beam on the inspection line.The LED white light be able to apply to all the materials.

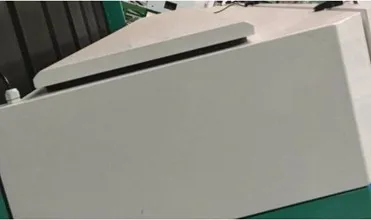

Tilting optical boxes,to allow an easy internal access for maintenance operation.
Automatic cleaning system,with adjustable frequency and duration.
Interactive remote control

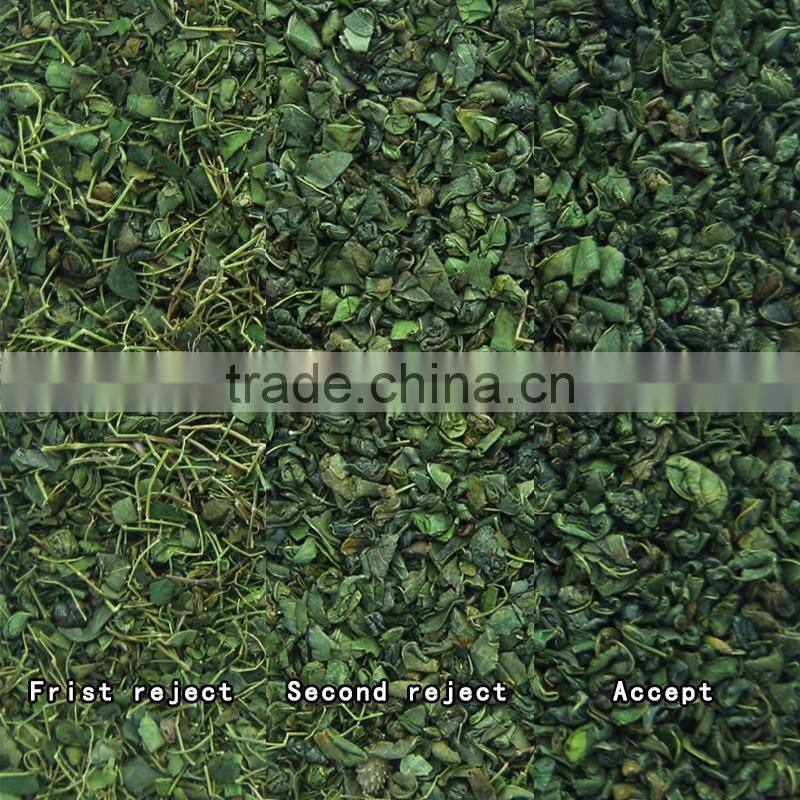

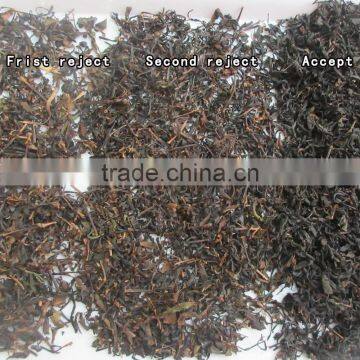

Reject & Accept
Operation
Input product is loaded into the in-feed hopper (1), it moves along the vibrating plate (2), until it flows on to a sloping chute (3), where it is individually checked at 360° and sorted by RGB-Full color cameras (4) . Depending on the signals received by the optical device, the sorter software controls the pneumatic device (6), which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper (8). The rejected products are instead deviated by a jet of compressed air produced by the relevant ejector and discharged in the front side hopper (9). In automatic resort versions, the sorted or rejected product to be conveyed to another section of the machine to undergo an identical process.
Packing & Delivery
About Us
We specialize in color sorter R&D and production basis on independent technology development,having the leading technology in intelligent color sorter. Located in XinLong industrial park ShaJing town, BaoAn district, ShenZhen China,with an area of 16,000 square meters. As the largest color sorter equipment manufacture base in south China, we have the top-level color sorter technical team worked in Europe and America for years. We make great efforts to explore and lead the development of color sorter technology.
At present,our products include rice color sorter,grains color sorter,nuts color sorter,cereals color sorter ,beans color sorter, seeds color sorter ,tea color sorter, Color Sorters for Industrial products and Belt Color Sorter .Our products meet the demands of color sorting in many industries.
