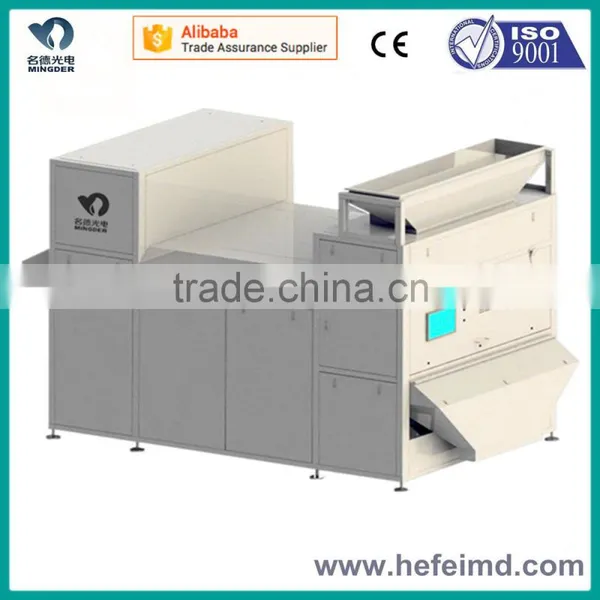

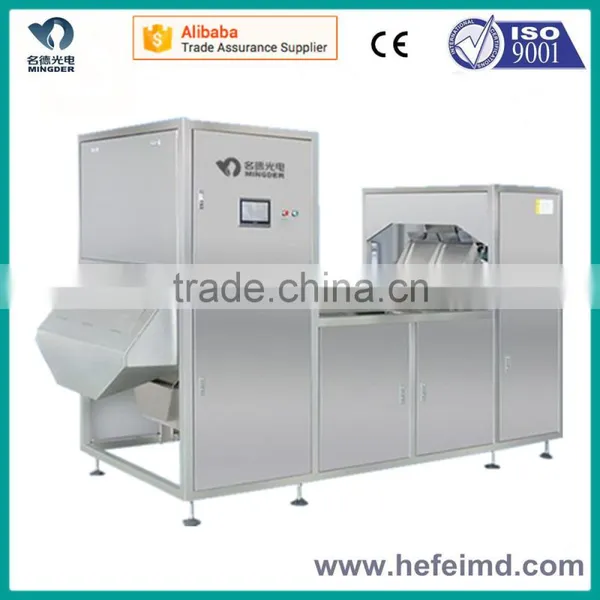

Color Sorter for Waste Recycling Plant

Name: Color Sorter for Waste Recycling Plant
Brand: MINGDER
Availability: InStock

FOB Price

US$ 40,000 - 60,000 / Set

1 Set(Min. Order)

Port SHANGHAI NANJING
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China	Brand Name	MINGDER
Model Number	MS-G	Type	Other, plastic color sorting machine
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Quick information- Plastic CCD belt-type Color Sorting Machine

1. Belt-type soft conveying system

2. High flexibility, appliable to a wider range of materials.

3. Various sorting mode and automatic memory function

4. Double-layer belt system, high impurity

5. Leading LED light source technology

6. The world' s top 2048 CCD sensor

7. Leading intelligent shape function

8. Optional NIR function

Technical Features

1. Linear array CCD full color sorting technique. Spectral regions are flexibly adjustable; can identify micro defected area accurately.

2. Leading LED light source technology, featured with high efficiency, long service life, strong anti-interference ability.

3. Adopt high-quality, high-frequency, long service life, low air consumption, can guarantee maximum output, low carryover ratio and low failure rate.

4. New power supply system, low energy consumption, can help to avoid adverse effect caused by sudden voltage change, therefore to realize long-term stable operation.

5. Belt-type soft conveying system with lower drop, lower broken rate, can be applicable to more various materials.

6. Auto-self-detectionfunction, therefore is user friendly, energy efficient.

7. Leading intelligent shaping function,can effectively detect different size and shapes.

8. Optional NIR function can detect and remove various malignant impurities.

9. The mechanical structure designed for reliable stability, the cooling system can impove the service life and stability of the machine.

color sorter for waste recycling plant| color sorter for waste recycling plant| color sorter for waste recycling plant| color sorter for waste recycling plant

Technical parameters

Model	MS-G126D	MS-G126S	MS-G252D	MS-G252S
Capacity(T/H)	≤2.5	≤2.5	≤5	≤5
Sorting accuracy(%)	≥99.3	≥99.3	≥99.3	≥99.3
Optimized carryover	≥15:1	≥15:1	≥15:1	≥15:1
Power supply	AC220V 50HZ	AC220V 50HZ	AC220V 50HZ	AC220V 50HZ
Power(kW)	2.7	2.7	3.5	3.5
Air Pressure(Mpa)	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Weight(Kg)	900	1700	1200	2200
Dimension(L×W×H:mm)	3600×865×1760	3230×900×2530	3600×1730×1760	3230×1800×2530

Note: The above data is worked out base on plastic with 3% impurity, it may vary according to different materials and different impurities percentage etc.

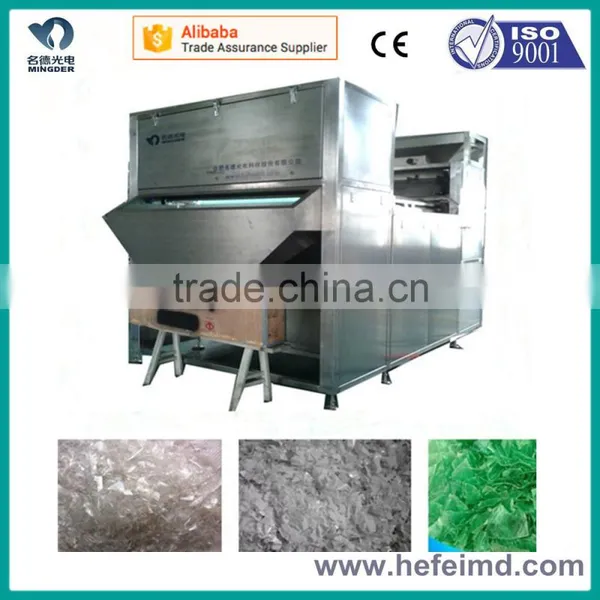

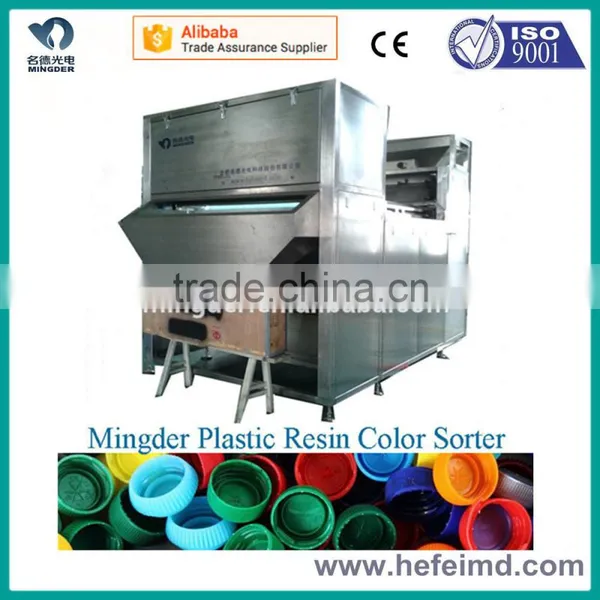

Sorting Cases

Our Services

1.Free installation and commissioning
2.Free maintenance for one year
3.Set office overseas and online operation instruction & solution within 24 h
4.Long life free upgrading software.

Contact us:

Echo Chen

Email: colorsorter1 @hefeimd.com

Whatsapp: 008613965130494

Packaging & Shipping

FAQ

Q:Do you have warranty for our equipment?

A: YES. We provide life-long time maintaining service.

Q:What's the lead time ?

A:about 10-20 working days.

Q: How do you ensure the quality of your products?

A: Generally, our equipment are the most durable type in the industry, this is also the feature of the label impression of Mingder for most of our customers at home or abroad. With our experienced quality control team, we are trying to offer most of our customers the product with best quality.

As the professional manufacturer of ore or stone sorting equipment, we are pleased to offer you the best product in a competitive price.

Quotation of other sorting equipment is also available, please feel free to contact us if you have any request.

Devotion makes profession, professional so excellence!

Company Information

Hefei MINGDE Optoelectronic Technology CO; Ltd is a professional smart-color-sorter equipment research, development and production enterprise, which is located in China, Shuangfeng Economic Development Zone of Hefei city; owns a 40 acres industrial park including 2000m2 R&D center and standard factory; has the capacity to produce more than thousand machines and to generate more than 100 million output value per year.

plastic NIR color sorter| plastic NIR color sorter| plastic NIR color sorter| plastic NIR color sorter| plastic NIR color sorter

The R&D team of MINGDE consisted of innovative experts and talent in photoelectric technology field, most of whom are graduates from Tsinghua University, University of Science and Technology of China etc.

plastic color sorter machine| plastic color sorter machine| plastic color sorter machine| plastic color sorter machine| plastic color sorter machine

The goal of MINGDE is to achieve maximum customer satisfaction by developing smart, practical, user friendly and high quality products. So far, MINGDE has launched a series of smart color sort machine, whose intellectual property rights are owned by MINGDE completely. This series of product can accurately sort food material such as rice, cereal, tea etc. and industrial material including plastic, mineral and so on, which are successfully exported to America, Africa, Southeast Asia and other overseas markets. All series of the products are well respected within photoelectric color sorting field and praised by customers.
