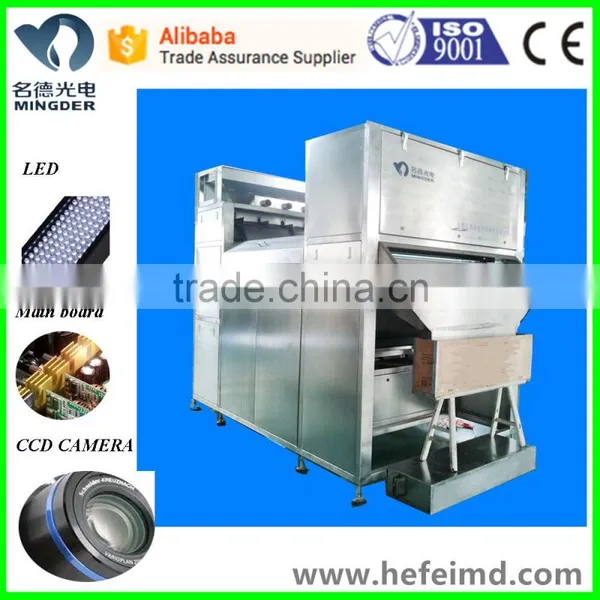

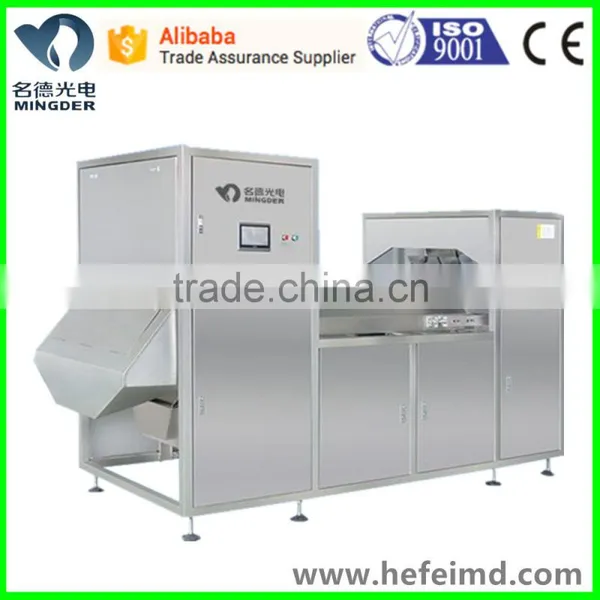

Quick information- Plastic flaeks/granules CCD belt-type Color Sorting Machine
1. Belt-type soft conveying system
2. High flexibility, appliable to a wider range of materials.
3. Various sorting mode and automatic memory function
4. Double-layer belt system, high impurity
5. Leading LED light source technology
6. The world' s top 2048 CCD sensor
7. Leading intelligent shape function
8. Optional NIR function
Technical Features
1.High speed and productive conveying system, belt-type soft conveying system has lower drop, low broken rate, applicable to more various materials.
2.High flexibility, applicable to a wider range of materials, can accurately set the operation parameters according to the moving track of specific materials; which makes the machine multifunctional and high value-added.
3.Powerful Operation System, various sorting mode and automatic memory function, set sorting system once for repeated materials, best sorting results are acquired easily.
4.Double-layer belt-type system, for materials with high impurity for example plastic. It can complete sorting in one time.
5.Resorting function is available, it can re-sort ready to go material and waste material, can achieve higher color sorting accuracy.
6.Leading LED light source technology. High efficiency, long service life,strong anti-interference ability and lower cost.
7.The world’ s top 2048 CCD sensor has high resolution to detect various materials.
8.Leading intelligent shape function, can effectively detect different size and shapes.
9.Optical NIR function can detect and remove various malignant impurities.
Technical parameters
Model | MS-LD640 | MS-LD1280 |
Width(mm) | 640 | 1280 |
Capacity(T/H) | ≤3 | ≤5 |
Sorting accuracy(%) | ≥99 | ≥99 |
Optimized carryover | ≥10:1 | ≥10:1 |
Power supply | AC220V 50HZ | AC220V 50HZ |
Power(kW) | 2.7 | 3.5 |
Air Pressure(Mpa) | 0.6~0.8 | 0.6~0.8 |
Weight(Kg) | 900 | 1200 |
Dimension(L×W×H:mm) | 3310×900×2345 | 3310×1580×2645 |
Note: The above data is worked out base on broad bean with 3% impurity, it may vary according to different materials and different impurities percentage etc.
Sorting Cases
Our Services
1.Free installation and commissioning
2.Free maintenance for one year
3.Set office overseas and online operation instruction & solution within 24 h
4.Long life free upgrading software.
Contact us:
Diana Hong
Skype: dianahongsmile
Email: dianahong @
Whatsapp: 008613966725592
Wechat: h624350311
Q:Do you have warranty for our equipment?
A: YES. We provide life-long time maintaining service.
Q:What's the lead time ?
A:about 10-20 working days.
Q: How do you ensure the quality of your products?
A: Generally, our equipment are the most durable type in the industry, this is also the feature of the label impression of Mingder for most of our customers at home or abroad. With our experienced quality control team, we are trying to offer most of our customers the product with best quality.
As the professional manufacturer of ore or stone sorting equipment, we are pleased to offer you the best product in a competitive price.
Quotation of other sorting equipment is also available, please feel free to contact us if you have any request.
Devotion makes profession, professional so excellence!
Company Information
Hefei MINGDE Optoelectronic Technology CO., Ltd is a professional smart-color-sorter equipment research, development and production enterprise, which is located in Shuangfeng Economic Development Zone of Hefei city China, ; owns a 40 acres industrial park including 20000M2 R&D center and standard factory; has the capacity to produce more than thousand machines and to generate more than 100 million output value per year.
The R&D team of MINGDE consisted of innovative experts and talent in photoelectric technology field, most of whom graduated from Tsinghua University, University of Science and Technology of China etc. The goal of MINGDE is to achieve the customer’s satisfaction maximum by developing smart, practical, user friendly and high quality products. So far, MINGDE has launched the first ore color sorter machine successfully, whose intellectual property rights are owned by MINGDE completely. This series of product can accurately sort Ore mineral stones: Potassium feldspar, barite, pebbles, quartz sand, calcite and limestone and so on, which are successfully exported to Iran, America, Africa, Southeast Asia and other overseas markets. All series of the products are well respected within optoelectroniccolor sorting field and praised by customers.
In MINGDE, our enterprise philosophy is that ‘Integrity is the basis for successes’. We devote to the creation of leading technology and innovation. We are willing to work with friends from all areas and to make brilliant contributions in photoelectric color sorting field.
