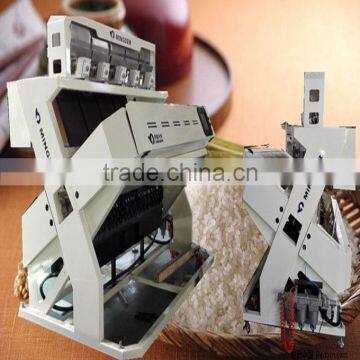

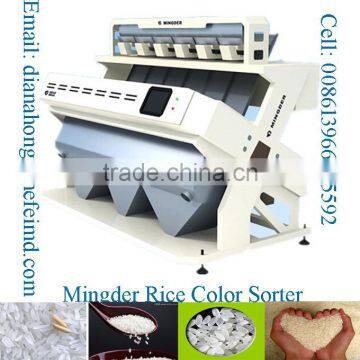

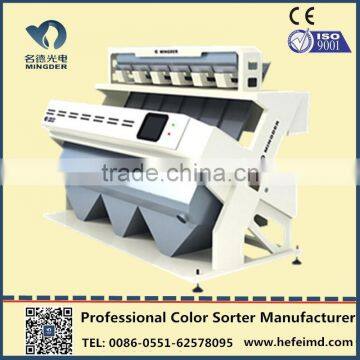

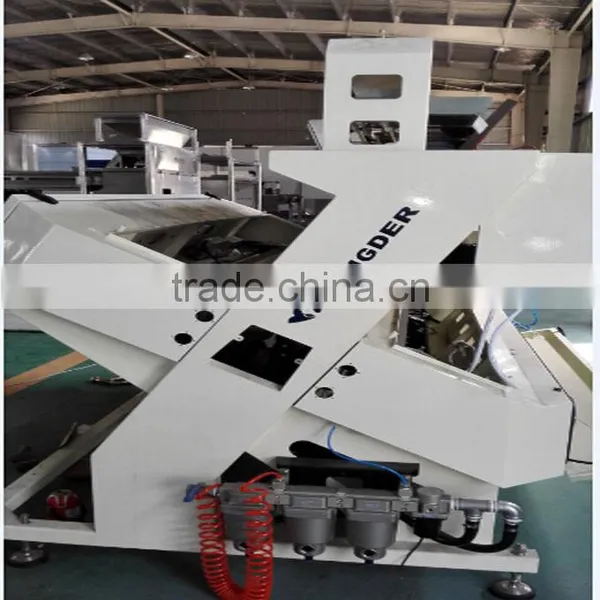

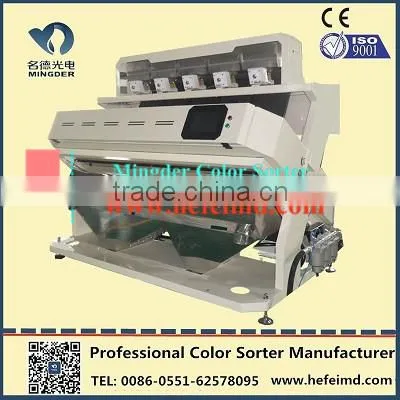

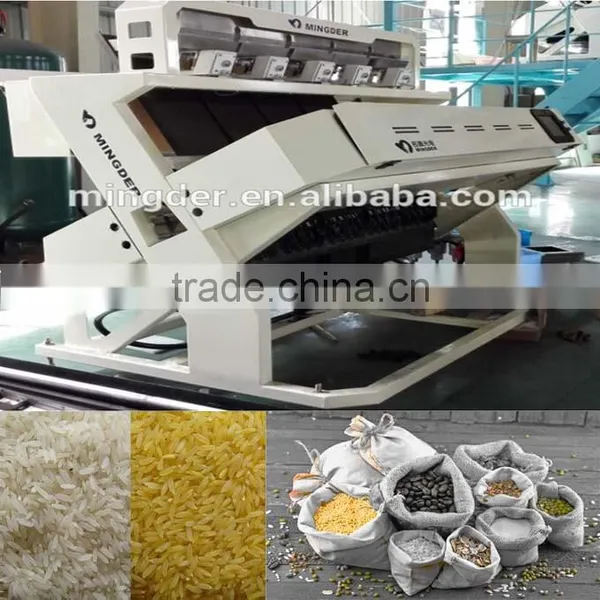

Help CenterNew CCD Intelligent Digital Rice Color Sorter Machine/ Rice Color Sorting Machine
Related Products
-
Intelligent CCD Rice Color Sorter, Rice Color Sorting MachineUS$ 26,560 - 42,000MOQ: 1 Set -
CCD RICE SORING DEVICE, COLOR SORTER MACHINE 1US$ 33,000 - 42,000MOQ: 1 Set
-
Rice Color Sorter, Color Sorting Machine High Capacity 99.99% Accuracy 0086 551 62578095 by MingderUS$ 33,600 - 72,800MOQ: 1 Set
-
2015 Good Performance CCD Cereal Color Sorter by Factory Price by MingderUS$ 33,000 - 42,000MOQ: 1 Set
-
CCD RICE SORTING MACHINE, AGRICULTURAL PROCESSING MACHINE WITH COLOR SORTERUS$ 33,000 - 42,000MOQ: 1 Set
CCD Sensor rice color sorter machine:
1. Carryover 20:1
2.High Sensitivity
3.High Accuracy 99.99%
4.High Stability
5.High output
Intelligent multifunction CCD yellow rice color sorter
Color Sorting Machine for Grain,Wheat,Rice,Seeds,Dehydrated Vegetable,Recycle Plastic Color Sorter, hot !!
RICE COLOR SORTER Machinery
cereal grading machinery
plastic color sorter
peanut color sorter
coffee bean color sorter
raisin color sorter
SORTING MACHINE Type Wheat Grain Color Sorter
agricultural products sorting equipments
rice processing machines and Color Sorter of MINGDER CORPORATION/ Rice Milling Machine
========================================================================================
Specifications
Advanced optical color sorter for rice.
Advanced optical color sorter for rice:
Available in 4, 5, 6, 7 chutes (lanes), 256, 384, 448 channels for small to large capacity requirements.
Sorting accuracy at the speed of light:
Using Mingder-designed cameras, products are scanned 8,000 times per second, creating sorting accuracy that is unachievable by any other method. Images are converted using high speed, 2,048 pixel monochromatic, high-resolution CCD technology, for extreme accuracy in detecting even the smallest defects.
Two cameras per tray, mounted on the front and rear for dual-side viewing of your product.
Designed by Mingder engineers, the new generation Digital Signal Processor operates at optimal data processing speed. Sophisticated sorting algorithms create maximum sorting efficiencies, and there is virtually no time delay between defect signal and ejector activation.
Ejectors that define durability and reliability:
Delta's patented, high-speed pneumatic ejectors are machined to the highest tolerances in the industry.
Precision manufacturing, special metal alloys and custom hardening techniques produce an ejector with an exceptionally long life.
Minimizes maintenance downtime and costs.
Ejector array is highly concentrated for the greatest sorting accuracy and minimal loss of good product.
The world's friendliest optical sorter:
The CCD series continues the Mingder philosophy of making operation easy and intuitive.
Pre-set sorting mode provides fast setup for different products.
Automatic calibration for fast and easy setups.
Fault detection system within each sorter for easy and rapid diagnostics.
Unique pulse width modulation (PWM) feeders ensure a constant feed of product and reduce power consumption by 15-20%.
Large, easy-to-read LED full color touch screen.
Mingder's reliability and service assurance:
Highly trained Mingder technicians assist customers with sorter specifications, options, start up and on-site training.
Each sorter has its own fault detection system for immediate diagnostics.
Long life precision ejectors minimize maintenance costs.
Feeder trays have aircraft coating for durability and minimal friction.
Advanced LED illumination system with no frequent changeover of lamps required and low power consumption.
Worldwide experience and world class service since 2008. Local service is available in most countries or regions.
===================================================================================================

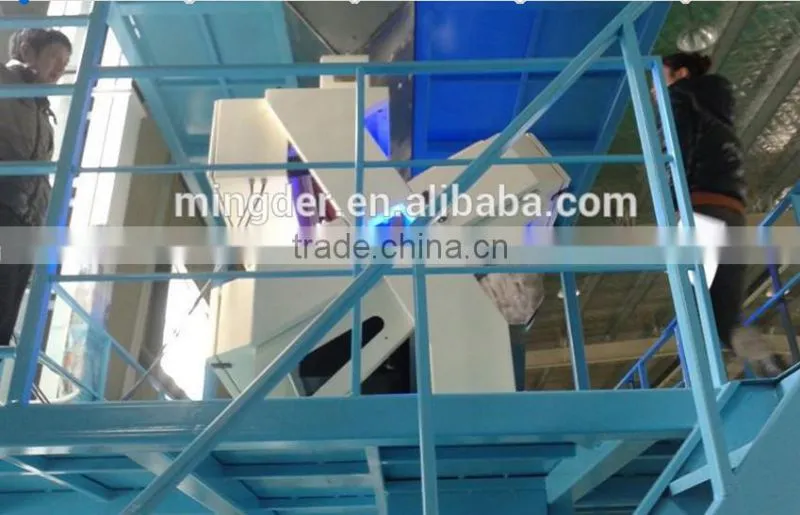

Our test:
Technical features:
1. Linear array CCD full color sorting technique.Spectral regions are flexibly adjustable; can identify micro defected area accurately.
2. Leading LED light source technology.High efficiency, long service life.
3. No need to replace the light source, there are varied chutes available for sorting various cereals, industrial granules and flakes.
4. The ARM+FPGA double core system can enable top-level computing and processing ability.
5. Adopt high-quality, can guarantee maximum output, low carryover ratio and low failure rate.
6. New mechanical structure design, reduces materials broken rate during processing and reduces carryover ratio.
7. Users can define the expected objects to eliminate through adding the defected samples; the software then can automatically prepare the sensitivity.
8. The powerful smart software operation system is easy to learn and to use. The colorful touch panel is user friendly and pleasant.
9. Auto-self-detection function, therefore is user friendly and time, energy efficient.
10. Optional NIR function can detect and remove malignant impurities such as glass piece etc., therefore to ensure output quality.
11. Add shape sorting function. According to the characteristics of materials, by applying unique color plus image processing algorithm, can successfully realize shape sorting.
Technical parameters:
(Model NO.) | MS-M384 | MS-M320 | MS-M256 | |||
(Channels) | 384 | 320 | 256 | |||
(T/H)Output | 4~16 | 4~12 | 3~9 | |||
(%)(Accuracy) | ≥99.99 | ≥99.99 | ≥99.99 | |||
(Optimal Carryover) | ≥20:1 | ≥20:1 | ≥20:1 | |||
(Voltage) (V) | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ | |||
(KW) (Power) | 3.3 | 3.0 | 2.2 | |||
(Mpa) (Air Pressure) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |||
(KG) (Weight) | 1400 | 1120 | 900 | |||
(L×W×H:MM) (Dimension) | 2900*1500*2200 | 1500*2122*2200 | 1500*1850*2200 | |||
(Model NO.) | MS-M384 | MS-M320 | MS-M256 | |||
(L*W*H:MM) (Dimension) | 2900*1500*2200 | 1500*2122*2200 | 1500*1850*2200 | |||
Note :1. All the parameters listed above are worked out base on soybean with 5% impurity, it may vary according to different targeted materials and different impurities percentage etc.
The output of each chute may vary too.
2. Update to the machine is allowed without notification. Please refer to the actual machine for more details.
