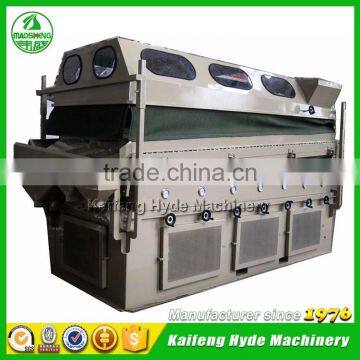

5XZ 10T blighted grain cleaning gravity table machine

5XZ 10T blighted grain cleaning gravity table machine

5XZ Series Blighted grain cleaning gravity table machine

1) Function: fine cleaning,sorting, separating, to remove bad, immature, insect da maged, moldy and germinated seeds, impurities, and admixtures such as stones of the same size but with different specific weight.
2) Application: cereal grains and seeds, sunflower seeds and tea leaves.
3) Capacity: 3t/h, 5t/h, 10t/h (wheat).

Gravity Separators, also known as gravity separation tables, specific gravity separators, or density separators, are key processing machines for the perfect separation of products which are already treated by air screen cleaners and indented cylinders.

Gravity separators sort dry, granular, free flowing material into streams according to specific gravity by function of air lifting, vibration for stratification and conveying, and inclined screen deck for separation.

1. Wide Application of 5XZ Blighted grain gravity table machine

5XZ series gravity separators are widely used to remove impurities, admixture, insect damage and immature kernels from cereal grains such as wheat, barley, oilseed rape, peas, beans, cocoa beans, hazelnuts, linseed.

They can also be used to separate and standardize coffee beans, cocoa beans, peanuts, peas, maize, sunflower seeds, tea leaves, rice, wheat, sesame and other food grains.

Variable screen configuration:

5XZ Blighted grain gravity table machine in 10t/h Grain Seed Cleaning Plant                 ↓↓↓

Hyde 5XZ Blighted grain gravity table machine in South Korea Soybean Cleaning Plant

Hyde 5XZ Blighted grain gravity table machine in Rice Beans Maize Sesame Seed Cleaning Plants

2. Working Principle of 5XZ Blighted grain gravity table machine

Seeds and grains can be separated and graded by the suspension and friction characteristics.

Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.

The rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.

3. Advantages of 5XZ Blighted grain gravity table machine

Hyde 5XZ grain gravity separators are designed with simple operation, long service life and above all, accuracy in separation of as slight as 0.5% difference in specific density.

Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and and air volume.

Structural features:

1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Rectangular deck for greater capacity and accuracy.
3) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
4) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
5) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
6) Eccentrics are counter balanced giving smooth oscillation action to the deck.
7) Variable feed speed, deck inclination, vibration speed and air volume in wide range by individual control units.
8) Safe guards to all moving parts ensure the safe operation.
9) Environmentally friendly with screen dedusting cover, low noise.

Special features:

• Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
• Larger motor for heavy seed.
• Separate greater quantities faster and more efficiently.
• Stainless steel available for edible products.

4. Technical Specification of 5XZ Blighted grain gravity table machine

Notes:
1. Machine can be converted to different cleaning programs, screens shall be changed accordingly.
2. Above technical data can vary due to continued development, or different machine configurations.
3. Capacity may vary depending on seed condition and acceptable impurity content in final product.

Our main products are:

Seed cleaners, graders, seed gravity separators, indented cylinder separators, de-awners, destoners, cyclones, seed treaters, dryers, elevators and conveyors, electronic bagging scales, harvesters for seeds, grains, cereals, beans, forestry seeds, crops and food, ranging from customized systems to complete turnkey plants.

Seed cleaning machine series:

     Air Screen Seed Cleaner                          Seed Gravity Separator                    Indented Cylinder Separator

          Seed Treater                              Auto-Bagging Scale                                    Mobile Combine Cleaner

Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.

With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.

Kaifeng Hyde Machinery, separated in 2002 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines and equipment.

1. Maosheng Group Factory and Workshop

2. Hyde Machinery Factory and Workshop

3. Customer Visits and Oversea Cooperations

To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013.

Check below pictures for customers from Australia, Canada, Egypt, Indonesia, Iran, Israel, Russia, South Korea, Sudan, UAE, etc.

4. Certificates and Honors

With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.

 Why choose us?

Pre-sales Service

1. Technical Consulting Service

Our wide product range enables us to provide most flexible, efficient and reliable equipment configurations or complete solutions for customers according to different requests and budgets.
2. Company and Production Line Visit

Before placing orders, customers are warmly welcome to visit Hyde and our facility. We can also arrange the visit to our existing customers to learn the operation condition of our machines and complete plant.

In-sales Service

1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and spare parts provided for free.

After-sales Service

1. Fast technical guidance for construction, installation and commissioning.
2. Necessary training for daily maintenance on site.
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.

Q: What do you need to know for fast communication and quotation?

A: It would be highly appreciated if you can provide details of your processing material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed, and other working conditions.

Q: Can you make the machines as per our special requirement?

A: Yes, OEM/ODM service available.

Q: What about the lead time?

A: 10~30 workdays, depending on the type of machine and parts availability.

Q: What is your payment terms?

A: T/T, L/C, Western Union, Cash accepted.

30% deposit with purhase order, 70% balance paid prior to shipment.

Q: How can you guarantee the quality?

A: Quality control by incoming material inspection, 100% in-production check and random check after packaging.

Spare parts and technical solutions provided timely for machine failure.

Q: How do we visit your company?

A: Hyde Machinery is located in Kaifeng City, Henan Provice, China.

1 hour drive from nearest Zhengzhou Xinzheng airport, half hour drive to Maosheng Group headquarters.

Welcome your enquiry and visit about Blighted grain gravity table machine!
