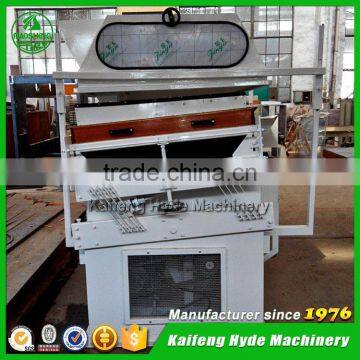

5XZ Series Seed Density / Gravity Separator

1) Function: fine cleaning,sorting, separating, to remove bad, immature, insect da maged, moldy and germinated seeds, impurities, and admixtures such as stones of the same size but with different specific weight.
2) Application: cereal grains and seeds, sunflower seeds and tea leaves.
3) Capacity: 3t/h, 5t/h, 10t/h (wheat).

Gravity Separators, also known as gravity separation tables, specific gravity separators, or density separators, are key processing machines for the perfect separation of products which are already treated by air screen cleaners and indented cylinders.

Gravity separators sort dry, granular, free flowing material into streams according to specific gravity by function of air lifting, vibration for stratification and conveying, and inclined screen deck for separation.

1. Wide Application of 5XZ Seeds Gravity Separator

5XZ series gravity separators are widely used to remove impurities, admixture, insect damage and immature kernels from cereal grains such as wheat, barley, oilseed rape, peas, beans, cocoa beans, hazelnuts, linseed.

They can also be used to separate and standardize coffee beans, cocoa beans, peanuts, peas, maize, sunflower seeds, tea leaves, rice, wheat, sesame and other food grains.

Variable screen configuration:

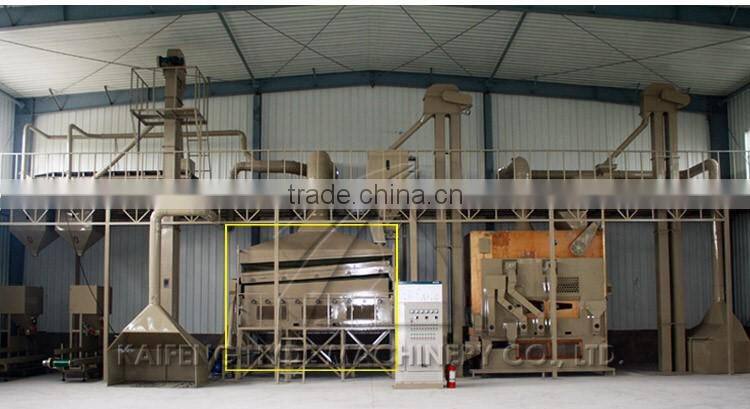

5XZ Seed Gravity Separator in 10t/h Seed Cleaning Plant                 ↓↓↓

Hyde 5XZ Seed Gravity Separator in South Korea Soybean Cleaning Plant

Hyde 5XZ Seed Gravity Separator in Wheat Seed Cleaning Plant

2. Working Principle of 5XZ Seed Gravity Separator

Seeds and grains can be separated and graded by the suspension and friction characteristics.

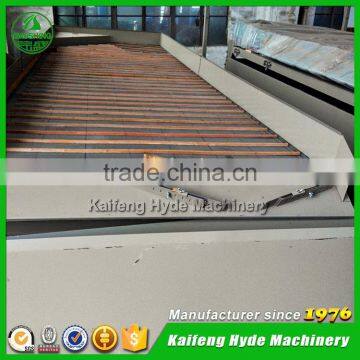

Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.

The rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.

3. Advantages of 5XZ Seed Gravity Separator

Hyde 5XZ seed gravity separators are designed with simple operation, long service life and above all, accuracy in separation of as slight as 0.5% difference in specific density.

Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and and air volume.

Structural features:

1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Rectangular deck for greater capacity and accuracy.
3) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
4) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
5) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
6) Eccentrics are counter balanced giving smooth oscillation action to the deck.
7) Variable feed speed, deck inclination, vibration speed and air volume in wide range by individual control units.
8) Safe guards to all moving parts ensure the safe operation.
9) Environmentally friendly with screen dedusting cover, low noise.

Special features:

• Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
• Larger motor for heavy seed.
• Separate greater quantities faster and more efficiently.
• Stainless steel available for edible products.

4. Technical Specification of 5XZ Seed Gravity Separator

Notes:
1. Machine can be converted to different cleaning programs, screens shall be changed accordingly.
2. Above technical data can vary due to continued development, or different machine configurations.
3. Capacity may vary depending on seed condition and acceptable impurity content in final product.
