ccd tea color sorter for broken pekoe sorting

Thanks for viewing our page. if you have any question, please feel free to contact us.

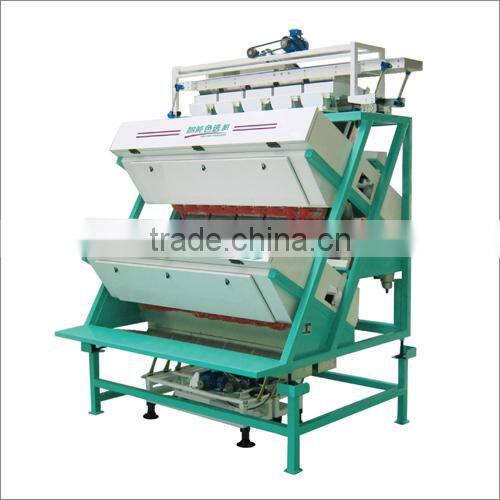

  Hons+ tea ccd color sorter

Specifications

(1)Best Optical Selection Possible
(2)Minimun Reject
(3)High Production Capacities

(4)Technically advanced

Sorting Material

Dark Tea, White Tea, Oolong Tea, Black Tea, Yunnan Tea, Yellow Tea, Puer Tea, etc

 Parameter

Sorting performance

Product advantages:

1. Advanced digital image acquisition system

A. Global advanced optical system design with various light resources and wide vision range to achieve optimum efficiency to recognize different materials.

B. Adopt 5000 pixel CCD sensor of high resolution and sensitivity to identify 0.04 mm2 minor defects.

C. Imported wide angle and large aperture customized industrial camera lens to ensure best image quality.

2. High frequency solenoid valve

A. Adopt famous Italian brand solenoid value/ejector which works 1000times/second and lower the air consumption rate 20%.

3. Automatic operation interface

A. Adopt famous Japanese brand display screen

B. Users can set different sorting models as per their requirement. More than 20 setting models can be saved for sorting different materials.

C. Automatic tracking and adjusting system, easy operation.

4. LED light resource application

A. Use LED lights with higher stability and longer usage life instead of fluorescent lamps.

B. A variety of light resources can be customized according to customer’s different demands.

5. Special intelligent image processing system

A. Ultra-fast processor to make efficient analysis and detection of the RBG signal feature of materials.

B. Based on FPGA+DSP hard ware system, powerful processing capacity to deal with large data operation. It can identify tiny spots or color difference, even smaller than 0.04 mm2.
C. Be able to synchronize multi-task, diversified sorting model independently on each group and capable of sorting color positively and negatively, sorting different colors at the same time as well.

D. Creative software algorithms, improved the sorting results perfectly.

6. Super computing and processing capacity

A. Great computing capacity to deal with large ultrafast operation.

B. Flexible processing capability, customizing a variety of image processing algorithms immediately.
