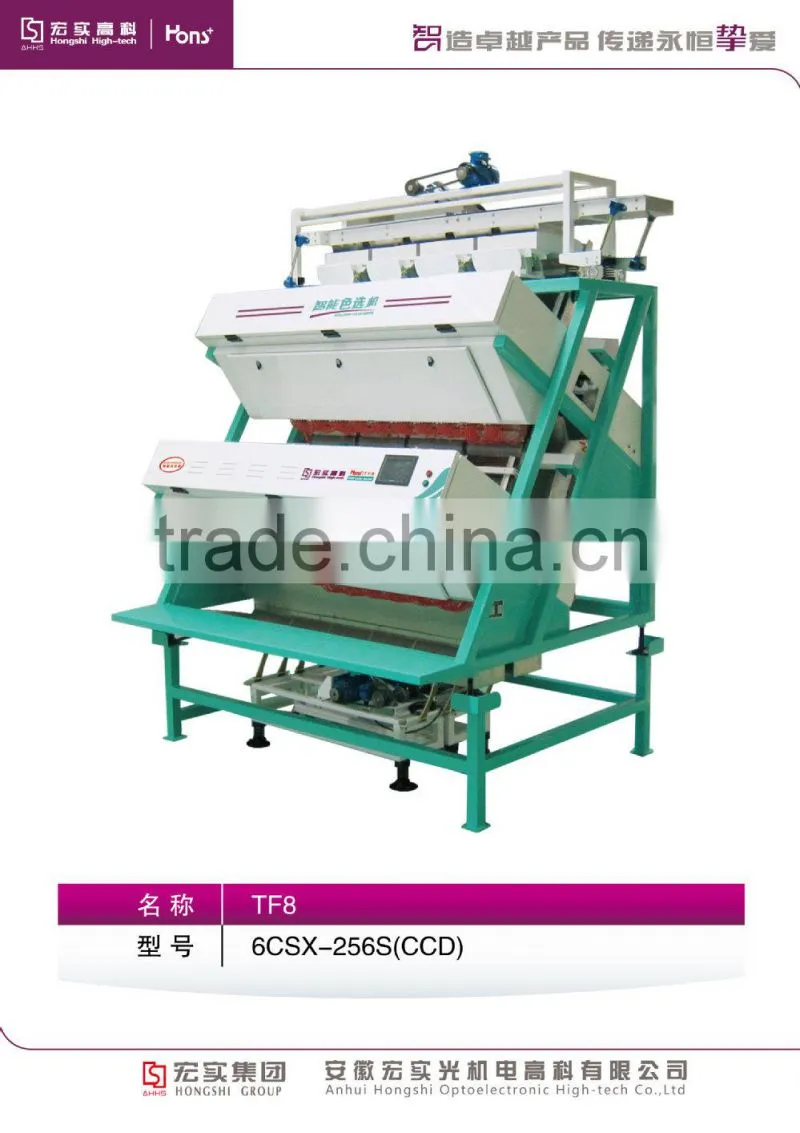

Professional CCD color sorter machine for tea
Basic Technical Parameters:
Model | 6SXHS-SE128A44A | 6SXHS-SG240A44A |
Channels | 128*2 | 240 |
Throughput | 0.2-0.5t/h | 0.15-0.35 t/h |
Accuracy | >98% | 98-99.9% |
Voltage | AC220V/AC360V | AC220V |
Power of main machine | 2.5kw | 2kw |
Pressure | 1Mpa | 1Mpa |
Consumption | 1.8M3/min | 3 M3/min |
Weight | 410kg | 1136kg |
Air compressor power | 7.5×2 | 11×2 |
Air tank capacity | 500L | 1000L |
Dimension | 1660*1710*2930 | 2200*1700*3000 |
Note: All the parameters listed above are referred to the Sri Lanka black tea (3% of impurities), and the specific data are to be altered subject to the material orcontent of impurities. Specifications and dimensions are subject to change without notice.
1. Inventively used the ccd true color sensor technology,2084 pixels,identify the area which less than 0.06mm² . And also used the DSP digital processing technology to make high speed test and high discrimination.
2. Special light source , we used the advanced light of lamp and LED with long life ,high light efficiency and high color rendering to improve the sorting accuracy to meet customers demands.
3.Used advanced special slide ,reduce friction and cconvinennt for maintenance.
4.High speed and relliable communications syetem used to protect the efficiency and stability.
5.Embedded operating system offers friendly interface ,easy to operate.
Welcome to order and welcome to visit our factory!
