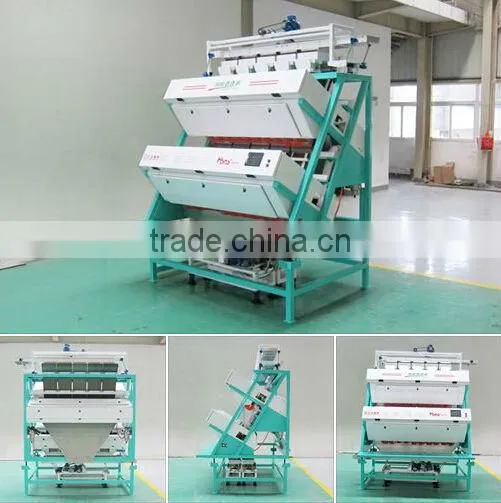

CCD Biochromatic 5000+ Piexl Plastic Caps Color Sorting Machine

Anhui Hongshi Optoelectronic High-Tech Co., Ltd.
CCD Biochromatic 5000+ Piexl Plastic Caps Color Sorting Machine thumbnail-1
CCD Biochromatic 5000+ Piexl Plastic Caps Color Sorting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HONGSHI
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name HONGSHI
Model Number plastic color sorting machine
Production Capacity 100%
Voltage 220v, 220V
Power(W) 2.5kw
Weight 1000kg, 820kg
Dimension(L*W*H) 2154
Certification 2415
Warranty 2654
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Plastic sorter
1.2048 pixel CCD camera
2.High speed ejector valves.
3.Good stability
4.Competive price.

Advantage for HONGSHI Rice Color Sorter machine


1. Mpored high-end 2048IPIEX CCD camera, can distingush infinitesimailspots which are less than 0.06mm2, glasses and resin etc, increase sorting impression to a higher level.

CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine


2. Scientific and resonable optocs-design, more clear for light yellow, distinguish wider rang.

CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine



3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended te life of machine.

CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine


4. More intelligent software, can distingush all kinds of heterochrosis grain easily and totally improved the accuracy of selection.

CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine


5. Humanization ture colour screen, visual effect is more clear, operation is more easiler.

CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine


6. Professinal high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy

CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine
7. All main parts are coming from importing.



8. Outstanding Cooling way to ensure machine run smoothly.



9. Strong salesafter sevice team beef up all sides sevice of Hongshi Group.



10. Convenient payment item to satisfy customer's requirment.







CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine





Technical Specifications4R(252channels)5R(315Channels)6R(378Channels)
Model6SXHS-ZD46SXHS-3156SXHS-ZD6
Production Capacity(/H)2-5ton3-7ton4-10ton
Sorting Accuracy99.9%99.9%99.9%
Rejecting Rate(Bad:good)10:1-20:110:1-20:110:1-20:1
Total weight1000KG(±5%)1100KG(±5%)
Host power(kw)≤2.7≤3.1
Air Consumption(m³/min)1.83
Air compressor power11kw*211kw*2
Air pressure0.6-0.8MPa0.6-0.8MPa
Power supply (Voltage/HZ)AC220V/50HZAC220V/50HZAC220V/50HZ
Outline Dimension2121*1582*2034 MM2212*1455*1857 MM
Cooling ModleWind coolingWind coolingWind cooling
Ejectors252315378
Cameras2048 Black&White2048 Black&White2048 Black&White
Control ChipUSAUSAUSA



 CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine

 CCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machineCCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machineCCD Biochromatic 5000+ Piexl Plastic Caps Color sorting machine
