Home > Products > Different Extrusion line > Fruit packing EPE foam net
Fruit packing EPE foam net
- 30 Set / Sets per Month
- QingDao Export
- T/T
You May Like
-
130mm epe foaming extrusion line
-
Factory Price Epe Foaming Sheet Extrusion Machine
-
Auto and High Productivity EPE Foam Sheet Thickening Machine
-
foaming net machine/plastic foam machinery
-
EPE foam fruit net extrusion machine,fruit protect net making machine
-
Hot sale EPE foam fruit net making machinery
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | Fully Automatic | Place of Origin | Shandong, China | |
| Brand Name | HOTY | Model Number | HOTY-70 | |
| Voltage | 220V/380V | Power(W) | 28kw | |
| Dimension(L*W*H) | 15000*1300*1700 | Weight | 6T | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

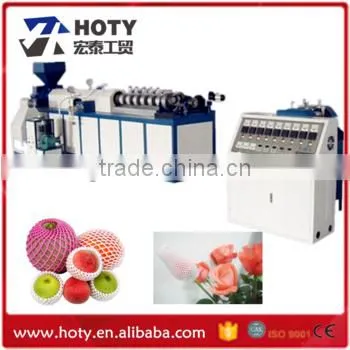

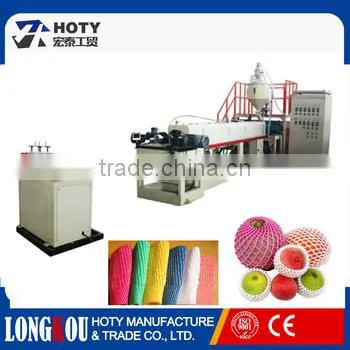

EPE foam net production line
The main characteristics of EPE foam net production line are less input, high-output and quick return. It can produce 800000 to 1000000 pcs fruit net per day. It is features for its high output, high quality and high efficiency. Changing the molds, it can also produce all kind if foam sticks, foam pipe, foam sheet, etc.
EPE foam fruit net making machine mainly used the production of EPE sheet material, after thawing the LDPE resin mixed with butane gas, talcum powder, anti-shrinkage agents and other agents through the extruder and foaming from the die and die lip, then after setting ring fixed to the sheet size, the final product take-up by the roller.
Details
Extruder
1.Screw and barrel is refined from 38CrMnALA nitrided steel, under tempering and nitriding, surface hardess above HV1000, diameter 105mm, order processing site is Zhoushan, Zhejiang.
2. Heating coil is divided into two parts, plastics and cooling zones, plasticizing section with new energy-saving infrared heating ring, energy saving. Cooling section with explosion-proof cast aluminum heating ring, corrosion-resistant, leak-proof. Cooling method for cooling water dripping barrel surface, good cooling effect, easy to control the temperature, make equipment running more stable and reliable
Extruder head
Head is special foaming head, thickess of product is 0.3—6mm， width is 900—1600mm.(width could be made as customer request), with 2 dies(could be selectable)
Air-cooled sizing mill
1. Adopt changeable wellbore width control, ventilation and cooling tube. Equip with two sizing cylinder .
2. Removable wind ring 1 set
3.Cooling fan 2 sets, sizing drum fan 750w, air ring
blower 1100w, two fans are used in air compressor, the cooling effect is fully guaranteed.
4. Cutting using motor drive slitter.
Winder
1.Using inflatable winding shaft, effective length 1600mm.
2.Winder motor is two torque motor
3. Double station at winding table.
4. Can set length free, automatic measurement, auto flip to change station, rewinding shaft can be auto start/stop.
Products
Pre-Sales Service
Pre-Sales Service
* Flexible payment, customer can priority participate to test machine or arrange the customer to visit at the third party of our company business unit, after produce the requested foam sheet with the equipment customer ordered, then pay the full amount.
* Professional pre-sale advice, assured after-sale service, 24 hours malfunction declaration, to come up with the solutions within the shortest time.
After-Sales Service
* After-sales Service Provided: Engineers available to service machinery overseas
* Warranty:1 year
* On-site commissioning and installation, provide the training of customer’s technical staff, until customer complete master of the technology.
Do you have these question?
1.Q:Whether your products export?
A:Yes.We exported to Turkey,England,SaudiArabia,
India,Africa,South Africa,Brazil,Egypt,Venezuela,Zambia and so on.
2.Q:Can you give me the lowest price?
A:No.We can’t give you the lowest price,but we could give you top quality.If you think our price
higher than others,we can explain why it worth this price.We prefer to take the time in advance
rather than afterwards.
The excuses for bad quality like to you apology is wasting us time.If just for the pursuit of profit,
we will get your order quickly through lowing the price.But many manufactures lack proud product
in order to pursuit our promise.We would not betray our future because of short-term benefits,this
is not the final purpose of business.
We will definitely not throw out our future for immediate interest.We hope to keep long-term
cooperation with our customers not one time benefit.
3.Q:How will you treat quality complaint?
A:First of all,our quality control will reduce the possibility of quality problem near zero.If this is
a really quality problem caused by us,we will send you free goods for replacement,or refund your loss.
4.Q: How do you after-sale service word if the product got damaged?
A:In the guarantee time 12 months,our general after-sale service is changing the damaged parts for
the customers,but if the damage can be repaired by slight cost,we would wait for the customer’s bill
for the fix cost and refund this part of cost.(note:vulnerable part do not include)
