Specifications
automatic uncoilerPrecison cutting
Sturdily built
High performance

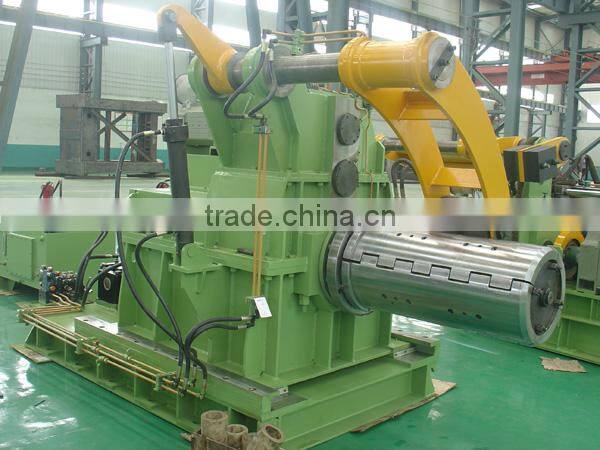

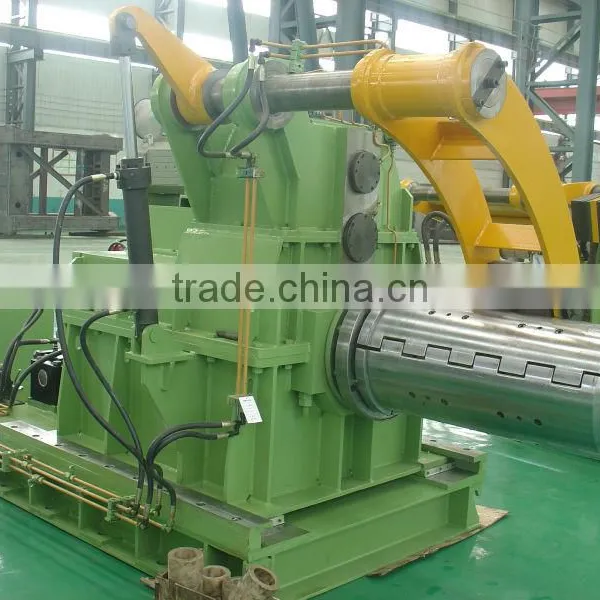

Horizontal Uncoiler / Decoiler
1. Decoiler is a special equipment, sheet metal leveling leveling line for steel plate and uneven plate according to the relevant configuration of uncoiling, leveling and shearing line and other sheet metal products production line.
2. Decoiler/Uncoiler is widely used in ubncoiling HR( hot rolled), CR( cold rolled) steel coil or aluminum coil.
3.Main technical parameter
Material: Cold-rolled, hot-rolled carbon steel, galvanized steel.
Material thickness:0.3-3.0mm
Material width:800-1950mm
Coil I.D.: Φ508mm/Φ610mm
Coil O.D.: ≤Φ2000mm
Coil weight:20 tons max
Narrowest strip width slit into: 25mm (strip thickness≤1mm)
Width cutting precision: ±0.05mm(strip thickness≤1), ±0.1mm(strip thickness>1.5mm)
Slitting Bur: 0.03minimum, 5% of the trip thickness
No. of slitting: 25no.(thickness1mm), 12no.(thickness2mm), 7no.(thickness 3mm)
Line working speed: 150m/min max
Total power: Approx.210kw
If you have any question, please be free to contact me.
