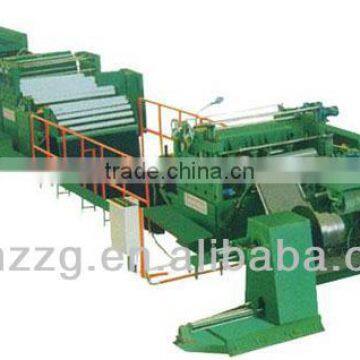

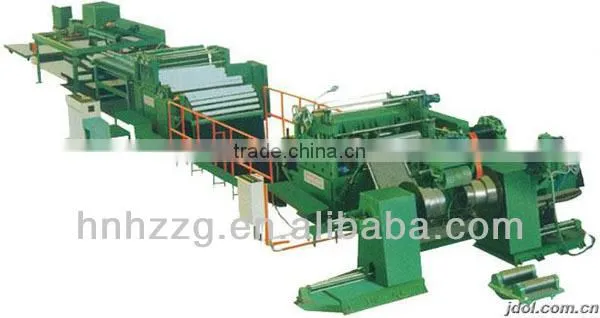

high quality steel coiler manufacturer

Specifications

1. High production efficiency
2. Simple operation
3. Reliable working performance



1. Production process

Aluminum coil preparation, unwinding, cutting head, straight threading, trimming, cleaning inspection, coiling, unloading rolls, strapping, weighing, printing, storage stockpiles to be shipped.

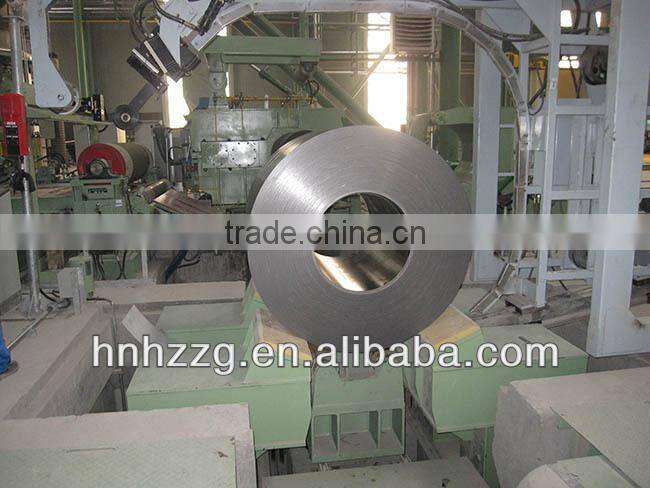

According to the production plan, with a workshop crane lifted the aluminum coil to the entrance of the saddle, aluminum coil car by the entrance of future material aluminum coil width by caliper measurement device, manually or automatically on aluminum coil to uncoiler reel uncoiler a shaft head support and pressure rollers, lift the head support on the volume of the rear axle support roll, roll up while diameter, pressure roller pressure to prevent unwinding. Aluminum reel to reel uncoiler, the pressure roller pressure, and rotate with the reel uncoiler assist with aluminum head by threading units into the side guides on the device for being with aluminum, then with aluminum passes through the assistance of a belt wrapper is wound into the winding machine. After winding copper volumes transported by unloading car to exit the saddle, and then at the exit point of the saddle with aluminum weighing, bundling and printing processes, and then by a crane to store finished products waiting for delivery.

2. Main parameters of recoiler

(A) unit feeding speed: V <18m/min (adjustable)

(b) units operating speed: When heavy volume: 360 m / min (with a thickness of 0.08-2.0mm)

200 m / min (with a thickness of 0.08-2.0mm)

Unwinding tension: 26KN (Max)

Coiling tension: 28.5KN (Max)

Unit winding way: the uncoiling

Transmission unit: the take-up

Transmission unit direction: Left Drive



Zhengzhou Hengzhong is a professional and large aluminum processing equipment manufacturer and can supply high quality and competitive price recoiler.

If you are interested in our products, please feel free to chat with us online.
