Specifications
Tension leveler equipment1,High flatness of strip shape
2,High automation
3,Convenient operation
4,Good service

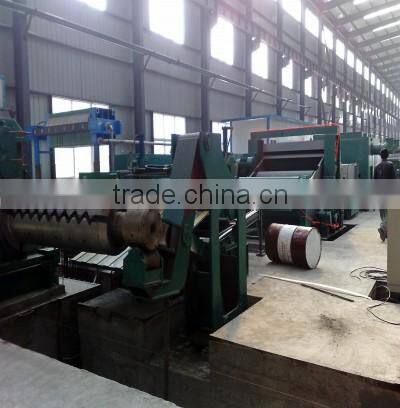

Tension leveler equipment detailed description
1, Why we need tension leveler equipment?
In the process of cold rolling, there are usually edge waves and buckling in the strip due to the structure of the roller and equipment accuracy. The strip tension leveler equipment aim to resolve this problem.
Unit Description: the main work of the strip tension leveler equipment is processing finished plate by cold rolling mill. The specific process is decoil , entry S roller, straightening machine, exit S roller, recoil. This make the products meet extensibility requirement finally.
2, Our tension leveler equipment has following advantages:
a. Higher flatness of the strip shape.
b. Higher automation in the operating process.
3, Technical parameter:(tension leveler equipment):
Aluminum alloy |
1000,3000,8000 series |
Dia. of stretch roll |
550~1300 mm |
Stretching and bending material |
Aluminum and alloy |
Rolling speed |
80~400 m/min |
Entry thickness |
0.08~4.0 mm |
Cleaning forms |
Water cleaning |
Entry width |
600~2150 mm |
Max. Extension ratio |
3% |
Max. Weight of coil |
Max 30000 kg |
For more information, please contact us directly. We hope to receive your detailed inquiries soon, and we are looking forward to having the chance of cooperating with you in the near furture.
Keywords: Tension leveler equipment, Metal leveling machine, stretch leveller
