Specifications

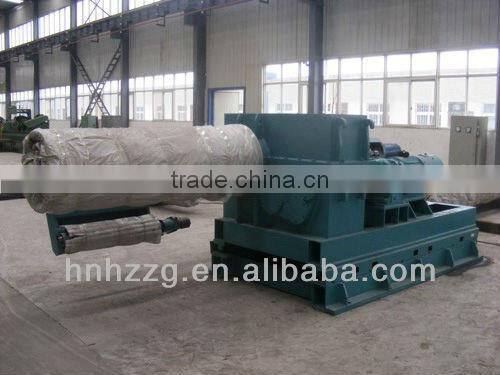

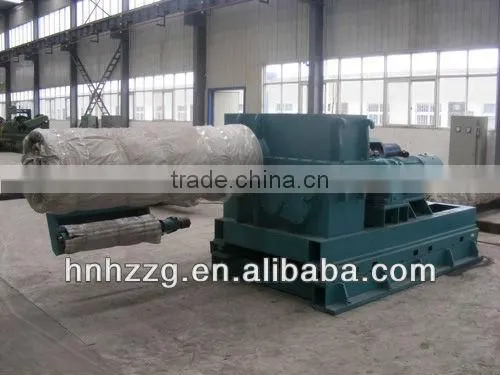

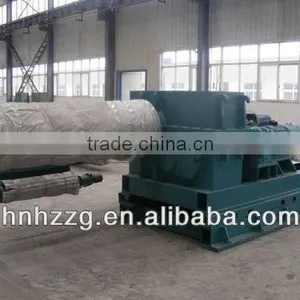

Aluminum Wire Coiler is of high performance and high efficiency. It is of high quality and excellent service.1. Raw Material Parameters
| Marerial Quality |
Domestic Genuine O state 1060 aluminum coil or stainless steel and carbon steel |
| Material Thickness | 3mm |
| Material Width | 1700mm |
| Material Inner-diameter | φ508mm |
| Material outer-diameter | φ1000mm~φ2000mm |
| Max. Enter weight | 2-5t |
| Max. Exit weight | 2-10t |
| Shearing Speed | 0-120m/min (adjustable) |
| Total power | 80kw |
| normal operation power | 80kw |
| Power supply | 380v/50hz |
| Active Power | Winder AC18.5kW |
| S Roller Power | AC15kW with precision reducer |
| Production line direction | from left to right |
| Unit Color | computer gray |
2.Final product parameters
1. Aluminum coil inner-diameter:φ500mm
2. Aluminum coil outer-diameter:φ2000mm
3. Material weight :max. Exit coil weight 10t
3.Equipment components
1. Hydraulic Winder: 1 group
2. Traction Machine, Pneumatic Shears, Aluminum Splicer 1 group
3. Pre-S Roller 2 groups
4.Our concrete products
Our concrete products include such as Aluminum Casting Machine, Aluminum Cold Rolling Mill, Aluminum Foil Rolling Mill, Aluminum Cleaning Line, Tension Leveling Line, Cut-to-length-line, Rotary Shear, Cast Roller Series, Straightening Machine, Coiling Machine, Uncoiling Machine, and other products.
Should any of our products be of your interest, please feel free to contact me, I am ready to provide you any information that you concern, I am looking forward to establishing long term business relationship with you!
