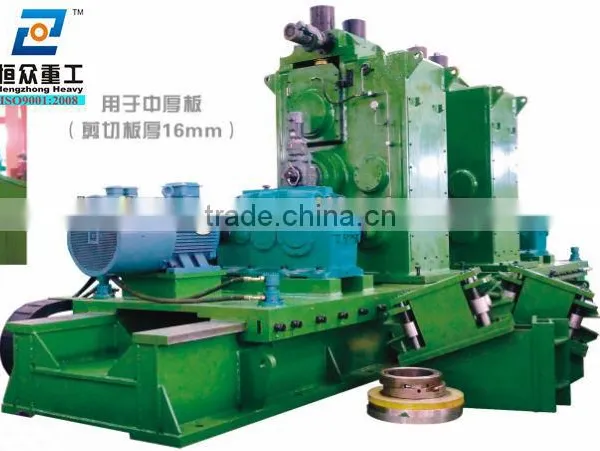

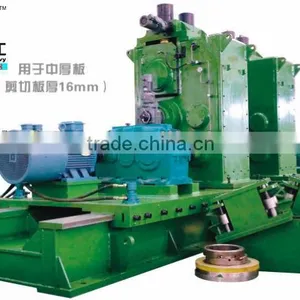

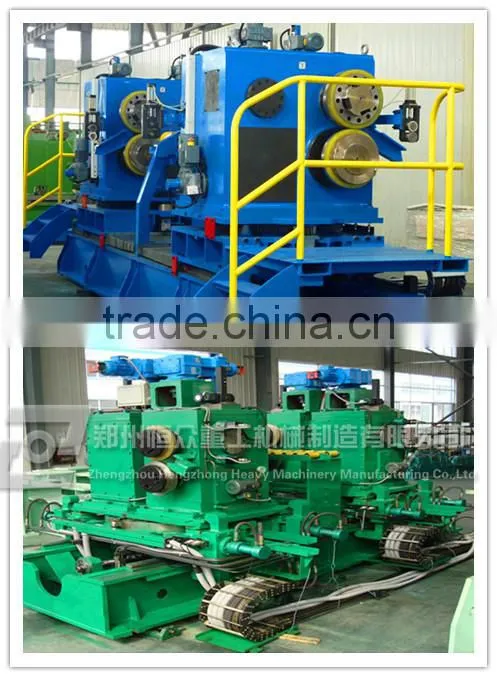

Supplying Aluminum Hot Rolling Mill Side Shearing/ Cutting Rotary Shear
- 30 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
-
4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
-
Stainless steel handmade sink hydraulic power of light direct press
-
Stainless steel handmade sink R corner press machine Electrical box R corner press machine
-
DOING supply photovoltaic solar panels recycling machine
-
four-axis welding machine for commercial sink panel and bowl
-
Double Platform Stainless Steel Kitchen Equipment Polishing Machine
Product Details
| Place of Origin: | Henan, China | Brand Name: | HZZG | Model Number: | 6 x 1600 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Aluminum Hot Rolling Mill Side Shearing/ Cutting Rotary Shear is of high quality, high performance, high efficiency
1.Parameters of Rotary Shear
materials thickness | 0.08-5.0mm |
Maximum speed of circle shear | 500m/min |
product width | 3-5 mm |
Radial run-out of blade shaft | below 0.01mm |
Axial run-out of blade shaft | below 0.005mm |
Face run-out | below 0.003mm |
Parallelism of blades shafts | below 0.01mm |
Overlap | below 0.02mm |
2.Rotary Shear Blueprint
3.Technical Parameters
Shearing Speed | 30--180m/min |
Chuck Diameter | 350--400 |
Chuck Opening Degree | 700--1350mm |
Blade Thickness | 35--40mm |
Blade Material | 6CrW2si |
Blade Shaft Material | 42CrMo |
Shearing Variables | Min 5mm Max 35mm(unilateral) Max 35mm(unilateral) |
Shearing Steel Strip Thickness | 1.5--5mm |
Blade Overlap Ajustment Precision | ±0.03mm
|
Blade Clearance Adjustment Precision | ±0.005mm |
4.Patents our Rotary Shears have got:
Change blades swiftness patent
Wide strip edge cutting patent
Should any of our concrete products be of your interest, please feel free to contact me, I am ready to provide you any information that you concern. I am looking forward to establishing long term business relationship with you!
skype id:rosalynduan
qq:1185610798
mobile:008615137182943
