Specifications

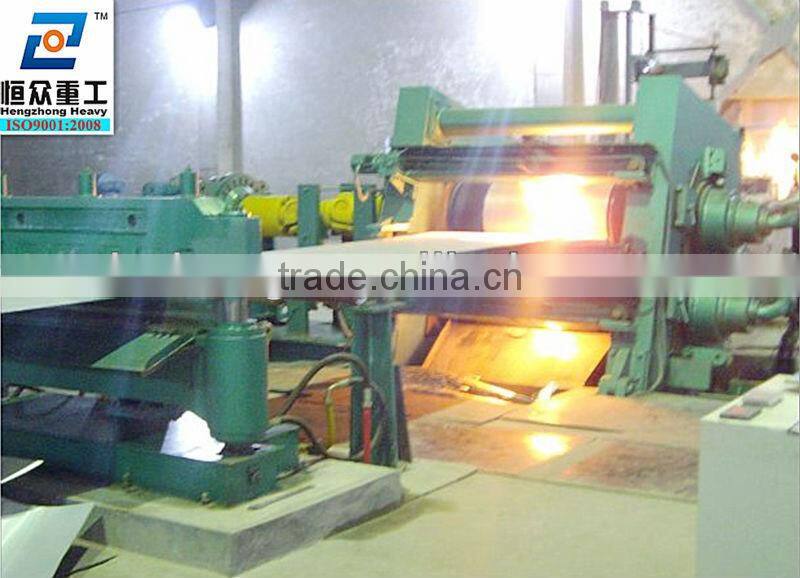

Metal Cutting Tool Rotary Shear Machinery is of high quality ,high performance and high precision.1. Technical Parameters
Shearing Speed | 30--180m/min |
Chuck Diameter | 350--400 |
Chuck Opening Degree | 700--1350mm |
Blade Thickness | 35--40mm |
Blade Material | 6CrW2si |
Blade Shaft Material | 42CrMo |
Shearing Variables | Min 5mm Max 35mm(unilateral) Max 35mm(unilateral) |
Shearing Steel Strip Thickness | 1.5--5mm |
Blade Overlap Ajustment Precision | ±0.03mm
|
Blade Clearance Adjustment Precision | ±0.005mm |
2.Rotary Shear Blueprint

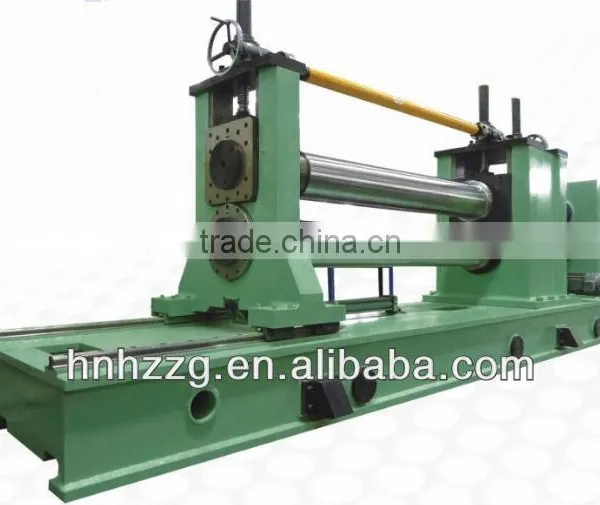

3.Rotary Shearing Unit
Specifications and models | thickness | width | Coil weight | Finished products width | Shearing number | Shearing speed |
2X1600 | 0.3-2mm | 900-1550mm | 30T | ≥40mm | ≤20 | 60m/min |
4X1600 | 0.5-4mm | 900-1550mm | 30T | ≥60mm | ≤13 | 50m/min |
6X1600 | 1-6mm | 900-1550mm | 30T | ≥60mm | ≤10 | 40m/min |
8X1800 | 2-8mm | 900-1800mm | 30T | ≥70mm | ≤6 | 30m/min |
10X2000 | 3-10mm | 900-2000mm | 30T | ≥80mm | ≤5 | 25m/min |
12X2000 | 3-12mm | 900-2000mm | 30T | ≥100mm | ≤5 | 20m/min |
4.About our company
We are Zhengzhou Hengzhong Heavy Machinery Manufacturing Co., Ltd. It is an aluminum equipment company which integrates design, manufacture and installation. Our company has strong technical force advanced production capacity and high quality after-sale service. The products have been recongnized and appreciated by both the old and the new customers. Now, our products have been sold very well all over China and have been exported to the Middle East. It makes us one of the best leaders in aluminum processing equipment industry.
5.About our concrete products
1. Aluminum Casting Machine 2. Aluminum Cold Rolling Mill
3.Aluminum Foil Rolling Mill 4.Tension Leveling Line
5.Cut-to-length-line
6.Rotary Shear
Should any of our Rotary Shear be of your interest, please feel free to contact me, I am ready to provide you any information that you concern. I am looking forward to establishing long term business relationship with you!
