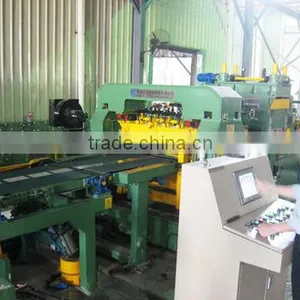

High Speed and High Precision Aluminum Strip Tool Cutting to Length Line

Specifications

(1)high speed
(2)high efficiency
()3guaranteed quality,
(4)high precision
(5) competitive price

 1.Components

     The Aluminum Strip Tool Cutting to Length Line is special equipment for uncoiling,leveling,cutting and stacking the aluminum sheet according to the requirments of clients. It i consists of uncoiler, leveling system,feeding system, cutting system, conveying system, stacking system etc.

2. Technical parameters of Flying Shearing Line

Material	aluminum and its alloy
Strip thickness	0.3~12 mm
Strip width	600~2150 mm
Weight of entry coil	5000~25000 kg
Width of cutting	550~2100 mm
Length of cutting	600~6000 mmm
Stacking sheet height	500 mm
Line speed	60~100 m/min
Frenquency of cutting	10 times/min

3.General introduction

       The Aluminum Strip Tool Cutting to Length  Line is widely used in cold and hot rolling aluminum.The line can be adjusted, it has an encoder with high precision, and the whole line can work automatically and operate easily, then smooth sheet can be made.The machine is special for decoiling,leveling,cutting and stacking the aluminum sheet. It mainly consists of decoiler, leveling system, feeding system, cutting system, conveying system, stacking system and other compenents.

      In addition, we can design and manufacture diffrerent specificions according to different requirments of the client.



4.Features and advantages



 1. High reliability and high performance

 2.Self-centering guiding unit for perfect stacking

 3.Self-centering guid unit for perfect stacking

 4..can be customized according to the requirments of the demanders



    Should any of products be of your interest, please feel free to contact me, I am ready to provide you any information. I am looking forward to establishing long term business relationship with you!
