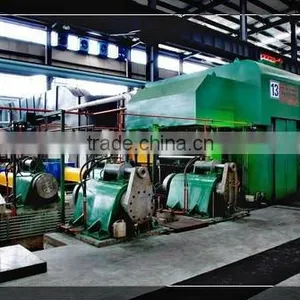

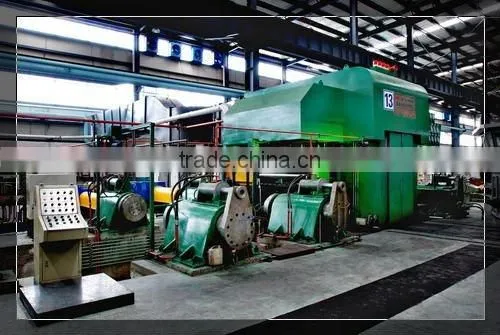

Aluminum Foil Rolling Mill
Product description
1.Speculations Of Aluminum foil roiling mill
This aluminum foil rolling mill is used for aluminum foil rolling,processing and refining.
(1). Aluminum foil rolling mill has an advanced hydraulic pressure on the thickness of the automatic control system (AGC).
(2). Piecewise controlled cooling system .
(3). Advanced pre-coated plate filtration system.
(4). Automatic and manual controlled CO2 fire extinguishing system.
(5). Full digital control and network communication, aim to provide control accuracy and reliability.
(6). Advanced engineering workstations.
(7). The roller bearing of aluminum foil rolling mill use a four-row cylindrical roller bearings and oil mist lubrication.
(8). 12 inch color LCD operator terminals, easy to operate and display.
2.Technical Parameters Of Aluminum Foiling Rolling Mill
Aluminum alloy |
1000,3000,8000 series |
Entry thickness |
0.6 max mm |
Dia. of working roll |
200~320mm |
Width of work roller |
800~2300mm |
Dia. of back up roll |
Φ550~850mm |
Width of back-up roller |
750~2250mm |
Weight of coil |
30000 max kg |
Foil rough-rolling thickness |
0.40~0.012mm |
Thickness of foil rolling(double sheet) |
0.1~0.006mm |
Rolling speed |
2000 max m/min |
Exit of AL foil width |
700~2080 mm |
Rolling form |
Non-reversing |
ABB electric control system |
SIMENS OMRON |
About us
Zhengzhou Hengzhong Heavy Machinery Manufacturing Co., Ltd. is specialized in the design & manufacture of aluminum equipment. We can also undertake the design and manufacture of other non-ferrous metal equipment. Our concrete products include such as cold rolling mill, aluminum casting machine , aluminum foil rolling mill, tension leveling line, cut to length line, aluminum cleaning line, cast roll, cast roller, steel sleeve, aluminum-related. We can undertake the mechanical, hydraulic & electrical upgrading of the above equipment.
We cordially welcome friends all over the world. We are looking forward to having the chance of cooperating with you in the near future.
CONTECT US:
TEL:86-0371-64100199
FAX:86-0371-64100299
Zhengzhou Hengzhong Heavy Machinery Manufacturing Co.,Ltd.
