Specifications
1.High quality and performance2.Best after-sale service
3.Easy installation
4.Automatic operation
5.ISO9001 & power savings

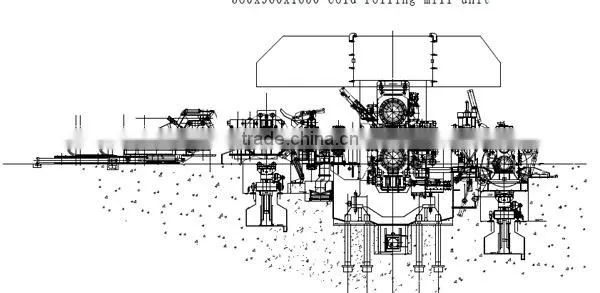

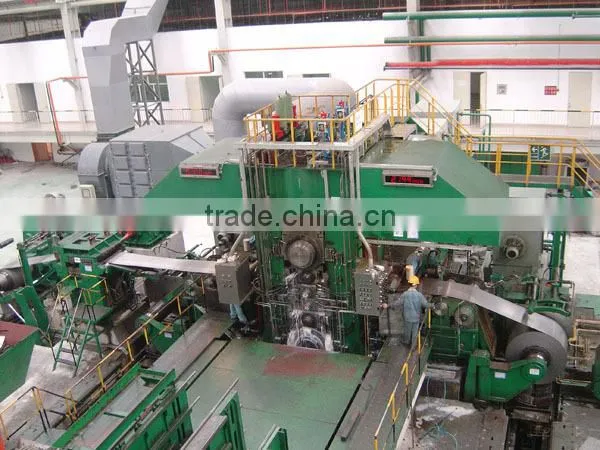

Non-reversing Cold Rolling Mill Machinery for Thin Aluminum Strip Production Line
Aluminum alloy | 1000,3000,8000 series |
Entry thickness | 10Max mm |
Entry width | 1000~2300mm |
Dia. of work roll | Φ280~560 mm |
Width of work roller | 850~2500 mm |
Dia. of back-up roll | Φ600~1500 mm |
Width of back-up roller | 800~2450 mm |
Width of exit | 950~2250 mm |
O.D. of coil | Φ2500 max mm |
Weight of coil | 20000 max kg |
Rolling speed | 1000max mm/min |
Rough rolling exit thickness | 0.1~4.0 mm |
Finishing rolling exit thickness | 0.5~0.06 mm |
Rolling mode | Non-reversing |
ABB Electric control system | SIEMENS OMRON |
Model type | Φ280/φ780×1450 |
Φ380/φ960×1650 | |
Φ420/φ1100×1850 | |
Φ460/φ1300×2300 |
2.Technical Introduce
Aluminum strip continuous casting and rolling process is an advanced production technology, which is imported in the eighties. The basic process: Aluminum Ingot→ Melting Furnace → Static Furnace→Removal Of Gas→Filter→Tip→Rolling Mill→Intermediate Unit→ Coiling Machine.
3.Introduction of Hengzhong Heavy:
Zhengzhou Hengzhong Heavy Machinery Manufacturing Co., Ltd. is an aluminum equipment company, which integrates design, manufacture and installation. Our company has a strong technical force, advanced production capacity and high quality after-sale service team. The products have been appreciated & recognized by the old and new customers.
