3000 Series Aluminum Coils/Strips Cold Rolling Mill
- QIngdao
- T/T
You May Like
-
8000 Series Aluminum Plates/Coils Cold Rolling Mill
-
1450mm reversible aluminum cold rolling mill for sales
-
aluminum rolling mill , aluminum cold rolling mill for sales
-
aluminum equipment/machine , aluminum cold rolling mill for sales
-
casting mill , aluminum cold rolling mill for sales
-
aluminum cold rolling mill for reducing the thickness of aluminum sheet
Product Details
| Condition | New | Type | Cold Rolling Mill | |
| Place of Origin | Henan, China | Model Number | 380/960/1650 | |
| Certification | ISO9001:2008 | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
(1) applied in aluminum industry(2) hydraulic system
(3) easy installation and stable performance
Technical parameters
Aluminum Cold Rolling Mill is used for rolling up to 10mm casting coils into 0.1-4 mm through thickness and 0.5-0.6mm finishing rolling coils
The Cold Mill is equipped with advanced AGC hydraulic automatic thickness control system,
and with perfect plate type and control means. It also can provide tilt roll, the positive and negative
bending control of working roll, a variety of control means of roll segmented colling thus making the
finished products with precision thickness and precision plate type .This machine model is also
equipped with all kinds of perfect auxiliary system, such as automatic CO2 fire extinguishing system
with high safety and reliability, lubricating system, dry air purging device, smoke recycling equipment,
etc, all these auxiliary provide a reliable guarantee of producing high quality of finished products.
Aluminum alloy | 1000,3000,8000 series |
Entry thickness | 10Max mm |
Entry width | 1000~2300mm |
Dia. of work roll | Φ280~560 mm |
Width of work roller | 850~2500 mm |
Dia. of back-up roll | Φ600~1500 mm |
Width of back-up roller | 800~2450 mm |
Width of exit | 950~2250 mm |
O.D. of coil | Φ2500 max mm |
Weight of coil | 20000 max kg |
Rolling speed | 1000max mm/min |
Rough rolling exit thickness | 0.1~4.0 mm |
Finishing rolling exit thickness | 0.5~0.06 mm |
Rolling mode | Non-reversing |
ABB Electric control system | SIEMENS OMRON |
Model type(cold rolling machine) | Φ280/φ780×1450 |
Φ380/φ960×1650 | |
Φ420/φ1100×1850 | |
Φ460/φ1300×2300 |
Conrete products show

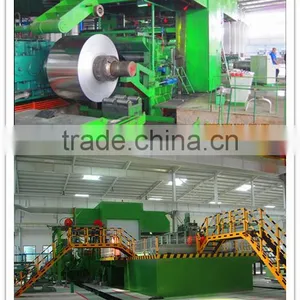

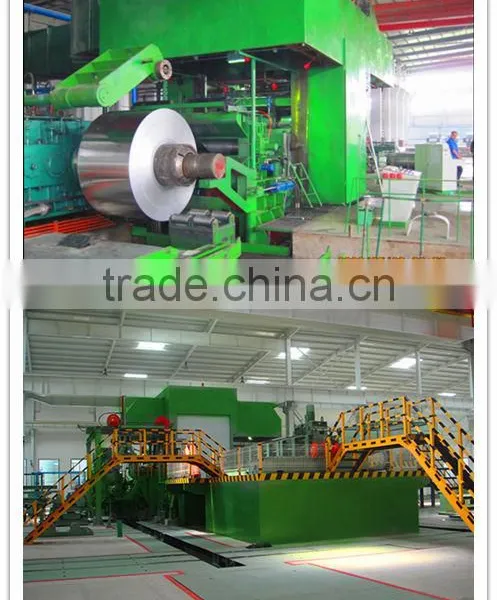

Workshop show
Should any of our Cold Rolling Mill be of your interest, please feel free to contact me, Looking forward to establishing long term business relationship with you!
