small laboratory powder crusher machine

Specifications

1. used in building materials, metallurgical, chemical,cement
2. high yield, low energy cost.
al, oil, gas can be used as

Company introduction

Zhengzhou Xinguang Mining Machinery Manufacturing Co., Ltd was founded in the 1980s, now has become a group company which own many branches in China and abroad. As a professional mining machinery manufacturer, we provides complete sets of mine selection machines, sand making equipment, cement making equipment, and compound fertilizer equipment, with a production capacity ranging from five tons to five thousand tons per day



Introduction:

 Rotary dryer is mainly used for drying materials with some moisture and granularity in ore beneficiation, building material, metallurgy and chemical department. Rotary dryer has high adaptability to the materials so that it can be used for drying all kinds of materials, and in addition, the operation of this equipment is simple and reliable, for this reason, it gets wide application.



Operational Scene

The heat source of the rotary dryer comes from the combustion device and this dryer uses co-current heating method, so that when the materials to be dried go into the cylinder from the feeding box or feeding chute, they are pushed back by the spiral lifting board. Since the rotary dryer is obliquely installed, the materials flow to the lower end of the machine under the gravity and the rotation of the machine, and on the other hand, the materials are repeatedly lifted by the lifting board to the higher end and then spread down constantly, so that the materials will form a even curtain inside the cylinder and conduct heat exchange with the hot air inside the cylinder. Since the materials constantly spread and the water contained in them will be dried, thus achieving the aim of drying.



Fittings



Machine structure: This machine is mainly composed of rotary part, lifting board, transmission part, supporting part and seal ring.



Wearing Parts:shell, riding ring, material lifters, support roller, thrust roller, drive motor, gear









Scene picture



This is a cement production line. It includes the crushing and pre homogenization, homogenization of raw material preparation, preheating decomposition, cement clinker, cement grinding, drying and packaging process.

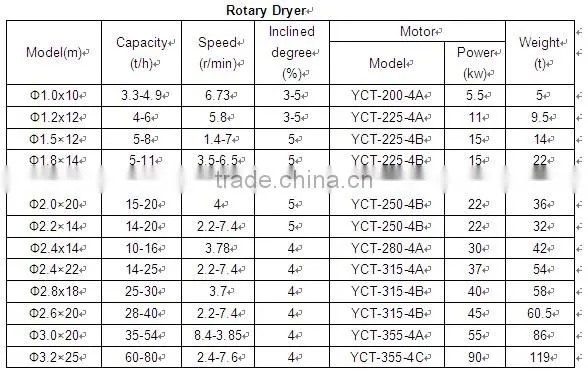

Technical Data
