Specifications
Xinguang agitating vessel1.high efficiency
2.fine performance and maintenace
3.easy and safe operation
4.ISO9001-2000

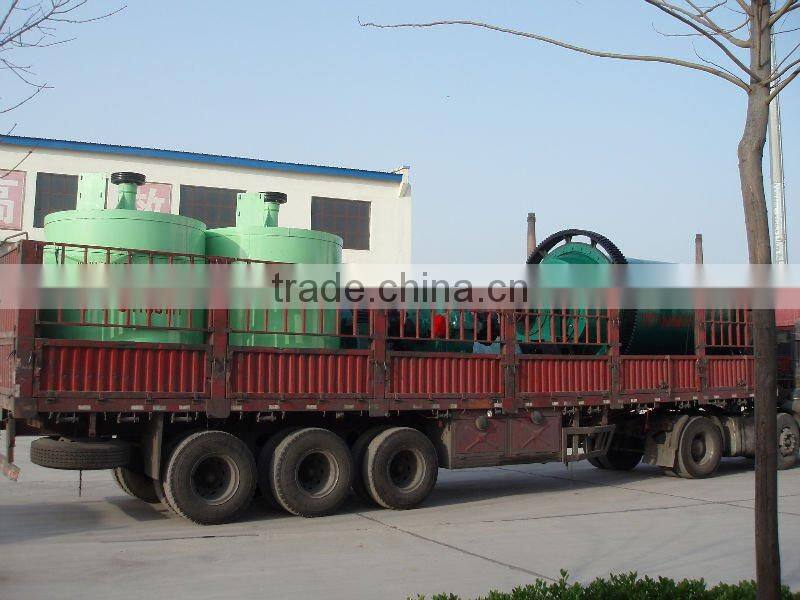

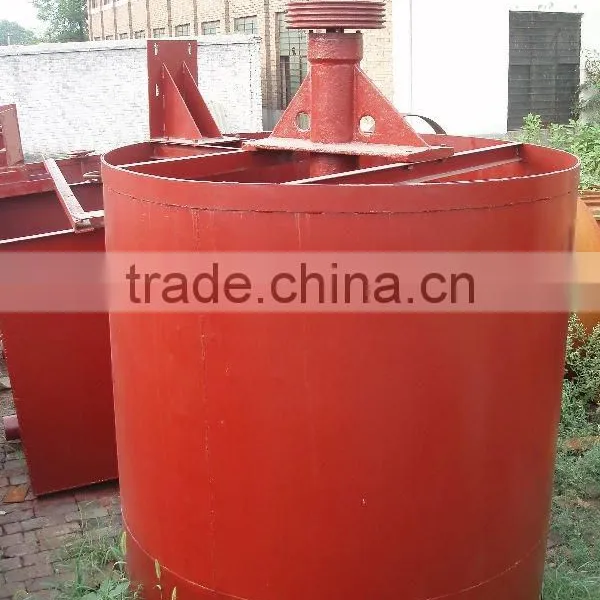

Xinguang agitating vessel
Detailed description:
Use: Mineral agitation barrel is used for mixing pulp before the flotation process , causes the pulp and medicament mixed intensively , creates condition for the Mine selection working .
Blender for ore expoiting ,suitable for blending various kinds of metal and nonmetal ores , is mainly used to blend medicament and ore magma before flotation . It is application for the material whose maximum concentration is 30% and whose granularity is less than 1mm . It has a cylindrical radial circulation mechanical blending form with the spiral impeller and flatbottom
Inner size of bucket |
Effective volume
m3 |
Blender |
Motor(kw) |
Size appearance(mm) |
Weight (kg) |
||||
|
Diameter mm |
Height mm |
Diameter mm |
Speed mm |
Model |
Power kw |
Height mm |
Max length mm |
||
500 |
500 |
0.078 |
150 |
690 |
Y802-4 |
0.8 |
874 |
720 |
110 |
750 |
750 |
0.26 |
240 |
530 |
Y90L-4 |
1.5 |
1241 |
939 |
228 |
1000 |
1000 |
0.58 |
240 |
530 |
Y100L-6 |
3 |
1665 |
1300 |
685 |
1500 |
1500 |
22 |
400 |
320 |
Y132S-6 |
5.5 |
2386 |
1690 |
861 |
2000 |
2000 |
5.46 |
550 |
230 |
Y132ML-6 |
7.5 |
3046 |
2381 |
1240 |
2500 |
2500 |
11.2 |
625 |
230 |
Y160M-6 |
11 |
3546 |
2881 |
3462 |
|
3000
|
3000 |
19.1 |
700 |
210 |
Y200L-6 |
22 |
4325 |
3266 |
4296 |
