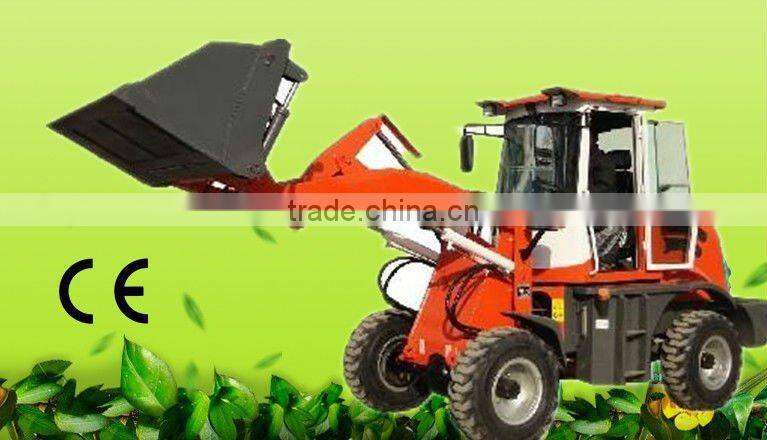

Help CenterHot Sell Mini Loader Machine ZL-16 Heavy Equipment ,farm Machine
Related Products
-
CE Mini Wheel Loader ZL16f With Xinchai Engines(Euro III)US$ 6,000 - 8,000MOQ: 1 Set -
China Made Wheel Loader ZL16f Mini Shovel Loader for SaleNegotiableMOQ: 1 Set
-
Hydrostatic Steering 1.5T Small Loader ZL16 With CEUS$ 3,000 - 9,000MOQ: 1 Set
-
Chinese Agricultural Machinery China Minibagger 1 5NegotiableMOQ: 1 Set
-
Zl-15f Wheel Loader With CE, Snow Bucket, Joystick, Cab HeaterUS$ 3,000 - 9,000MOQ: 1 Set
Specifications
1.High quality loader machine ZL-16 Euro III2.Powerful engine can be choosed
3.rated load : 1.6 TON .
lor can be choose
Main features:
1. All parts are made of high quality materials.
2. Streamlined design, elegant appearance.
3. Optimized by CAD, the bucket can be leveled automatically at high position; the bucket cylinder can only be tipped in one direction; “Z” –type connecting rod, tremendous shoveling and digging force.
4. Split type engine and gearbox, with reliable performance.
5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.
6. Fully hydraulic steering system, reliable and durable, easy and convenient operation and maintenance.
7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.
8. There are various of options for customers’ selection.
1.High quality wheel loader ZL-16 Euro III
2.Powerful engine can be choosed
3.rated load : 1.6 TON .
lor can be choose

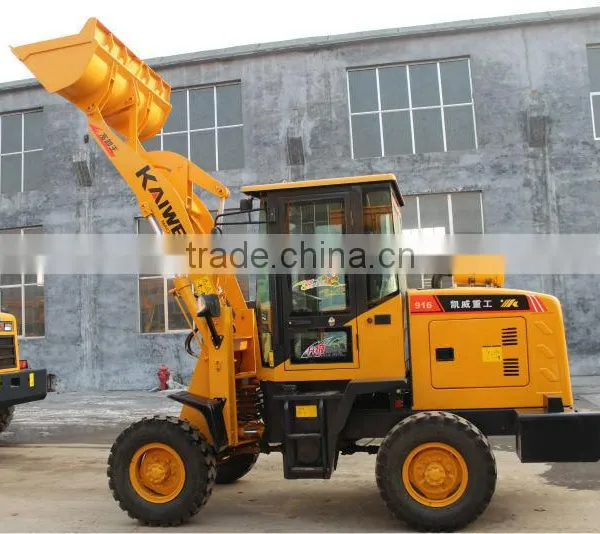

ZL16 wheel loader
| Specification | overall weight(kg) | 3800 |
| L×W×H(mm) | 5200X1800X2550 | |
| Rated bucket capacity(m3) | 0.75 | |
| Rated load(kg) | 1600 | |
| dump height (mm) | 2750 | |
| Bucket indicator | YES | |
| Max. breakout force(KN) | 43 | |
| Engine | Brand and modle | weichaidongfeng490 |
| Type | Four strokes, Water cooling, Inline, injecting combustion chamber |
|
| Rated power(kw) | 39 | |
| Rated speed(r/min) | 2200 | |
| Transmission system | Model of torque converter | YJ240 |
| Type | single-phase single-stage radial-inward turbine triplex | |
| Gearbox type | Fixed-spindle power shift | |
| Gear shift | 2 gears ahead,2 gear astern | |
| Hydraulic system | Distribution of work valve | ZL20B |
| Working pump | CBGj1045,CBGq1018 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 27±1° | |
| Min turning radius(mm) | 3000 | |
| Brake system | Brake type | Oil brake(Vacuum booster) |
| Tire | Standard tire | 14/90-16 |
