Home > Products > ZL Series wheel loader > hydrostatic steering 1.5T Small Loader ZL16 with CE

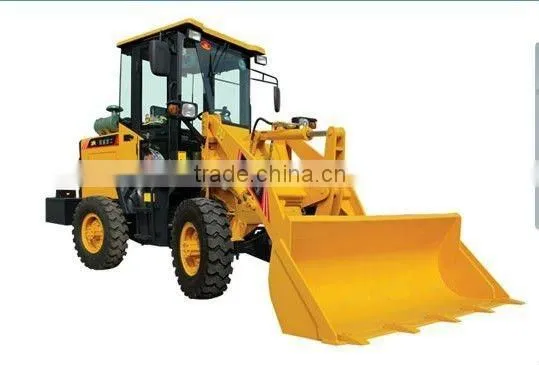

hydrostatic steering 1.5T Small Loader ZL16 with CE

FOB Price

USD $3,000 - $9,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	KAIWEI
Model Number	zl16f	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	5100x1680x2650	Rated Load	1500KG

Product Description

Specifications

1.Streamlined design
2.with xinchai490 engine
3.Reliable quality
4.Excellent price
5. joystick, pallet fork, cotton fork

Main features:

1. All parts are made of high quality materials.

2. Streamlined design, elegant appearance.

3. Optimized by CAD, the bucket can be leveled automatically at high position; the bucket cylinder can only be tipped in one direction; “Z” –type connecting rod, tremendous shoveling and digging force.

4. Split type engine and gearbox, with reliable performance.

5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.

6. Fully hydraulic steering system, reliable and durable, easy and convenient operation and maintenance.

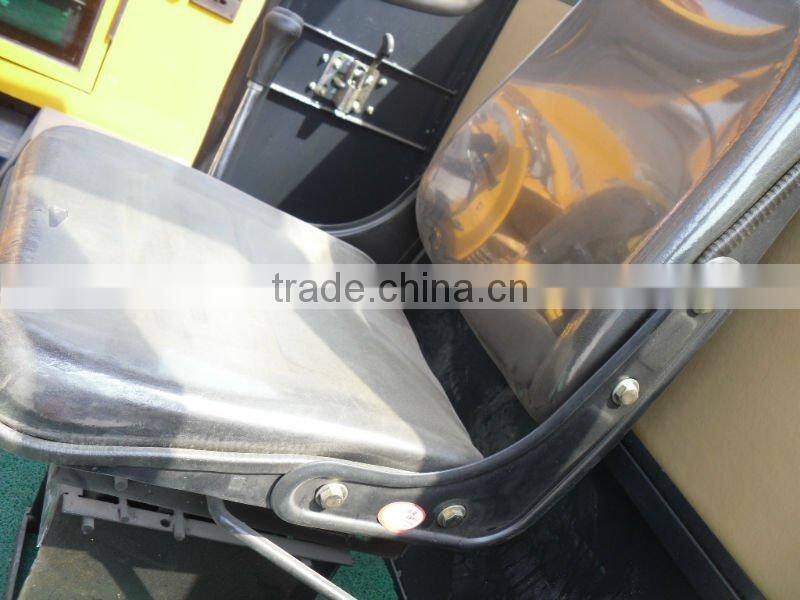

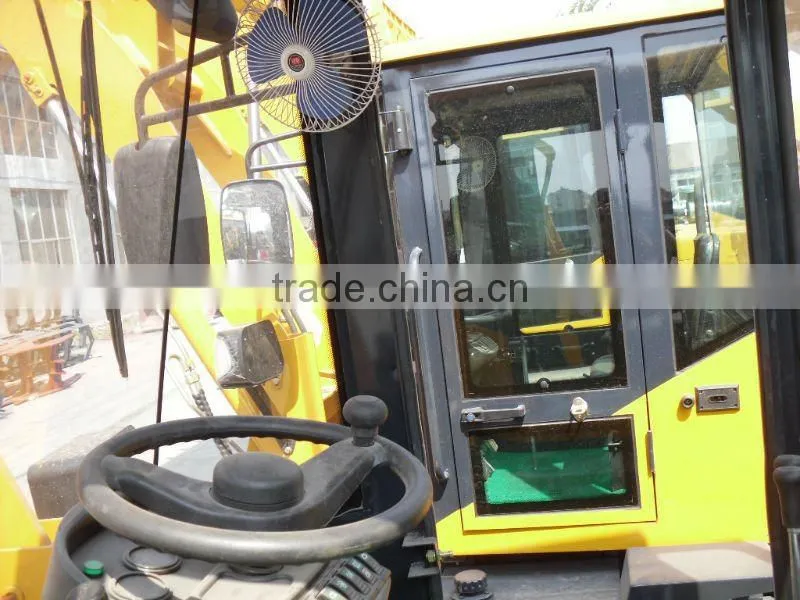

7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.

8. There are various of options for customers’ selection.

Specification	overall weight(kg)	3600
	L×W×H(mm)	510016802650
	Rated bucket capacity(m3)	0.7
	Rated load(kg)	1500
	dump height (mm)	2750
	Bucket indicator	YES
	Max. breakout force(KN)	43
Engine	Brand and modle	xinchai490/Xinchai498(EuroIII)
	Type	Four strokes, Water cooling, Inline, injecting combustion chamber
	Rated power(kw)	37
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ240
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	Oil brake(Vacuum booster)

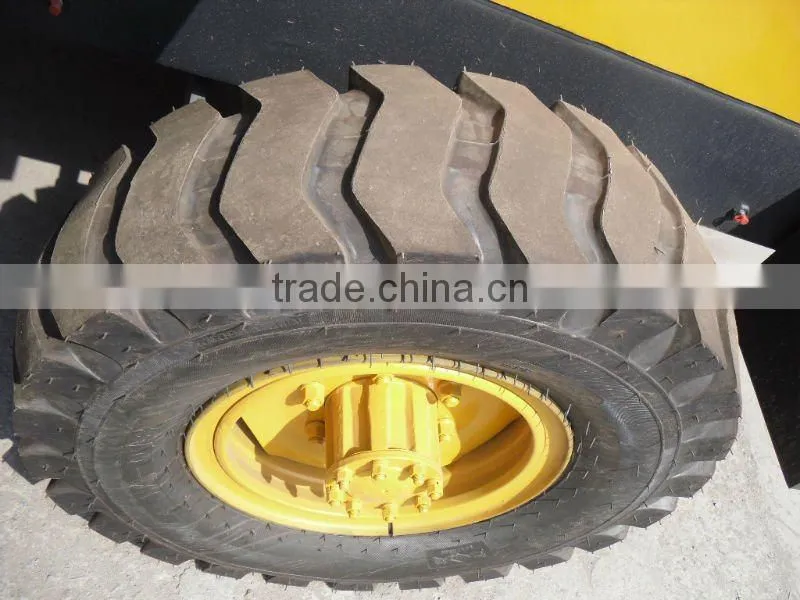

Tire	Standard tire	14/90-16
Tire	Optional wide tyres	12-16.5 ;14-17.5

Technical parameter table:
