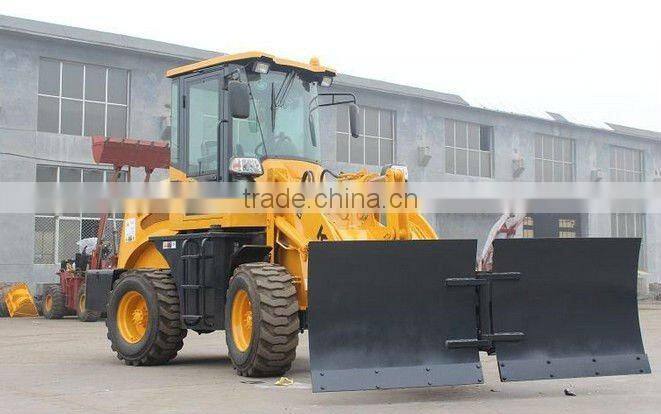

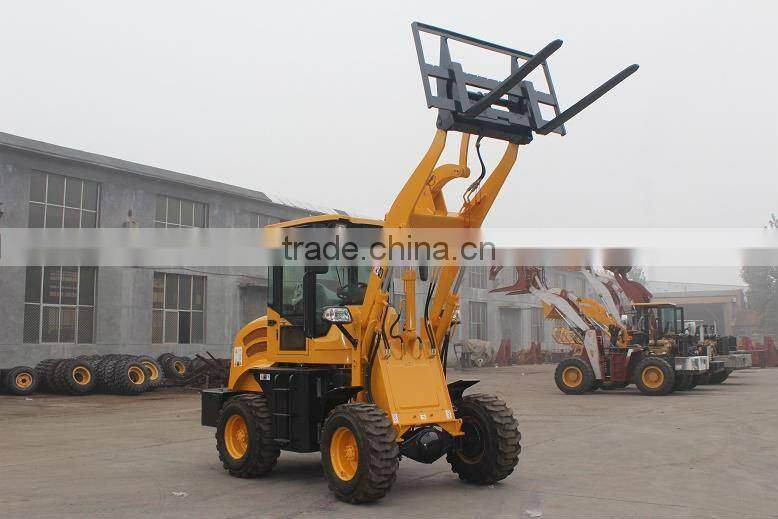

915 Arm Loader With Quick Change and Joystick Front End Loaders for Sale
- Qingdao
You May Like
-
Zl15 Mining Equipment With Euro III Xinchai498 for Quicken Mini Loaders
-
High Quality ZL15F Mini Wheel Loader With CE Certificate
-
ZL15F Euro III Engine New Style Good Hotsell Finland Sweden German Hydromechanical Transmission System Articulated Loader
-
CE Track Loader Zl-15 With Pallet Fork,air Conditioning,mini Loader 4x4
-
Consutruction Machine ZL15F Wheel Loader With CE
-
2016 New Style 1500KG Small Wheeled Loader With Xinchai 490 Euro Iii Engine.joystick.
Product Details
| Condition | New | Brand Name | KAIWEI | |
| Model Number | ZL15F | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 5100X1680X2650 | Rated Load | 1500KG | |

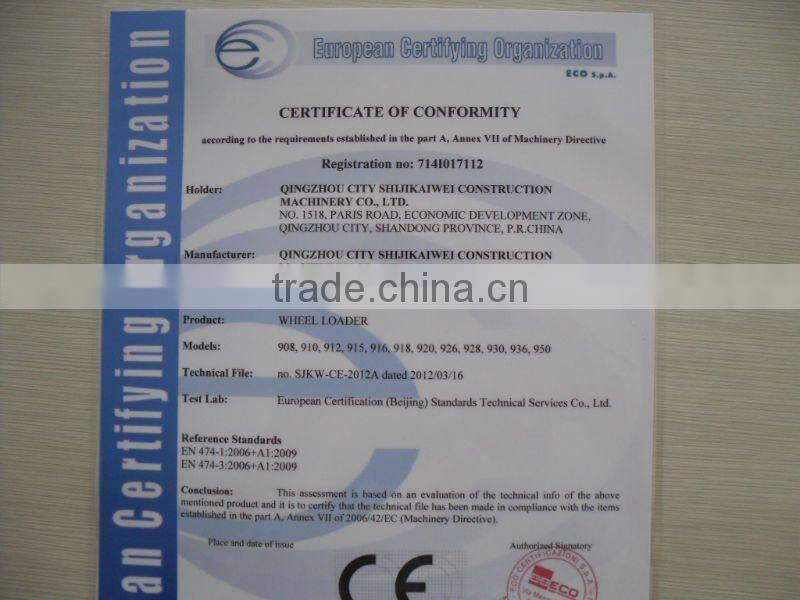

| Certification | CE, CE certification | Warranty | one year |
Product Description
Main features:
1. All parts are made of high quality materials.
2. Streamlined design, elegant appearance.
3. Optimized by CAD, the bucket can be leveled automatically at high position; the bucket cylinder can only be tipped in one direction; “Z” –type connecting rod, tremendous shoveling and digging force.
4. Split type engine and gearbox, with reliable performance.
5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.
6. Fully hydraulic steering system, reliable and durable, easy and convenient operation and maintenance.
7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.
8. There are various of options for customers’ selection.
Bitmap Bitmap
| |||||
| Specification | overall weight(kg) | 3600 | |||
| L×W×H(mm) | 5100X1680X2550 | ||||
| Rated bucket capacity(m3) | 0.7 | ||||
| Rated load(kg) | 1500 | ||||
| dump height (mm) | 2750 | ||||
| Bucket indicator | YES | ||||
| Max. breakout force(KN) | 43 | ||||
| Engine | Brand and modle | Changchai4L68/xinchai498 /490 EuroIII | |||
| Type | Four strokes, Water cooling, Inline, injecting combustion chamber | ||||
| Rated power(kw) | 37 | ||||
| Rated speed(r/min) | 2200 | ||||
| Transmission system | Model of torque converter | YJ240 | |||
| Type | single-phase single-stage radial-inward turbine triplex | ||||
| Gearbox type | Fixed-spindle power shift | ||||
| Gear shift | 2 gears ahead,2 gear astern | ||||
| Hydraulic system | Distribution of work valve | ZL20B | |||
| Working pump | CBGj1045,CBGq1018 | ||||
| Steering system | Type | Articulated hydraulic steering | |||
| Max. turning angle | 27±1° | ||||
| Min turning radius(mm) | 3000 | ||||
| Brake system | Brake type | Oil brake(Vacuum booster) | |||
| Tire | Standard tire | 14/90-16,12-16.5 | |||
| Optional wide tyres | 14-17.5 | ||||
