Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > Consutruction Machine ZL15F Wheel Loader With CE

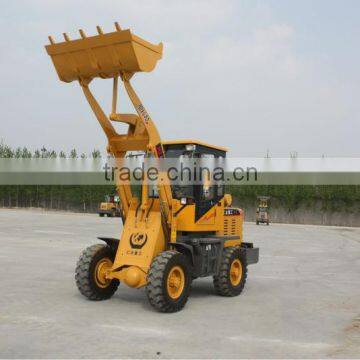

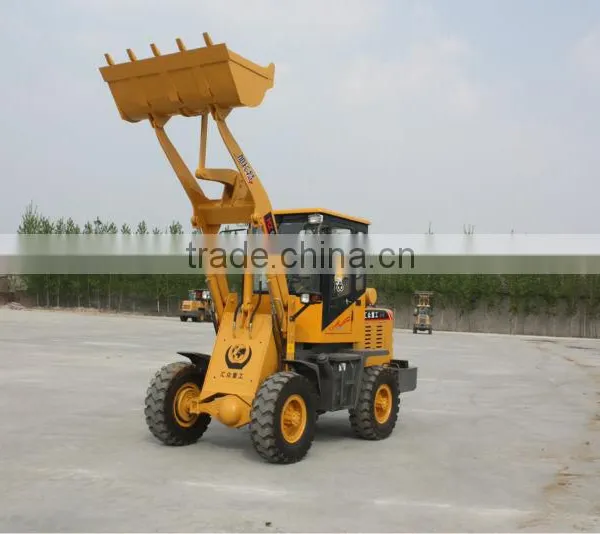

Consutruction Machine ZL15F Wheel Loader With CE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Kaiwei
Model Number:
ZL15F
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 New Style 1500KG Small Wheeled Loader With Xinchai 490 Euro Iii Engine.joystick.US$ 7,000 - 9,000MOQ: 1 Set -
15F Wheel Loader Euro 3 With Pallet Fork ,wood GraspUS$ 5,000 - 9,000MOQ: 1 Set
-
1.5 Ton Tractor Loader Hydraulic Cylinder Standard BucketUS$ 6,000 - 9,000MOQ: 1 Set
-
Small Tractor Loader ZL-15F Euro III Xinchai 490/498US$ 6,000 - 9,500MOQ: 1 Set
-
High Tire 4WD ZL-15F Weifang WheelloaderUS$ 6,000 - 9,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Kaiwei
Model Number
ZL15F
After-sales Service Provided
Overseas third-party support available
Main features:
1. All parts are made of high quality materials.
2. Streamlined design, elegant appearance.
3. Optimized by CAD, the bucket can be leveled automatically at high position; the bucket cylinder can only be tipped in one direction; “Z” –type connecting rod, tremendous shoveling and digging force.
4. Split type engine and gearbox, with reliable performance.
5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.
6. Fully hydraulic steering system, reliable and durable, easy and convenient operation and maintenance.
7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.
8. There are various of options for customers’ selection.
| |||||
| Specification | overall weight(kg) | 3600 | |||
| L×W×H(mm) | 5300X1800X2680 | ||||
| Rated bucket capacity(m3) | 0.7 | ||||
| Rated load(kg) | 1500 | ||||
| dump height (mm) | 2750 | ||||
| Bucket indicator | YES | ||||
| Max. breakout force(KN) | 43 | ||||
| Engine | Brand and modle | Changchai4L68/xinchai498 /490 EuroIII | |||
| Type | Four strokes, Water cooling, Inline, injecting combustion chamber |
||||
| Rated power(kw) | 37 | ||||
| Rated speed(r/min) | 2200 | ||||
| Transmission system | Model of torque converter | YJ240 | |||
| Type | single-phase single-stage radial-inward turbine triplex | ||||
| Gearbox type | Fixed-spindle power shift | ||||
| Gear shift | 2 gears ahead,2 gear astern | ||||
| Hydraulic system | Distribution of work valve | ZL20B | |||
| Working pump | CBGj1045,CBGq1018 | ||||
| Steering system | Type | Articulated hydraulic steering | |||
| Max. turning angle | 27±1° | ||||
| Min turning radius(mm) | 3000 | ||||
| Brake system | Brake type | Oil brake(Vacuum booster) | |||
| Tire | Standard tire | 14/90-16,12-16.5 |
|||
| Optional wide tyres | 14-17.5 | ||||
