Product Name: Horizontal Sliding Door Built-in Water Tank Autoclave Vertical Standing Top Loading Automatic Autoclave - Bluestone Autoclaves

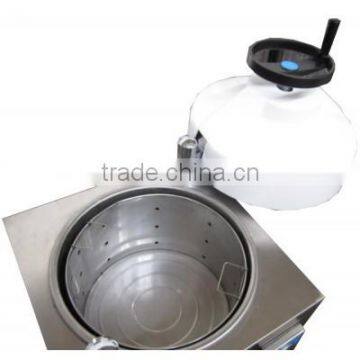

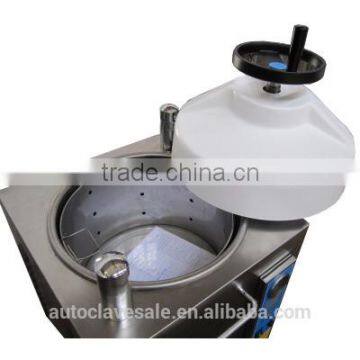

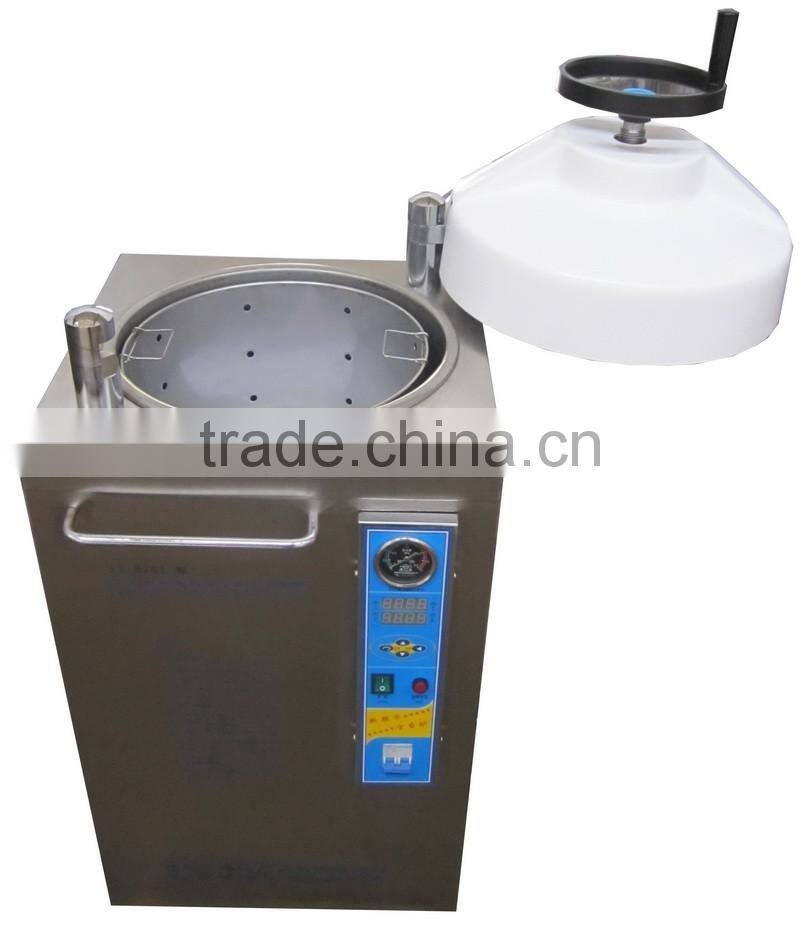

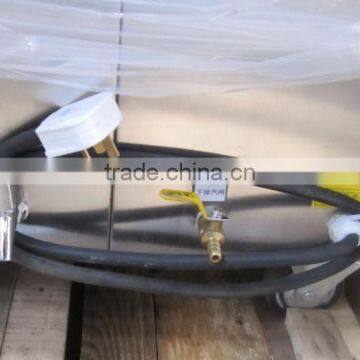

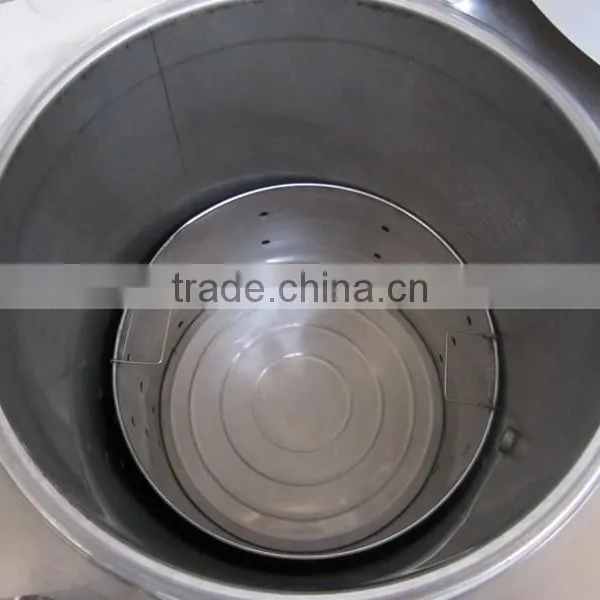

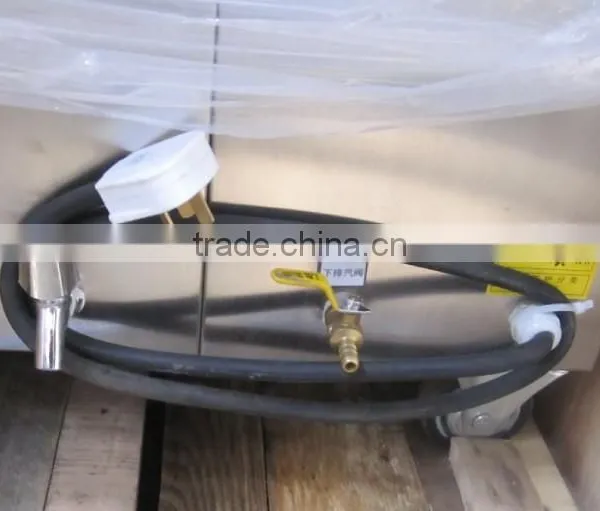

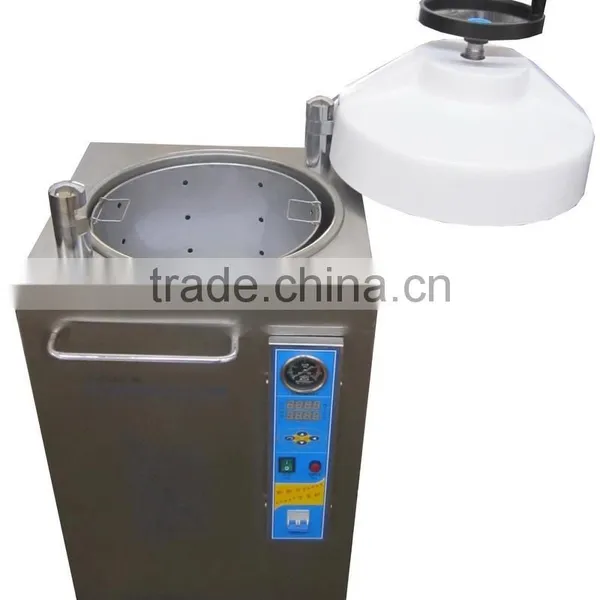

Product Pictures:
Product Characteristics:
1. Temperature rise, exhausting air, temperature control, discharge steam by microprocessor control system2. Digital display, touch-key switch, time and temperature can be displayed.
3. Have protector for exceed temperature, exceed pressure and electric leakage
4. The program will be stopped if water level lower than the low limit.
5. Quick door open structure, Horizontal sliding door
6. Safety and interlock device: The door can't be open if exceed pressure
7. Built-in water tank. Steam and water inner cycle system, no external water source, not exhaust steam outside, environment is clean and dryness available.
8. Automatic control the processes of heating, sterilization, steam exhaust and dryness.
9. Material made by SUS304 stainless steel.
10. Silicone rubble for seal
11. Timer range: 0-999min
12. The buzzer alarms when a cycle of operation is completed.
Heating Type: Direct heating by immersed copper tubes of heating elements.
Control: PLC control technique, touch-key.
Safety devices:
Over current protector.
1. Auto protection device against over temperature: Cut off power automatically if the over-temperature is surpassed.
2. Door safety interlock: The horizontal sliding door can't be opened until there is no pressure in the chamber and power for heating can't be switched on until the door is firmly closed.
3. Safety valve of auto release against overpressureIt opens when the designed pressure is surpassed.
4. Heat insulation dock shelter: the door is made of high performance heat insulation material, not only beautiful but also prevents the operator to be injured.
Specification:
| Model | LX-BD35L | LX-BD50L | LX-BD75L | LX-BD100L |
| Volume | 35 Liters | 50 Liters | 75 Liters | 100 Liters |
| Sterilizing Chamber Volume | Ø280*H500 mm | Ø320*H610 mm | Ø388*H530 mm | Ø388*H670 mm |
| Working Pressure | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa |
| Max Working Pressure | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa |
| Working Temperature | 134°C | 134°C | 134°C | 134°C |
| Adjustment of Temperature | 105°C-134°C | 105°C-134°C | 105°C-134°C | 105°C-134°C |
| Timer Range | 0-999 Minutes | 0-999 Minutes | 0-999 Minutes | 0-999 Minutes |
| Heat Average | ≤± 1°C | ≤± 1°C | ≤± 1°C | ≤± 1°C |
| Power | 2.5 KW / AC220V 50Hz | 3.5 KW / AC220V 50Hz | 3.5 KW / AC220V 50Hz | 4 KW / AC220V 50Hz |
| Sterilizing Baskets | 1 PCS | 1 PCS | 2 PCS | 2 PCS |
| Product Dimension | 480*480*940mm | 500*510*1010mm | 580*600*1030 mm | 600*580*1160mm |
| Package Dimension | 570*550*1130mm | 570*550*1130mm | 570*550*1150mm | 620*600*1180mm |
| Gross Weight/Net Weight | 57 kg / 45 kg | 90 kg / 48 kg | 74 kg / 57 kg | 85 kg / 76 kg |
Use:
The product uses saturated steam to rapidly and efficiently sterilizer articles. It can be used in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc. to sterilizer medical equipment, surgical dressings, glass utensils, solutions, substrata. It can also be used as cooker in plateau areas and be used in make high quality drinking water in industrial and mining enterprises.
Price:
| Model | Retailer Price: | Wholesale Price? |
| LX-BD35L | USD1117.00/Unit | Enquiry Now to Get the Latest and Lowest Horizontal Sliding Door Autoclave Vertical Standing Wholesale Price Now, We can Help. |
| LX-BD50L | USD1629.00/Unit | |
| LX-BD75L | USD1950.00/Unit | |
| LX-BD100L | USD2385.00/Unit |
Want to Get More Discount Vertical Autoclave VA-FJ Pressure Steam Sterilizer Price? Please send an enquiry to us NOW!
Pre-sales
A. 24 hours online to ensure quick response to customer's inquiry
B. Guide customer to choose the most suitable machine model
C. Offer Detailed specification & Competitive prices
After-sales
A: Main machine, 2 years quality guarantee
B. Spare parts: 1 year guarantee. Free for any breakdown with convincing evidence
C: Response in 24 hours.
D: Email/ Free video/ phone guide
Autoclaves Certificates
Portable autoclave:
Table top autoclave:
Vertical autoclave:
Horizontal autoclave:
Anhui Sada Trading Co., Ltd. Is professional in supplier with steam sterilizer in China. Our product range widely covers table top autoclave ,vertical autoclave , horizontal autoclave ,plasma sterilizer ,etc.
We are supply medical equipments of high quality, competitive price& good after-service on long-term basis. Our products are certified with ISO & CE. Anhui Sada Trading Co., Ltd. has established its efficient worldwide network of marketing. In the past years, our products have been exported to Africa, South Asia, Eastern Europe, Southeast Asia, Mid East etc.
