Bench Top Class B Steam sterilizer- Bluestone Ltd. (2~24L)
Main Features of Bench Top Class B Steam sterilizer:
The newly-designed model with opening water tank on the top, strictly meets the standard of EN13060, which makes wash and cleaning much more convenient.
It adopts European B standard with 3-times pre-vacuum preceding vacuum drying. Residual humidity is less than 0.2%.
Vacuum measurement reaches-0.8bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, Whether solid or A-type hollow, whether with multi-apertures or inset pipes. It efficiently tides air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner.
Fuzzily computer controlled, digital bright show. The interface is modularized panel for easy operation.
It is installed with BOWIE&DICK which measures the penetration of water steam.
Mini printer can be attached to record the process of sterilization.
Main Specifications of Bench Top Class B Steam sterilizer TS-DDB:
| Model | TS-DDB2 | TS-DDB7 | TS-DDB10 | TS-DDB12 | TS-DDB16 | TS-DDV18 | TS-DDV24 |
| Capacity | 2L | 7L | 10L | 12L | 16L | 18L | 24L |
Sterilization Class | Class B | ||||||
Sterilization Temperature | 121℃, 134℃ | ||||||
Special Program | HIV, HBV long sterilization program | ||||||
| Dry System | Vacuum drying system | ||||||
| Display | High-light LED tube display | ||||||
Testing System | Bowie & Dick Test | ||||||
| Vacuum Test | |||||||
| Helix Test | |||||||
Control Precision | Temp.: 1℃ | ||||||
| Presure: 0.1bar | |||||||
| Optional | Mini printer | ||||||
Safety System | Relief valve | ||||||
| Hand lock door | |||||||
| Pressure lock system | |||||||
| Pressure or temperature over load protection | |||||||
| Alarm system | |||||||
Water Supply Syste | Build-in water tank, easy to clean | ||||||
| Tray Holder | SS basket, SS shelf | ||||||
Chamber | Medical stainless steel 304 | ||||||
| Max working pressure:2.3bar | |||||||
| Min working pressure: -0.9bar | |||||||
| Max temperature: 145℃ | |||||||
Operation Temperature | 5~40℃ | ||||||
| Noise | <50db | ||||||
Water consumption in one cycle | 0.12L~0.16L | 0.16L~0.18L | |||||
| Power supply | 110/220V±10%, 60/50Hz | ||||||
| Consumption | 1200W | 1400W | 1400W | 1400W | 1800W | 1500W | 1700W |
Chamber Size (mm) | φ88*175 | φ170*320 | φ192*320 | φ192×340 | φ240×360 | φ245×360 | φ245*470 |
External Size (mm) | 350*284*376 | 540*370*360 | 540*370*360 | 560*450*400 | 445*550*395 | 560*450*400 | 670*450*400 |
Packing Size (mm) | 415*345*441 | 615*440*425 | 615*440*425 | 660*525*495 | 670*550*500 | 660*525*495 | 770*525*495 |
| Net Weight(Kg) | 26 | 37 | 40 | 43 | 47 | 47 | 53 |

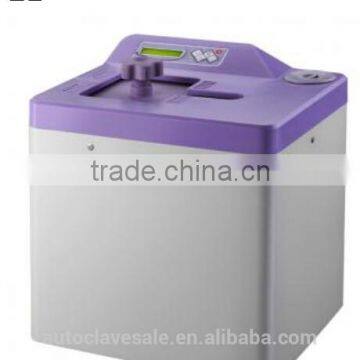

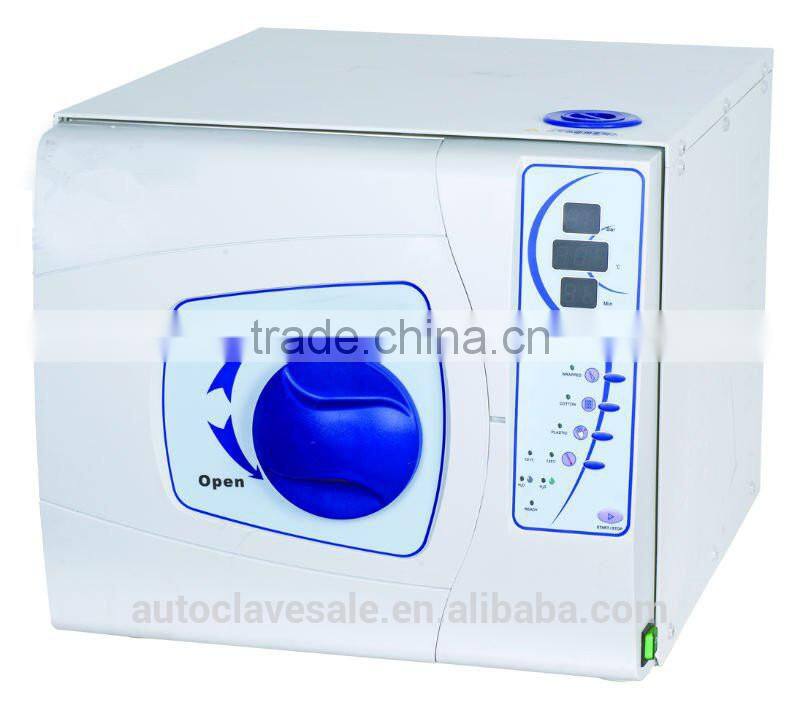

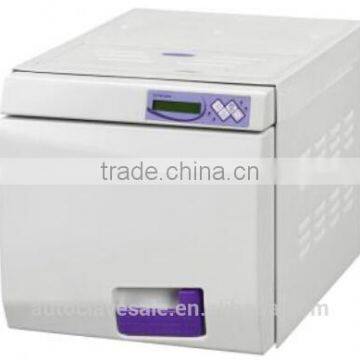

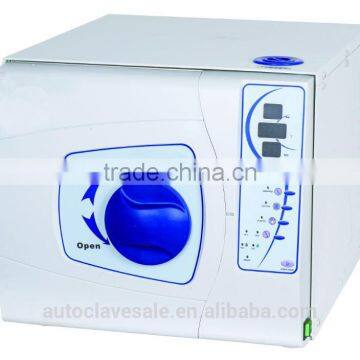

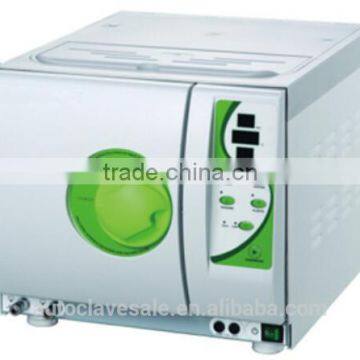

Pictures Show of Bench Top Class B Steam sterilizer TS-DDB:
