Automatic Vertical Steam Autoclave With Drying Function
Model : VA-SA35, VA-SA50, VA-SA75, VA-SA100
Volume: 35Liters, 50Liters, 75Liters, 100Liters
Automatic Vertical Steam Autoclave With Drying Function Instructions and Principle:
Automatic control over theprocesses of filling water, heating, sterilization, steam exhaust and dryness.
1. Fully stainless steel material.
2. Horizontal sliding door, self- bulge seal ring, operated easily.
3. Door safety lock system, the door is made of high performance heat insulation material.
4. Positive pressure pulse function exhaust cool air of chamber thoroughly and ensure the steam saturation.
5. Micro-computer control technique, touch-key, LCD display the menu.
6. Built-in water tank. Steam and water circulation system, no external water source, not exhaust steam outside, environment is clean and dryness.
7. Preheating control function.
8. With two stainless steel sterilizing baskets.
Safety Device:
1. Safe protection of water lacking
2. The program will be stopped if water level lower than the low limit.
3. The buzzer alarms when a cycle of operation is completed.
4. Over temperature&over pressure auto-protection.
5. Over current protector.
6. Door safety interlock: The door cannot be opened until there is no pressure in the chamber and power for heating cannot be switched on until the door is firmly closed.
7. Safety valve of auto release against over-pressure.

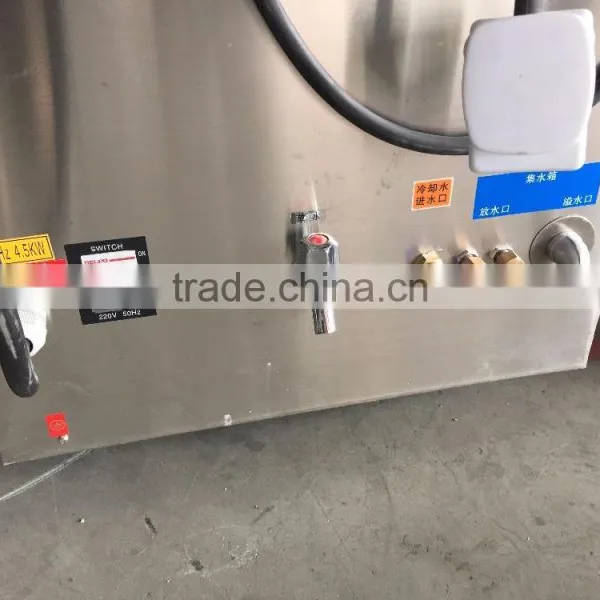

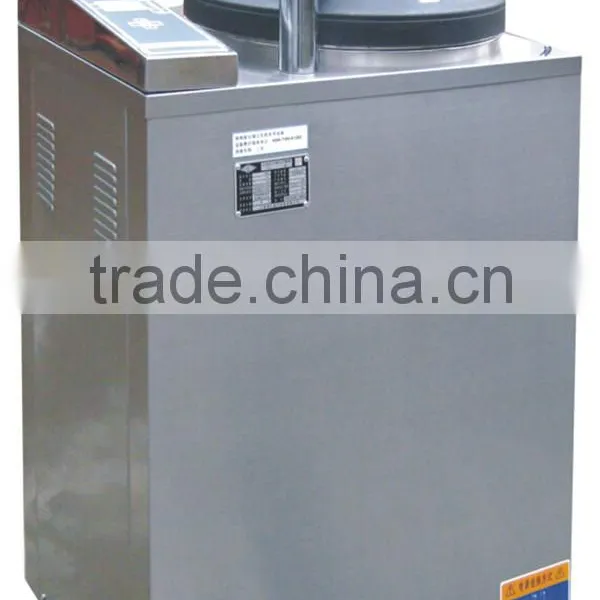

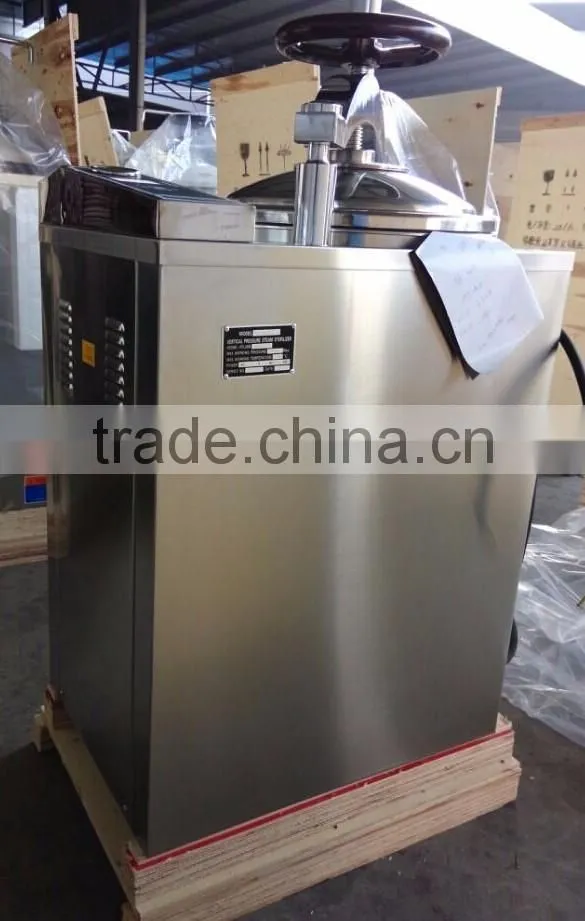

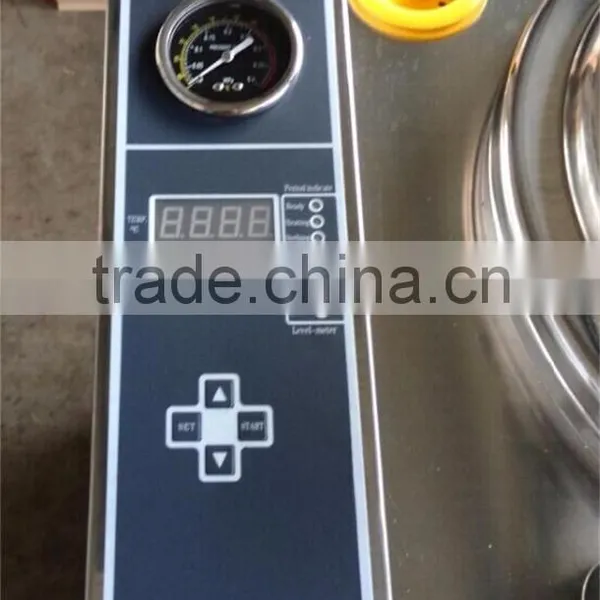

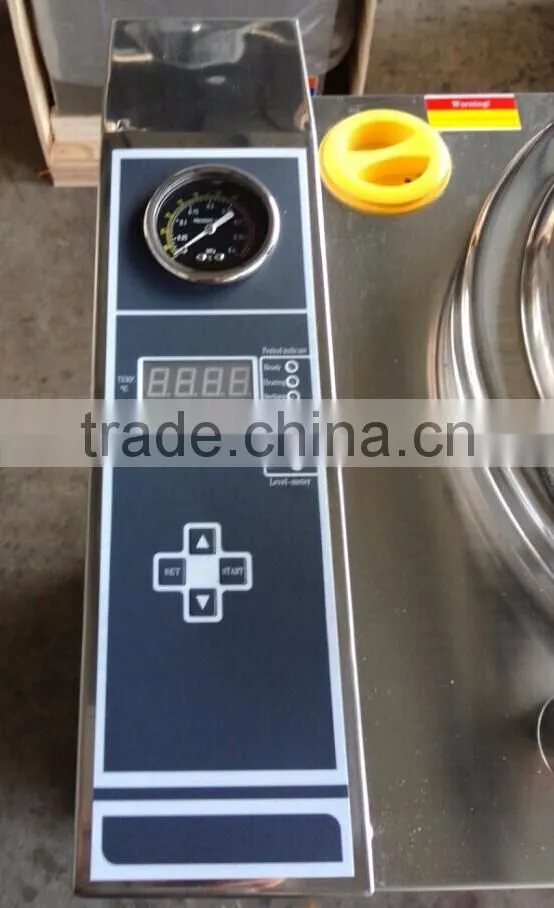

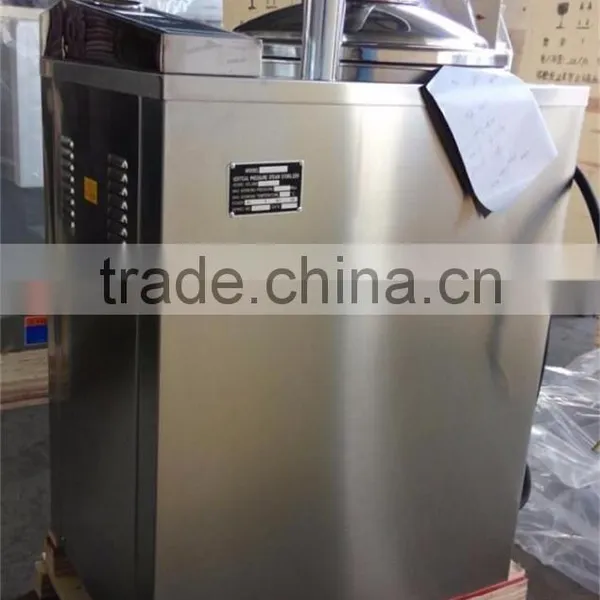

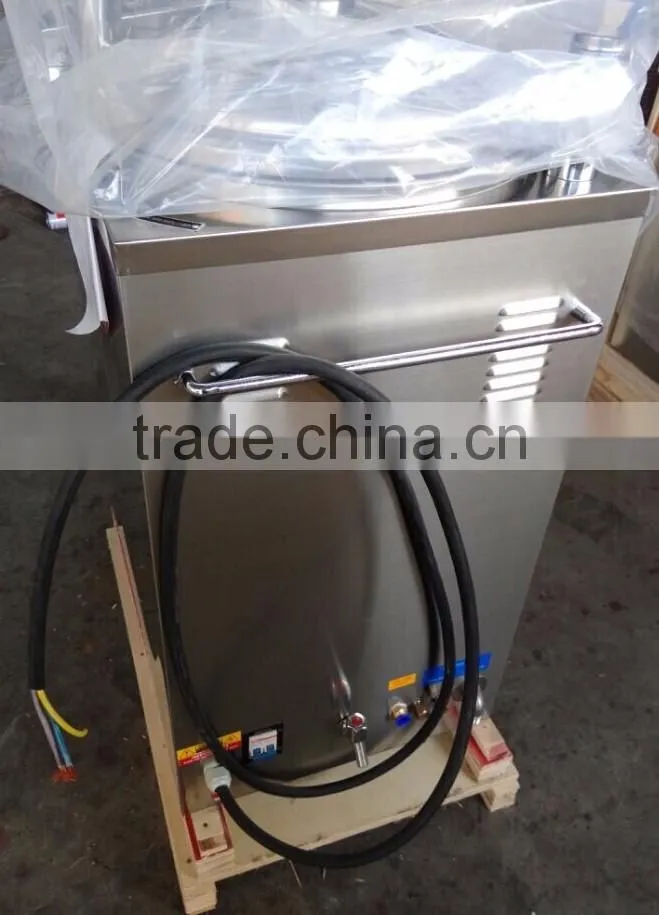

Automatic Vertical Steam Autoclave With Drying Function Pictures:
Automatic Vertical Steam Autoclave With Drying Function Specifictions:
| Model | VA-SA35 | VA-SA50 | VA-SA75 | VA-SA100 |
| Volume | 35 Liters | 50 Liters | 75 Liters | 100 Liters |
| Sterilizing Chamber Volume | Ø318*H450 mm | Ø340*H550 mm | Ø400*H600 mm | Ø440*H650 mm |
| Working Pressure | 0.22 Mpa | |||
| Max Working Pressure | 0.23 Mpa | |||
| Working Temperature | 134°C | |||
| Adjustment of Temperature | 126°C-134°C | |||
| Timer | 0-99 Minutes | |||
| Heat Average | ≤± 1°C | |||
| Power |
2.5 KW AC220V 50Hz |
3.5 KW AC220V 50Hz |
4.5 KW AC220V 50Hz |
4.5 KW AC220V 50Hz |
| Sterilizing Baskets | 1 PCS | 1 PCS | 2 PCS | 2 PCS |
| Product Dimension | 600*410*1030 mm | 650*410*1140 mm | 690*470*1140 mm | 730*510*1270 mm |
| Package Dimension( mm ) | 730*500*1170 | 730*500*1290 | 760*550*1290 | 820*600*1380 mm |
| Gross Weight/Net Weight | 96 kg / 77 kg | 102 kg/ 83 kg | 120 kg/ 98 kg | 135 kg / 110 kg |

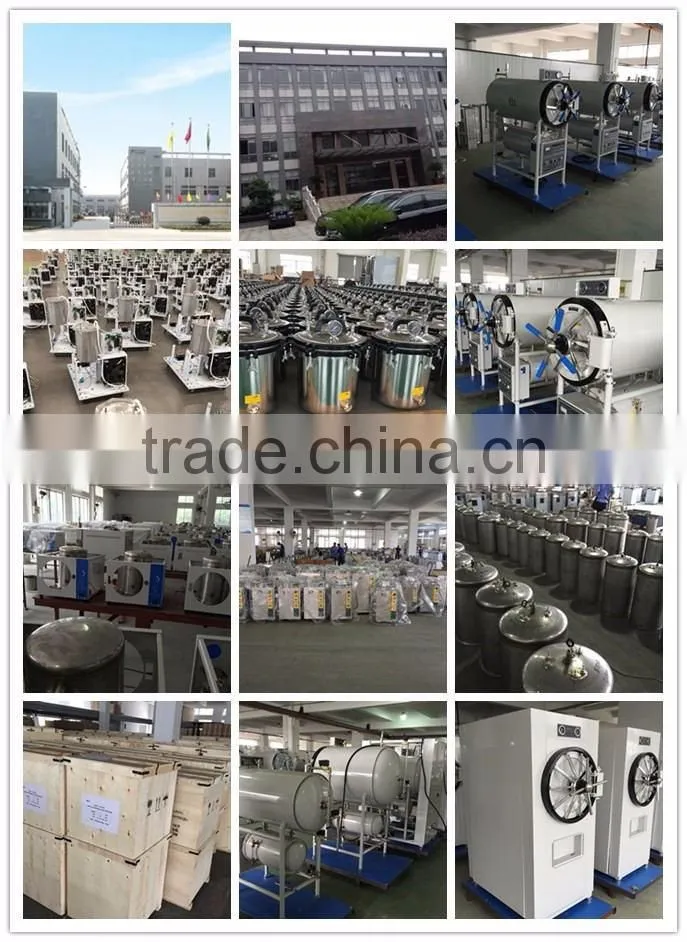

Our Factory:
Vertical autoclave:
Portable autoclave:
Table top autoclave:
Horizontal autoclave:
