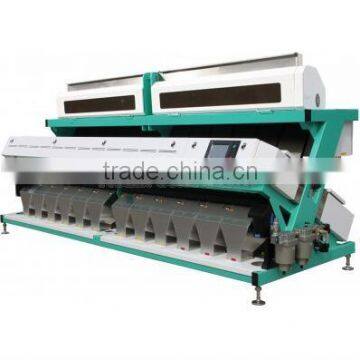

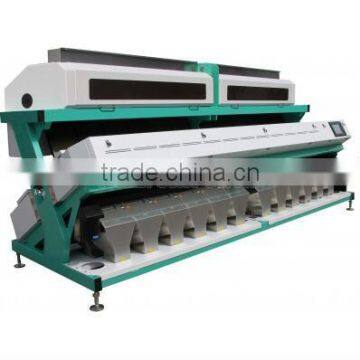

Metak CCD Camera Color Sorter
Metak CCD Camera Color Sorter Technical Data:
Model | RCSS8 | RCSS10 | RCSS12 |
Output(t/h) | 6-18 | 8-24 | 10-27 |
Carryover (bad: good) | >15:1 | >15:1 | >15:1 |
Accuracy (%) | >99% | >99% | >99% |
Voltage (V/Hz) | 220V/50 | 220V/50 | 220V/50 |
Power (Kw) | 2.0-5.0 | 2.5-6.3 | 2.8-7.1 |
Air pressure (Mpa) | 0.6-0.8 | 0.6 | 0.8 |
Consumption (L/min) | <5800 | <8000 | <9600 |
Weight (Kg) | 1350 | 1900 | 2450 |
Dimensions (mm) | 3095*1457*1728 | 3721*1403*1926 | 4312*1403*1926 |
Important Parts of CCD Camera Color Sorter
CCD Camera Color Sorter Features:
It is equipped with the digital processing system to deliver a consistent and reliable sorting performance.
The simple and robust design of the AMD optical sorter is designed to deliver dependable performance in the most challenging of sorting environments:
• Using high-definition color CCD camera image acquisition system, to achieve material(RGB)red, green and blue three color information acquiring, depth recognition tiny fine color sorter can choose other impurities
• Removes color defects and foreign material
• Excellent value for money
• Powerful software operation platform, easy to learn, simple and convenient to operate.
• The application of air-cooled system has solved the problems of high temperature, heavy energy loss and short service life-all of which were caused by longtime utilization of an LED light source,ensuring the durability of an LED light source under a constant temperature
• Offers simultaneous sorting, discolor sorting, reverse sorting and transparent sorting
• Dedicated after sales support available
• High-brightness and long-service-life LED light

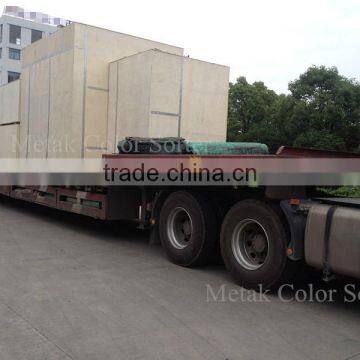

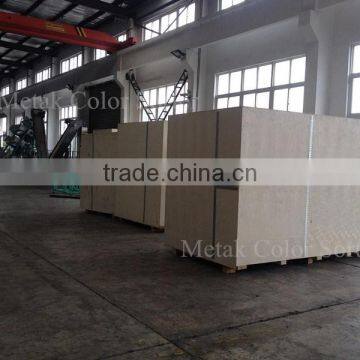

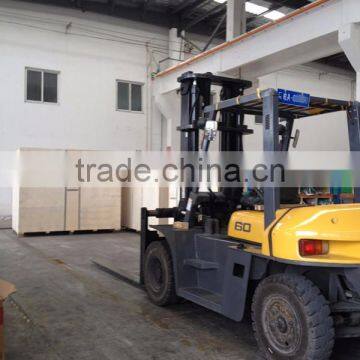

CCD Camera Color Sorter Packaging & Shipping
Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
&lt;img src="///kf/HTB1gJ7IKXXXXXbDapXXq6xXFXXXN/221240172/HTB1gJ7IKXXXXXbDapXXq6xXFXXXN.jpg" alt="Metak Color Sorter for Garlic" ori-width="800" ori-height="600"&gt;&lt;img src="///kf/HTB1jmw9KXXXXXaYXFXXq6xXFXXXC/221240172/HTB1jmw9KXXXXXaYXFXXq6xXFXXXC.jpg" alt="Metak Color Sorter for Garlic" ori-width="800" ori-height="600"&gt;
CCD Camera Color Sorter After Sales Services
• With presence in a variety of countries, Metak is strongly committed to being close to the customer.
• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Metak managed to provide fast, competent and rooted services in the context of customers.
• Application center in Hefei production base offer demo machines for tests and comparison.
• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
• Under normal working circumstances, Metak machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.
• Service line is available for emergency support.
• Metak products will be serviced and supported wherever customers are located.
• Through the global Metak network and from Metak technical experts, training on Metak machines is available worldwide.
CCD Camera Color Sorter Production Line:
Our Goal: Make Color Sorting Easier, Quality is Our Culture.
