Home > Products > Metak Plastic Color Sorter > Metak Plastic Optical Color Sorter Machine

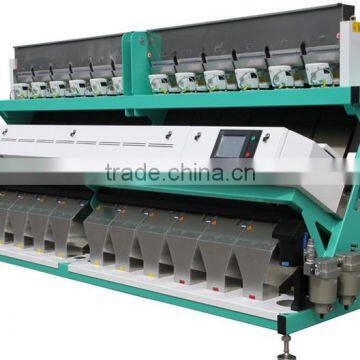

Metak Plastic Optical Color Sorter Machine
- 2000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Farm Equipment | Use: | Plastic Grading | Certification: | CE ISO |
Place of Origin: | Anhui, China | Brand Name: | Metak Color Sorter | Model Number: | RCSS Plastic color sorter |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Metak Plastic Optical Color Sorter Machine
Metak Plastic Optical Color Sorter Machine Technical Data
Model | RCSS8 | RCSS10 | RCSS12 |
Channels | 480 | 600 | 720 |
Output(t/h) | 12-20 | 15-33 | 18-39 |
Carryover(bad:good) | >8:1 | >8:1 | >8:1 |
Accuary(%) | >99% | >99% | >99% |
Voltagev/Hz) | 220V/50 | 220V/50 | 220V/50 |
Power(Kw) | 2.0-5.0 | 2.5-6.3 | 2.8-7.1 |
Air Pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Consumption (L/min) | <5800 | <8000 | <9600 |
Weight (Kg) | 1350 | 1900 | 2450 |
Dimensions(mm) | 3095*1457*1728 | 3721*1403*1926 | 4312*1403*1926 |
Metak Plastic Optical Color Sorter Machine Features
1 Wide applicable scope.
For rice, grains, nuts roasted seeds and nuts, economic crops, industry, covering all material sorting of millet, sesame and corn, wheat and other grain size between.
2 Super high capacity.
The world's largest channel design, providing 640 channels, two channels 720 ultra wide channel model, to meet the large output, large quantities of sorting requirements.
3 Cloud object link system.
Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.
4 Color image acquisition system.
Using high-definition color CCD camera image acquisition system, to achieve material (RGB) red, green and blue three color information acquiring, depth recognition tiny fine color sorter can choose other impurities.
5 Application of air-cooled system.
The application of air-cooled system has solved the problems of high temperature, heavy energy loss and short service life - all of which were caused by longtime utilization of an LED light source, ensuring the durability of an LED light source under a constant temperature.
6 Image processing system.
Applying the international advanced 2048 full color scanning technology, DSP+FPGA processing technology, as well as complex algorithm of multiple modes combined with color and space, this system can provide the function of color&shape-based sorting depending on the difference of materials, and allow you to set multiple modes freely and select any material from tens of thousands of ones at your option.
7 Operating system.
With intelligent operating platform, the system can be mastered and operated easily, turning the intelligent communication between human and machine into reality and eliminating all your concerns about operating.
8 Innovative intelligent feeding system
Identify whether there is any material intelligently, ensure that the feeding speed and quantity are uniform,Feeding system with innovative winnowing function, automatic winnowing for ethereal substances and dust on materials, which can effectively enhance the accuracy of color sorting.
9 Intelligent wind curtain function design.
Through the fan blowing system, high-speed airflow will in front of the lens glass dust, ethereal and rapid clearance, to ensure resolution and color sorting accuracy.
10 Solenoid Valves
The only independently developed dedicated solenoid valves with independent intellectual property rights for color sorters in the industry; special high-strength materials, strong suction, no residual magnetism, linear flow, precise blow, high consistency, significantly loweredoptimal carryover; gas consumption for removing 1 ton materials is reduced by 20-30%; the frequency can be up to 1200hz per second, the fastest response time is within 0.5m/s, the service life is 5-10 billion times.
Metak Plastic Optical Color Sorter Machine Examples Of Sorting
Packaging & Shipping
Metak Color Sorter Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
After Sales Services
• With presence in a variety of countries, Metak is strongly committed to being close to the customer.
• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Metak managed to provide fast, competent and rooted services in the context of customers.
• Application center in Hefei production base offer demo machines for tests and comparison.
• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
• Under normal working circumstances, Metak machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.
• Service line is available for emergency support.
• Metak products will be serviced and supported wherever customers are located.
• Through the global Metak network and from Metak technical experts, training on Metak machines is available worldwide.
Production Line
Our Goal: Make Color Sorting Easier, Quality is Our Culture.
