Home > Products > Metak Plastic Color Sorter > Intelligence CCD Plastic Optical Color Sorter For Sale
Intelligence CCD Plastic Optical Color Sorter For Sale
- 2000 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Farm Equipment | Use: | Ore Sorting | Certification: | CE ISO |
Place of Origin: | Anhui, China | Brand Name: | Metak Color Sorter | Model Number: | OCSS1280 plastic color sorter |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

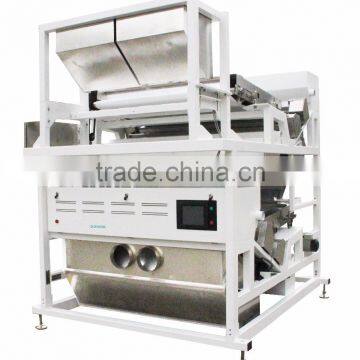

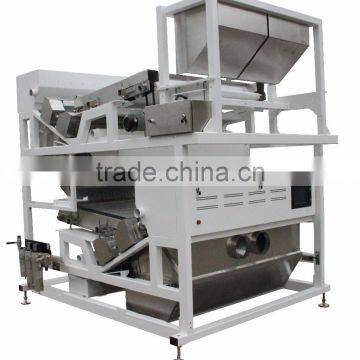

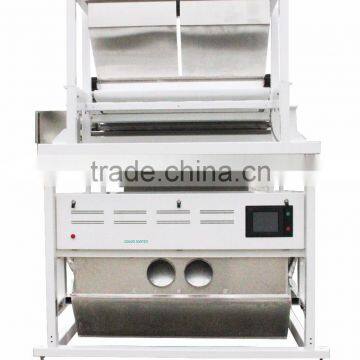

Intelligence CCD Plastic Optical Color Sorter For Sale
Intelligence CCD Plastic Optical Color Sorter For Sale Technology Parameters
Model | OCSS1280 | |
Layer No. | 2 | |
Output (T/h) | 2-5cm | 9-17 |
4-8 Mesh | 7-10 | |
10-16 Mesh | 4-6 | |
20-30 Mesh | 1.5-3.5 | |
30-40 Mesh | 1-2 | |
Carryover (bad: good) | ≥20:1 | |
Accuracy (%) | ≥99% | |
Voltage (V/Hz) | 220V/50HZ | |
Power (Kw) | 3.5-7 | |
Air pressure (Mpa) | 0.6-0.8 | |
Consumption (L/min) | 2000-2800 | |
Weight (Kg) | 1700 | |
Dimensions (mm) | 2500*2030*2590 |
Intelligence CCD Plastic Optical Color Sorter For Sale Technology Characteristics
1. Application of air-cooled system
The application of air-cooled system has solved the problems of high temperature, heavy energy loss and short service life - all of which were caused by longtime utilization of an LED light source, ensuring the durability of an LED light source under a constant temperature.
2. Color image acquisition system
Using high-definition color CCD camera image acquisition system, to achieve material (RGB) red, green and blue three color information acquiring, depth recognition tiny fine color sorter can choose other impurities. Transparent or non transparent selection of transparent material.
3. Cloud object link system
Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.
4. Image processing system
International high-end color line scan technology, the International frontiers of DSP+FPGA processing technology, CCD reached 5400 X 10K scan capture, color and shape of the combination of a variety of models of complex intelligent algorithm, for different ore materials provide "the color selection and shape selective penetration of the solution.

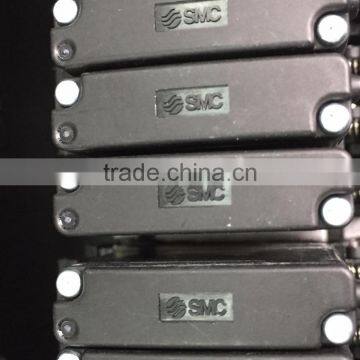

5. Solenoid Valves
The only independently developed dedicated solenoid valves with independent intellectual property rights for color sorters in the industry; special high-strength materials, strong suction, no residual magnetism, linear flow, precise blow, high consistency, significantly lowered optimal carryover; gas consumption for removing 1 ton materials is reduced by 20-30%; the frequency can be up to 1200hz per second, the fastest response time is within 0.5m/s, the service life is 5-10 billion times.
6. Operating system
With intelligent operating platform, the system can be mastered and operated easily, turning the intelligent communication between human and machine into reality and eliminating all your concerns about operating.
7. Light source processing system
Using LED light source background board, intelligent flexible conversion of the background light RGB color, set more simple.
8. Circulating ash cleaning system
Round high-strength glass, 360 degree automatic rotation cleaning, without shutdown timer cleaning, improve the efficiency of the machine and sorting effect.
9. Dust removal system
The original dust removal system, can remove raw material attached to the ethereal matter, dust automatic winnowing, effectively enhance the color sorting accuracy and effectiveness.
10. Double sorting mode
According to the different needs of customers can be set flexibly realize the sorting can lower again to check, no need to replace the function of the hopper.
Examples Of Sorting
Packaging & Shipping
Metak Color Sorter Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
After Sales Services
• With presence in a variety of countries, Metak is strongly committed to being close to the customer.
• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Metak managed to provide fast, competent and rooted services in the context of customers.
• Application center in Hefei production base offer demo machines for tests and comparison.
• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
• Under normal working circumstances, Metak machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.
• Service line is available for emergency support.
• Metak products will be serviced and supported wherever customers are located.
• Through the global Metak network and from Metak technical experts, training on Metak machines is available worldwide.
Production Line
Our Goal: Make Color Sorting Easier, Quality is Our Culture.
