Home > Products > Metak Plastic Color Sorter > Double Layer Belt Type Optical Plastic Color Sorter Machine
Double Layer Belt Type Optical Plastic Color Sorter Machine
- 2000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Plastic Processing Equipment | Use: | Plastic Processing | Certification: | CE ISO |
Place of Origin: | Anhui, China | Brand Name: | Metak Color Sorter | Model Number: | BCSD Plastic Color Sorter |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Double Layer Belt Type Optical Plastic Color Sorter Machine
Double Layer Belt Type Optical Plastic Color Sorter Machine Technical Data
Model | BCSD1280 | BCSD1600 |
Output(t/h) | 1.2-1.8 | 1.5-2.2 |
Carryover(bad:good) | ≥15:1 | ≥15:1 |
Accuary | ≥99% | ≥99% |
Voltage | 220/380V.50Hz | 220/380V.50Hz |
Power(Kw) | 8.5--11 | 8.5--11 |
Air Pressure(Mpa) | 0.6—0.8 | 0.6—0.8 |
Consumption (L/min) | <4600 | <4800 |
Weight (Kg) | 3050 | 3336 |
Dimensions(mm) | 3441*1986*2503 | 3441*2346*2503 |
Double Layer Belt Type Optical Plastic Color Sorter Machine Features
1, Operating System
One-key intelligent automatic operation, omitting multiple steps, quick response, easy to grasp; concise response to color sorting requirements of materials of different batches and different impurities. One-key intelligent system can automatically identify and adjust, no re-set is needed to ensure the best color sorting effects; truly interactive, intelligent docking, you can sit back and relax.
2, Processing System
Enhanced DSP+FPGA international cutting-edge processer technology, high processing efficiency, more accurate real-time processing capability; super computing power, massive data processing, which can meet the requirements for complex calculations of a variety of modes, it is a smart model in the industry; automatic alarm functions and prompts for non-normal color sorting requirements, as well as abnormal air supply; modular design, strong scalability, easy maintenance and upgrade.
3, Image Acquisition System
Dedicated 2048 high-speed line scan CCD image sensor for international cutting-edge industries, and special color sorting cameras tailored by top international suppliers, can precisely identify subtle spots of 0.04mm2.
4, Light Source
Innovative smart LED shadowless cold light system design can efficiently find out small spots, which makes identification and judgment much easier, sorting more accurate. The light source has long service life, high luminous efficiency and strong anti-interference stability, and no warm-up is needed.
5, Image Processing
Intelligent algorithms combining colors and shapes; digital information processor dedicated for powerful industrial control, highly intelligent image processing algorithms dedicated for color sorter, high-speed capture, high-speed processing, which improves the consistency of the signal path and the stability and reliability of the system, thus to ensure the sorting effects.
6, Solenoid Valves
The only independently developed dedicated solenoid valves with independent intellectual property rights for color sorters in the industry; special high-strength materials, strong suction, no residual magnetism, linear flow, precise blow, high consistency, significantly loweredoptimal carryover; gas consumption for removing 1 ton materials is reduced by 20-30%; the frequency can be up to 1200hz per second, the fastest response time is within 0.5m/s, the service life is 5-10 billion times.
7, Super-wide Conveyor Belt
Largest super-wide conveyor belt in the domestic market, wide field of view, effectively increase the color sorting area, large yield.
8, Feeding System
Feeding system with innovative winnowing function, automatic winnowing for ethereal substances and dust on materials, which can effectively enhance the accuracy of color sorting.
9, Discharging System
The industry's onlyoriginated a bucket with a discharging system, finished product waste, according to the different needs of customers can be set flexibly realize the sorting can lower again to check, no need to replace the function of the hopper.

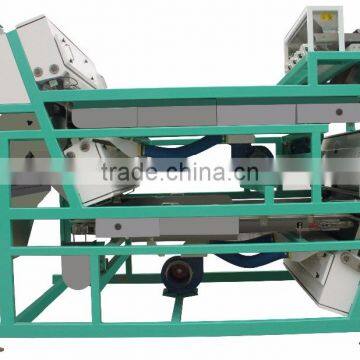

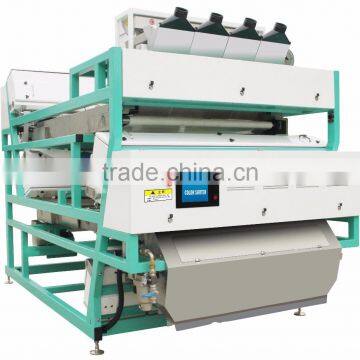

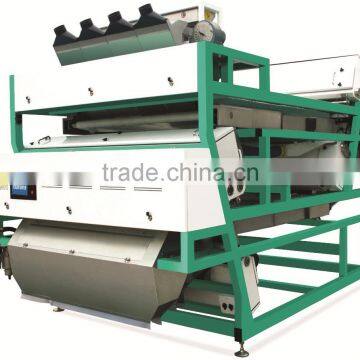

Double Layer Belt Type Optical Plastic Color Sorter Machine Sample
Packaging & Shipping
Metak Color Sorter Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
After Sales Services
• With presence in a variety of countries, Metak is strongly committed to being close to the customer.
• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Metak managed to provide fast, competent and rooted services in the context of customers.
• Application center in Hefei production base offer demo machines for tests and comparison.
• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
• Under normal working circumstances, Metak machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.
• Service line is available for emergency support.
• Metak products will be serviced and supported wherever customers are located.
• Through the global Metak network and from Metak technical experts, training on Metak machines is available worldwide.
Metak Color Sorter Production Line
Our Goal: Make Color Sorting Easier, Quality is Our Culture.
