Bluestone Fully Stainless Steel Structure Diagram of Autoclave Machine
- 8000 Set / Sets per Month
- Qingdao Shanghai Ningbo Shenzhen Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Medical sterile cabinet
- High Pressure Steam Autoclave, Stainless Steel Autoclave
- Mobile plasma air sterilizer for disinfection of hospital, home, and public spaces
- Steam pressure sterilizers used in medical laboratories
- 50L Pressure steam sterilizer
- Small 18L/23L sterilizer Pressure steam sterilizer
Product Details
Type: | Pressure Steam Sterilization Equipments | Brand Name: | Bluestone Autoclave | Model Number: | HA-BD Diagram of Autoclave Machine |
Place of Origin: | Anhui, China |
Product Description
Bluestone Fully Stainless Steel Structure Diagram of Autoclave Machine
Diagram of Autoclave Machine HA-BD Series Features:
1. The steam can't go through to chamber when the door haven't close, and the pilot off inform. You can processing dry operate.
2. When the pressure inner over 0, 027MPa. The door be locked and can't be open.
3. If you not choose the sterile time and star the machine, buzzer sound.
4. If you mistake open the door in the course of start, the jacker value auto off and open the chamber value.
5. Lack water the pilot on, heating and sterile pilot off, the buzzer sound and auto release steam.
6. Overload and leakage protection, when leakage or over current occur, it auto off the power.
7. Temperature controlled not work and the inner pressure over 0.165MPa, the safety value auto open.
8. Material: Outside and Inside is full stainless steel SUS304.
Diagram of Autoclave Machine HA-BD Series Use:
The Diagram of Autoclave Machine,which adopted the way of gravity exchange to releasing the cold air from the chamber more completely to ensure the reliable sterilization.The control system automatically adjust the steam inlet and outlet according to chamber temperature during stetilizing.

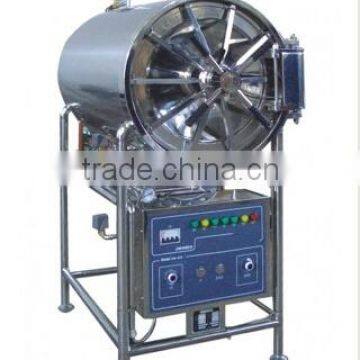

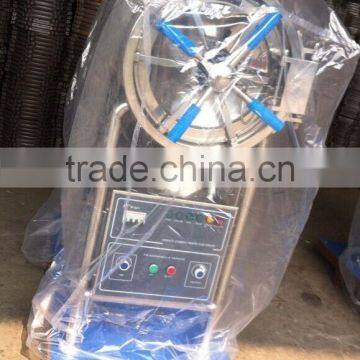

Diagram of Autoclave Machine HA-BD Series Pictures:

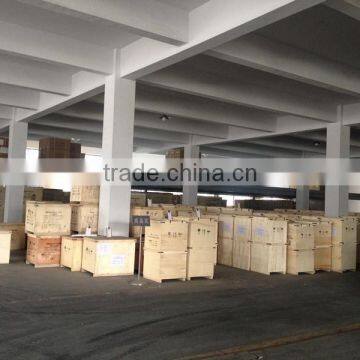

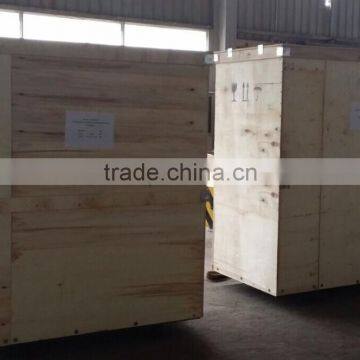

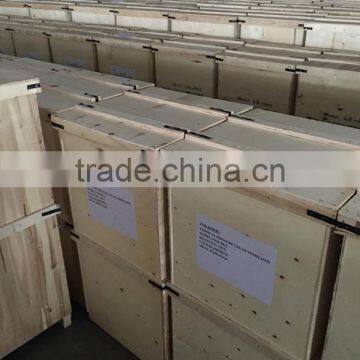

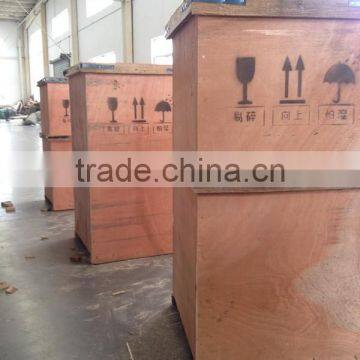

Diagram of Autoclave Machine Factory:
Diagram of Autoclave Machine Technical Data:
Model | HA-BD150 | HA-BD200 | HA-BD280 |
Volume | 150 Liters | 200 Liters | 280 Liters |
Sterilizing Chamber Volume | Ø440*H1000 mm | Ø515*H1000 mm | Ø600*H1000 mm |
Working Pressure | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa |
Max Working Pressure | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa |
Working Temperature | 134°C | 134°C | 134°C |
Adjustment of Temperature | 105°C-134°C | 105°C-134°C | 105°C-134°C |
Adjustment time of Sterilization | 0-60 Minutes | 0-60 Minutes | 0-60 Minutes |
Adjustment time of Dry | 0-60 Minutes | 0-60 Minutes | 0-60 Minutes |
Heat Average | ≤± 1°C | ≤± 1°C | ≤± 1°C |
Power | 9 KW / AC380V 50Hz | 9 KW / AC220V 50Hz | 12 KW / AC380V 50Hz |
Product Dimension | 1400*600*1300 mm | 1400*670*1650 mm | 1400*770*1780 mm |
Package Dimension | 1550*750*1850 mm | 1560*820*1850 mm | 1680*920*2100 mm |
Gross Weight/Net Weight | 320 kg /240 kg | 350 kg /260 kg | 465 kg / 365 kg |
Diagram of Autoclave Machine After-sales Service:
Pre-sale Service:
1.24hours online to ensure quick response to customers' inquiry or online message;
2.Guide customers to choose the best suitable machine model;
3.Offer detailed specification and competitive prices;
After-sale Service:
1. Main machine 2 years quality guarantee.
2. 1 year free spare parts.
3. Response in 24 hours.
4. Free vedio or photos guide.
Diagram of Autoclave Machine Supplier's main Products:
Portable Autoclave:
Table Top Autoclave:
Vertical Autoclave
Horizontal Autoclave:
