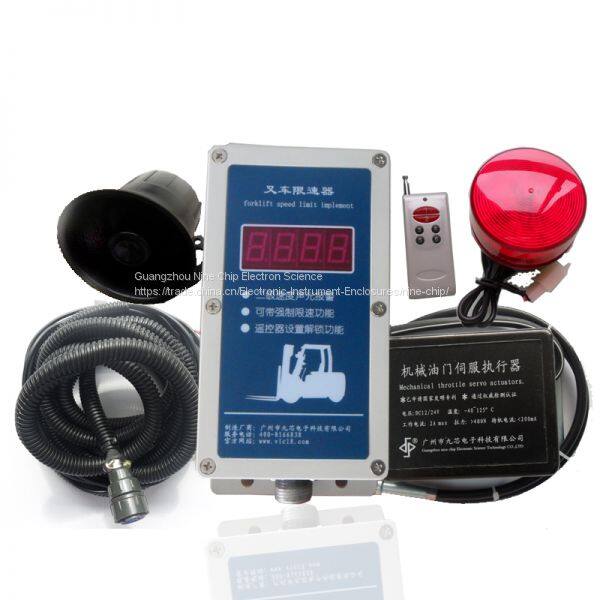

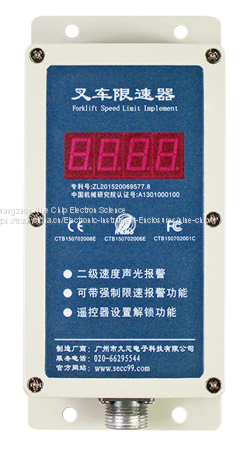

Forklift Overspeed Alarm, Tcm Forklift Speed Limiter

Forklift overspeed alarm, tcm forklift speed limiter

1.Product Description

• Alarm can be controlled by remote controller within ten meters.

• Easy to operate with full functions.

• 4 levels volume adjustment for different occasions.

• External clear & loud alarm speaker, which up to 120dB.

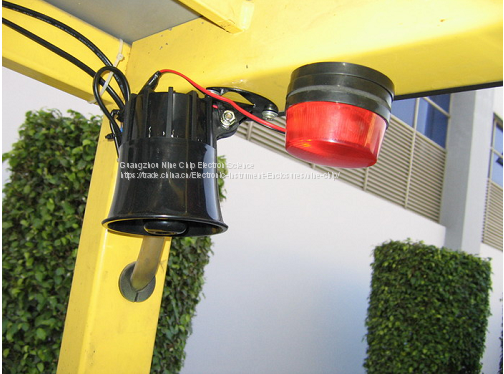

• Two kinds of warning: Flash lamp and voice alarm.

• External super bright lamp flashing for speeding.

• Using WTV series voice IC as electro circuit core, easy to change different warning sound.


• Two level speed setting, level-1 with flash lamp warning, level-   2 with lamp and sound warnings.


• Alarm locking time can be adjusted from 0 to 99 seconds, if      speed of forklift exceeds the preset, will warn.

• Eight-level waterproof capability, even work well in water.

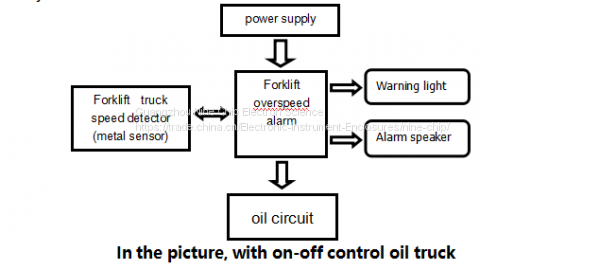

• With connect and disconnect oil lines function.


• Consumption power: 5V

2.Technical parameters

• Working voltage: 12-24V (18-48V)

• Working power consumption: 5W.

• Warning lamp load≤100 mA/12V.

• Warning sound output: 120 dB.

3.The remote control function

Note: N2011A remote control keys are used for query speeding record function.

4.Applications

Lift truck,  fork truck, forklift,small truck,scraper,dirty car

Agricultural Vehicle Speed Management

Industrial Vehicle Management

ODM and OEM orders are welcome!

About our company:

Guangzhou Nine Chip Electron Technology Co.,Ltd is a hi-tech enterprise which is specialize in developing, producing and selling Vehicle speed limiter, Vehicle overspeed alarm system, Forklift overspeed limit system, Forklift speed limiter, Forklift overspeed alarm system, GPS tracker vehicel speed limiter, GPS speed limiter and so on, found in Tianhe District, Guangzhou, China. Our company especially in researching and developing many proposals of speed limiter series have applied for the nation invention patent.

Our Services

Guangzhou Nine Chip Electronic Technology Co., Ltd

Our QC team: Quality is the most important factor. Our experienced QC staff are responsible to each parts of our products’ high quality.

Our R&D team: with much experience of software and hardware design; Freely customizing and designing for clients with specialized requirements.

Our Sales team: 24 Hours Services. our professional sales team provides clients the best idea and suggestion and assistant you with our best.

Web:

 Our factory:

The payment term:

The certificates:

We are in the exhibition!
