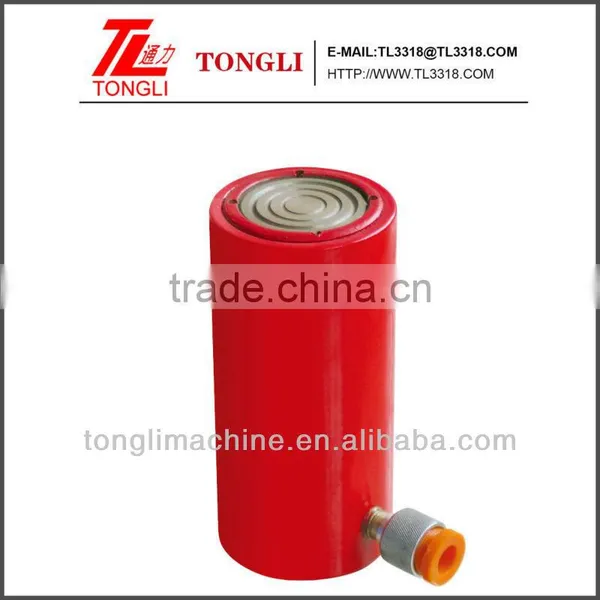

Help Center20ton TL1303-1 Hydraulic Cylinder
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20 Ton TL1303-2 Hydraulic Press Oil CylinderNegotiableMOQ: 10 Pieces -
30 Ton TL1304-1 Hydraulic Press Oil CylinderNegotiableMOQ: 10 Pieces
-
Hydraulic Pneumatic Jack Oil CylinderNegotiableMOQ: 10 Pieces
-
Hydraulic Jack Oil CylinderNegotiableMOQ: 10 Pieces
-
150ton Hydraulic Jack Oil Cylinder ChinaNegotiableMOQ: 10 Pieces
Standard or Nonstandard
Standard
Structure
Piston Cylinder
Power
Hydraulic
Body Material
Steel
Maximum Stroke
xx
Shaft Diameter
48mm
Place of Origin
Zhejiang, China
Model Number
TL1303-1
Brand Name
tongli,OEM
Specifications
20ton TL1303-1 hydraulic cylindercapacity:20ton
stoke:50mm
min.height:176mm
certificate:CE
Hard coat finish on all surfaces resists damage and extends cylinder life.
Steel base plate and saddle of protection against
|
Model |
Capacity(ton) | Stoke(mm) | Min.Height(mm) | outer diameter(mm) | inner diameter(mm) | ram diameter(mm) | Oil Tank(cm3) | Working Pressure(Mpa) | Head size(cm2 ) | |
| TL1301-1 | 4 | 73 | 126 | 40 | 28 | 25 | 44.9 | 63 | 4.9 | |
| TL1301-2 | 4 | 120 | 270 | 40 | 28 | 25 | 90 | 63 | 3.8 | |
| TL1302-1 | 10 | 58 | 118 | 56 | 45 | 40 | 92.2 | 61.6 | 15.19 | |
| TL1302-2 | 10 | 140 | 250 | 56 | 45 | 40 | 222.5 | 61.6 | 15.19 | |
| TL1303-1 | 20 | 50 | 176 | 76 | 60 | 48 | 145 | 69.4 | 18 | |
| TL1303-2 | 20 | 150 | 276 | 76 | 60 | 48 | 440 | 69.4 | 18 | |
| TL1304-1 | 30 | 50 | 185 | 92 | 75 | 56 | 222 | 66.6 | 24.6 | |
| TL1304-2 | 30 | 150 | 285 | 92 | 75 | 56 | 664 | 66.6 | 24.6 | |
| TL1305-1 | 40 | 50 | 195 | 108 | 90 | 63 | 320 | 61.6 | 31.15 | |
| TL1305-2 | 40 | 150 | 295 | 108 | 90 | 63 | 955 | 61.6 | 31.15 | |
| TL1306-1 | 50 | 50 | 195 | 108 | 90 | 63 | 320 | 77.1 | 31.15 | |
| TL1306-2 | 50 | 150 | 295 | 108 | 90 | 63 | 955 | 77.1 | 31.15 | |
| TL1307-1 | 75 | 50 | 175 | 138 | 110 | 80 | 474.9 | 77.4 | 50.24 | |
| TL1307-2 | 75 | 150 | 275 | 138 | 110 | 80 | 1424.8 | 77.4 | 50.24 | |
| TL1308-1 | 100 | 50 | 175 | 160 | 130 | 95 | 663.3 | 73.9 | 70.84 | |
| TL1308-2 | 100 | 150 | 275 | 160 | 130 | 95 | 1989.9 | 73.9 | 70.84 | |
| TL1309-1 | 150 | 50 | 185 | 193 | 160 | 102 | 1004.8 | 73.2 | 81.67 | |
| TL1309-2 | 150 | 150 | 285 | 193 | 160 | 102 | 3014.4 | 73.2 | 81.67 | |
| TL1310-1 | 200 | 50 | 185 | 218 | 180 | 118 | 1271.7 | 74.19 | 109.3 | |
| TL1310-2 | 200 | 150 | 285 | 218 | 180 | 118 | 3815.1 | 74.19 | 109.3 |
