Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > 4 Ton TL1301-1 Hydraulic Oil Cylinder
4 Ton TL1301-1 Hydraulic Oil Cylinder
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Piston Cylinder
Power
Hydraulic
Body Material
Steel
Maximum Stroke
xx
Shaft Diameter
25mm
Place of Origin
Zhejiang, China
Model Number
TL1301-1
Brand Name
tongli,OEM
Specifications
4 ton TL1301-1 hydraulic oil cylinderstoke:73mm
capacity:4ton
Min Height:126mm
CE

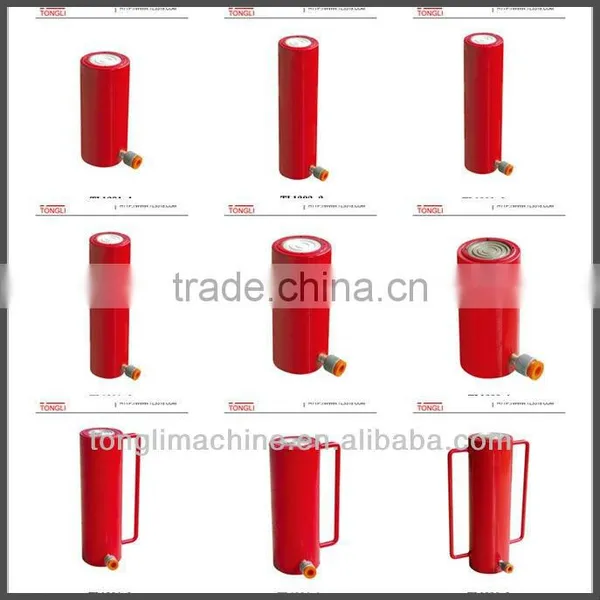

4ton TL1301-1 car lift hydraulic oil cylinder
4ton TL1301-1 car lift hydraulic oil cylinder
Hard coat finish on all surfaces resists damage and extends cylinder life.
Steel base plate and saddle of protection against
| Model | Capacity(ton) | Stoke(mm) | Min.Height(mm) | outer diameter(mm) | inner diameter(mm) | ram diameter(mm) | Oil Tank(cm3) | Working Pressure(Mpa) | Head size(cm2 ) | |
| TL1301-1 | 4 | 73 | 126 | 40 | 28 | 25 | 44.9 | 63 | 4.9 | |
| TL1301-2 | 4 | 120 | 270 | 40 | 28 | 25 | 90 | 63 | 3.8 | |
| TL1302-1 | 10 | 58 | 118 | 56 | 45 | 40 | 92.2 | 61.6 | 15.19 | |
| TL1302-2 | 10 | 140 | 250 | 56 | 45 | 40 | 222.5 | 61.6 | 15.19 | |
| TL1303-1 | 20 | 50 | 176 | 76 | 60 | 48 | 145 | 69.4 | 18 | |
| TL1303-2 | 20 | 150 | 276 | 76 | 60 | 48 | 440 | 69.4 | 18 | |
| TL1304-1 | 30 | 50 | 185 | 92 | 75 | 56 | 222 | 66.6 | 24.6 | |
| TL1304-2 | 30 | 150 | 285 | 92 | 75 | 56 | 664 | 66.6 | 24.6 | |
| TL1305-1 | 40 | 50 | 195 | 108 | 90 | 63 | 320 | 61.6 | 31.15 | |
| TL1305-2 | 40 | 150 | 295 | 108 | 90 | 63 | 955 | 61.6 | 31.15 | |
| TL1306-1 | 50 | 50 | 195 | 108 | 90 | 63 | 320 | 77.1 | 31.15 | |
| TL1306-2 | 50 | 150 | 295 | 108 | 90 | 63 | 955 | 77.1 | 31.15 | |
| TL1307-1 | 75 | 50 | 175 | 138 | 110 | 80 | 474.9 | 77.4 | 50.24 | |
| TL1307-2 | 75 | 150 | 275 | 138 | 110 | 80 | 1424.8 | 77.4 | 50.24 | |
| TL1308-1 | 100 | 50 | 175 | 160 | 130 | 95 | 663.3 | 73.9 | 70.84 | |
| TL1308-2 | 100 | 150 | 275 | 160 | 130 | 95 | 1989.9 | 73.9 | 70.84 | |
| TL1309-1 | 150 | 50 | 185 | 193 | 160 | 102 | 1004.8 | 73.2 | 81.67 | |
| TL1309-2 | 150 | 150 | 285 | 193 | 160 | 102 | 3014.4 | 73.2 | 81.67 | |
| TL1310-1 | 200 | 50 | 185 | 218 | 180 | 118 | 1271.7 | 74.19 | 109.3 | |
| TL1310-2 | 200 | 150 | 285 | 218 | 180 | 118 | 3815.1 | 74.19 | 109.3 |
