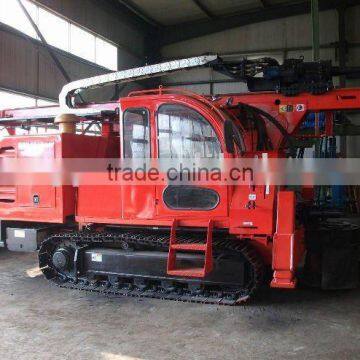

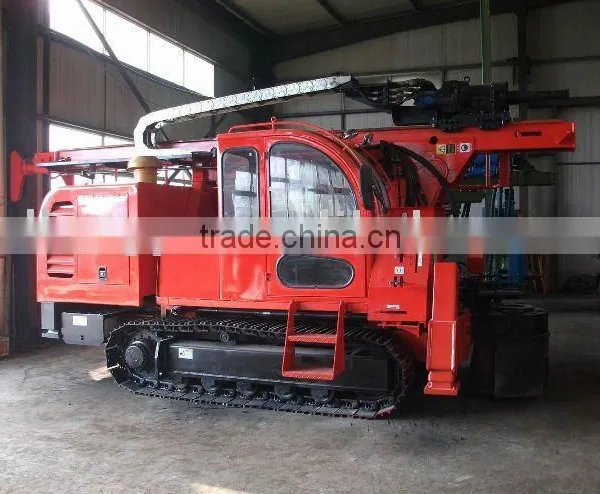

SLY600 hydraulic water well drilling rig,high air pressure hydraulic drilling rigSLY600 hydraulic water well drilling rig
SLY600 track-type multi-well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements
Main technical parameters
NO |
Item |
unit |
specification |
1 |
Hole diameter |
mm |
115-254 |
300-500 | |||
2 |
Hole depth |
m |
350 |
|
80 |
||
3 |
Rotary speed |
r/min |
0-110 |
4 |
Rotary torque |
N.n |
5200 |
5 |
Stroke of drilling rod |
mm |
3500 |
6 |
Feed efficiency |
m/h |
5-30 |
7 |
Low lifting |
m/min |
8 |
8 |
Low moving |
m/min |
16 |
9 |
Fast lifting |
m/min |
32 |
10 |
Fast moving |
m/min |
63 |
11 |
Axial pressure |
N |
4800 |
12 |
Lifting force |
N |
8600 |
13 |
Walking speed |
Km/h |
0-2.5 |
14 |
Engine power |
Kw |
118 |
15 |
Engine model |
|
YC6B160Z-T10 |
16 |
Engine speed |
r/min |
2200 |
17 |
Dimension (length*width*height) |
mm |
6230*2300*2750 |
18 |
Total weight |
t |
11.5 |
