Quality Warranty CTQ-G140YF Small Rock Drilling Machine With Best Service
- QingDao
- T/T Money Gram Credit Card
You May Like
-
Best Seller Quarry Blasting Small Portable Borehole Mining Hydraulic Engineering Portable Rock Drilling Machine
-
Best Seller Hydraulic Bore Hole 60m Underground Rock Drilling Machine
-
Direct Factory Supply CTQ-G140YF Mini Rock Drilling Machine
-
High Quality and Low Price Used 60m Construction and Quarrying Pneumatic Rock Drilling Machine
-
Factory Price Hot Sale Portable Hydraulic Hard 60m Dth Rock Drilling Machine
-
Newest 2016 China Hot Selling Hydraulic Hard Hydraulic Rock Drilling Machine
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | LongYe | Model Number | CTQ-G140YF | |
| Usage | Other, mining exploitation;drilling blasting hole | Power(W) | 56KW | |
| Dimension(L*W*H) | 5270*1960*2300 | Weight | 4800kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

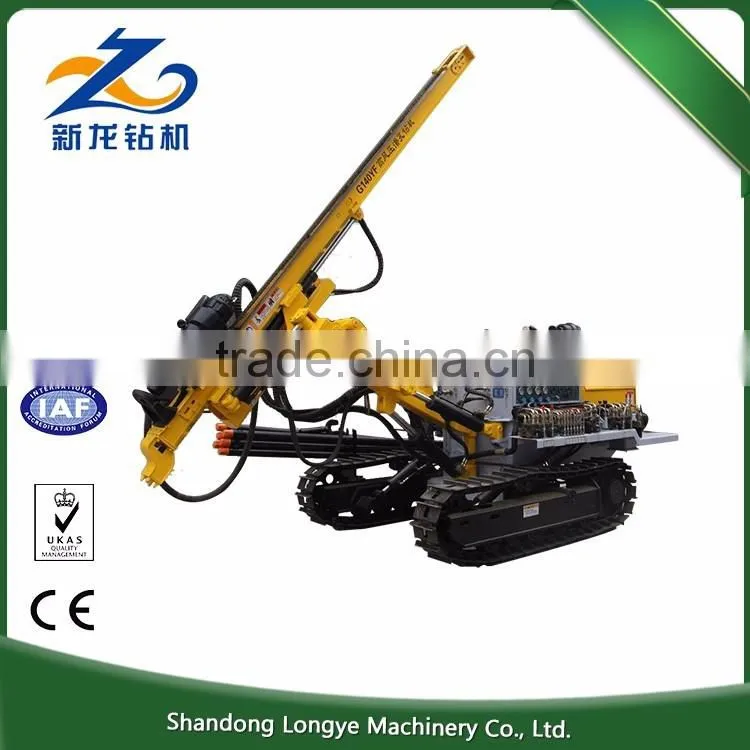

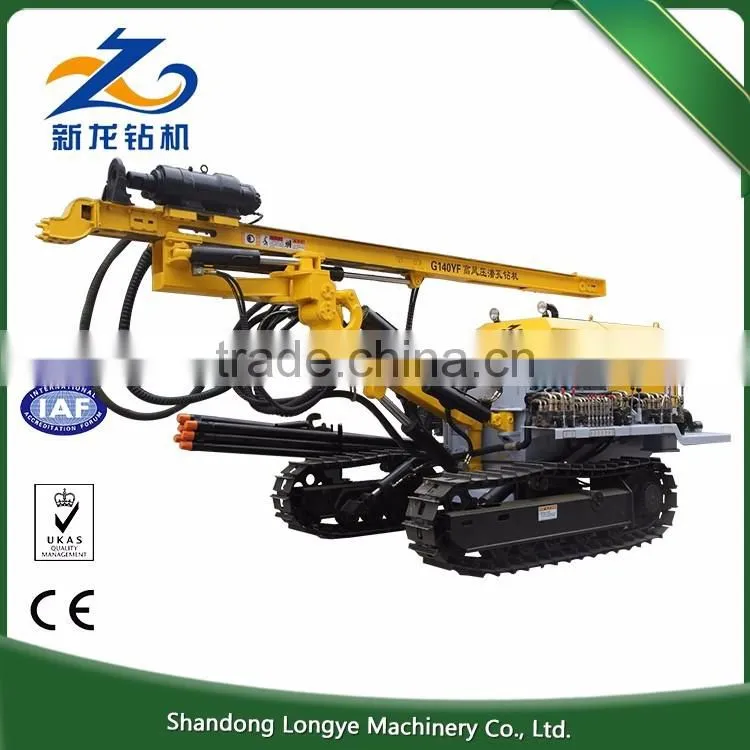

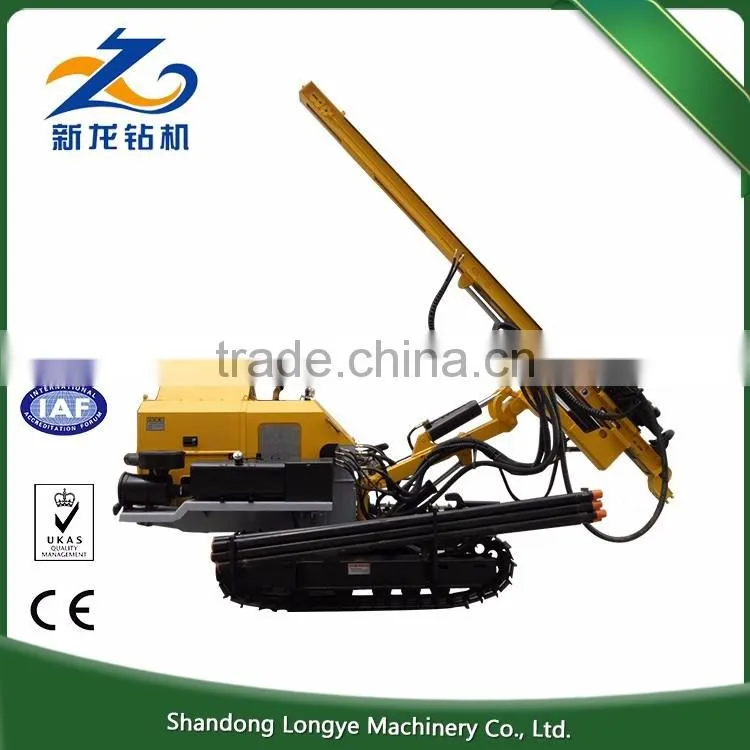

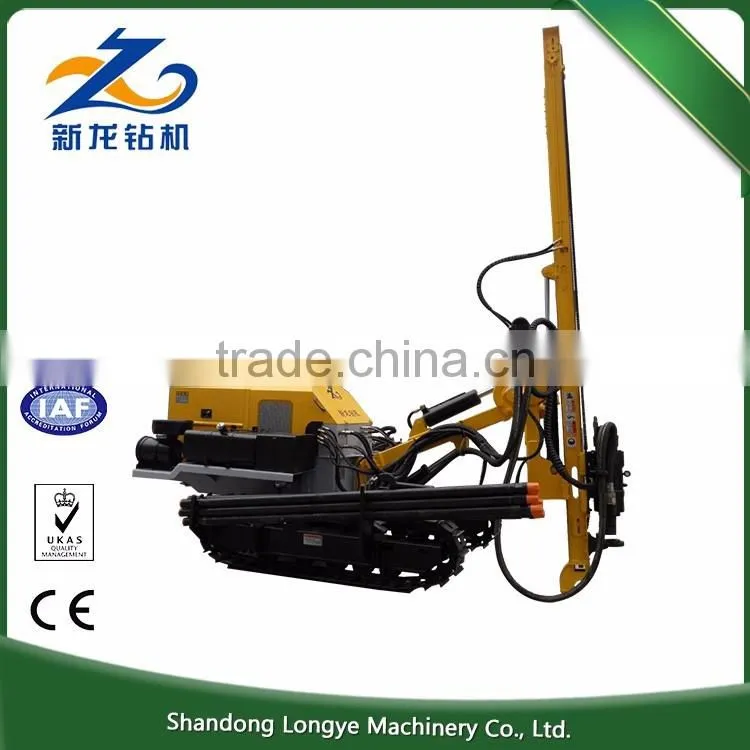

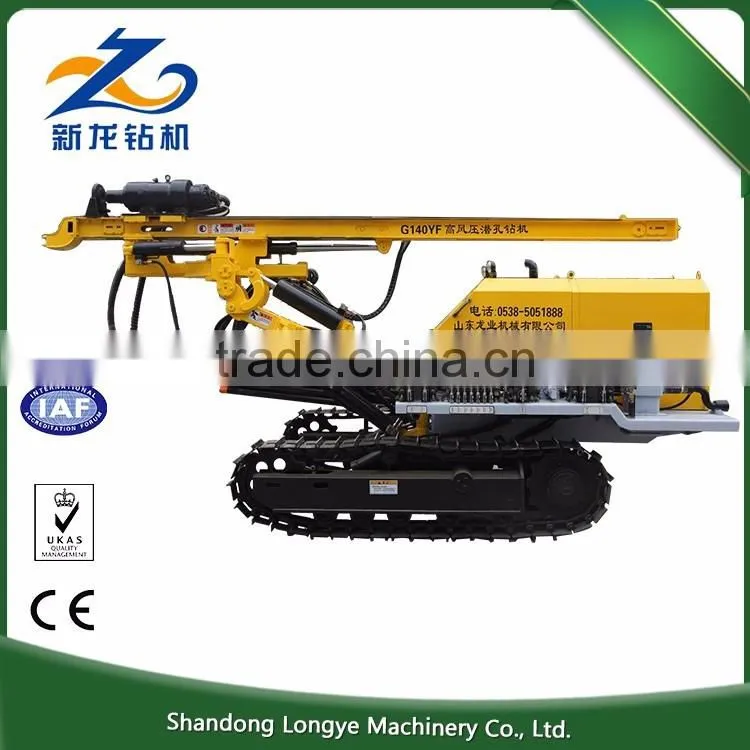

CTQ-G140YF High Air Pressure crawler drilling rig with a low energy consumption, high efficiency, easy to transport.The drilling rig controllerd by hydraulic systems,only DTH hammer consume air, it saves purchase cost of a complete cost of equipment, The Rotary system adopt a new motor,in order to maintain large output of rotary torque, when dragging air compressor, it is mobile and flexible,strong climbing ability, suitable for rugged ground operations.This rig has high drilling efficiency, easy Maintenance, high reliability, better use for mining, highway, water conservancy, power station construction and other blasting hole projects.
Main technical parameters
Air pressure(Mpa) | 1.05-2.46 |
Air consumption (m3/min) | 10-20 |
Bore diameter (mm) | 115-140 |
Bore depth (m) | 60 |
Once promotion(mm) | 3000 |
Walk speed (kw/h) | 0-2.5 |
For rock | F=6-20 |
Host power(kw) | 56 |
Skid pitch(.) | up and down total 100 |
Skid swing angle(.) | up and down total 100 |
Boom pitch(.) | Left and right total 60 |
Boom swing angle(.) | Left and right total 70 |
Rotation speed(r/min) | 0-126 |
weight(Kg) | 4800 |
Dimension(L*W*H) (mm) | 5270*1960*2300 |
Shandong Longye Machinary Co., Ltd. is specialized in the production of hydraulic pressure down-hole drilling rigs, engineering drills and water well drilling rigs. Our company is a backbone enterprise in the industry.
Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise.
Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.
Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.
On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
