High performance SLY500 truck mounted 150m water well drilling machine
- 50 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
Product Details
Condition: | New | Type: | Other, water well drilling rig | Power Type: | Diesel |
Place of Origin: | Shandong, China | Brand Name: | longye | Model Number: | SLY500 |
Usage: | Water Well | Dimension(L*W*H): | 5300*2100*2700 | Weight: | 6700kg |
Certification: | CE / ISO | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

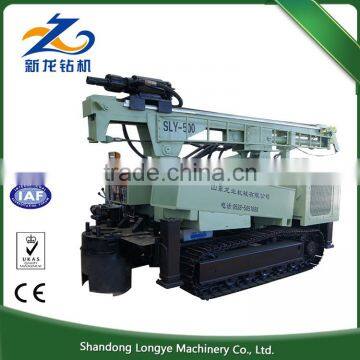

SLY500 track-type water well drilling machine
SLY500 track-type water well drilling machine is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Main technical parameters
Bore diameter(mm) | 115-350 |
Bore depth(m) | 213 |
Walk speed(km/h) | 0-2.5 |
For rock | F=6-20 |
Air pressure(Mpa) | 1.05-3.0 |
Air consumption(m3/min) | 16-30 |
Once promotion(mm) | 3000 |
Skid max angle(.) | 90 |
Maximum height from the ground(mm) | 320 |
Rotation Speed(r/min) | 0-100 |
Rotation torque(Nm) | 3900 |
Lifting power(T) | 8 |
Climb ability(.) | 25 |
Dimension(L*W*H)(mm) | 5300*2100*2700 |
weight(Kg) | 6700 |
Shandong Longye Machinary Co., Ltd. is specialized in the production of hydraulic pressure down-hole drilling rigs, engineering drills and water well drilling rigs. Our company is a backbone enterprise in the industry.
Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise.
Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.
Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.
On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
