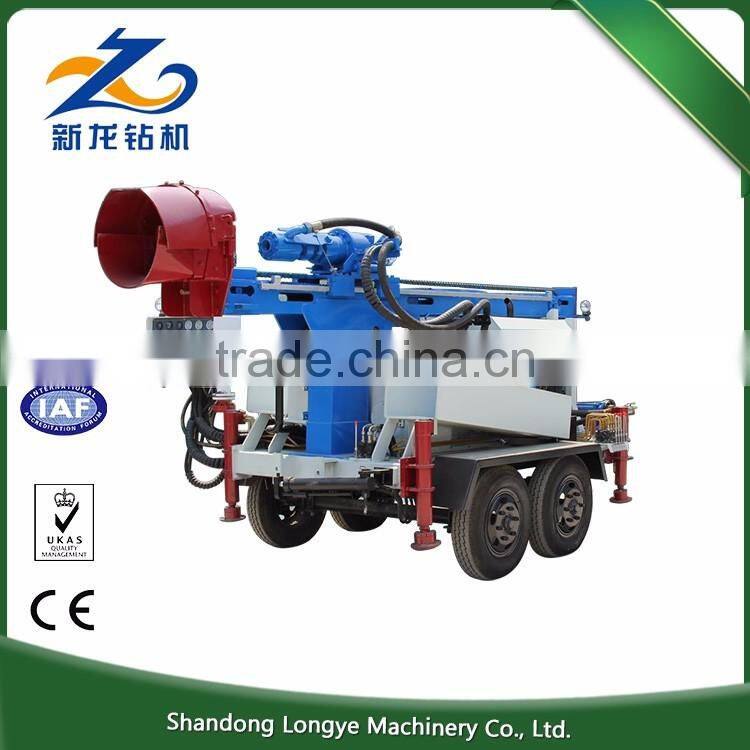

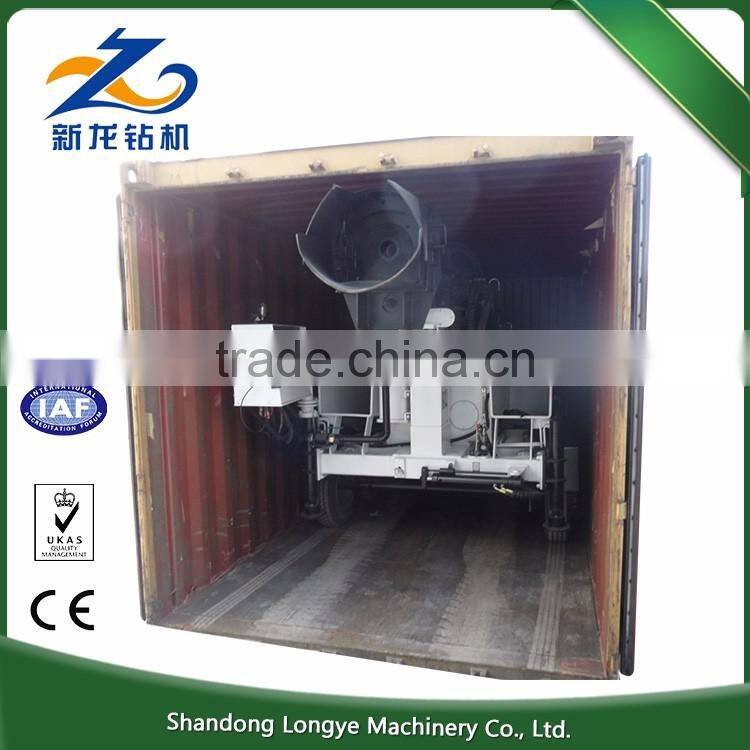

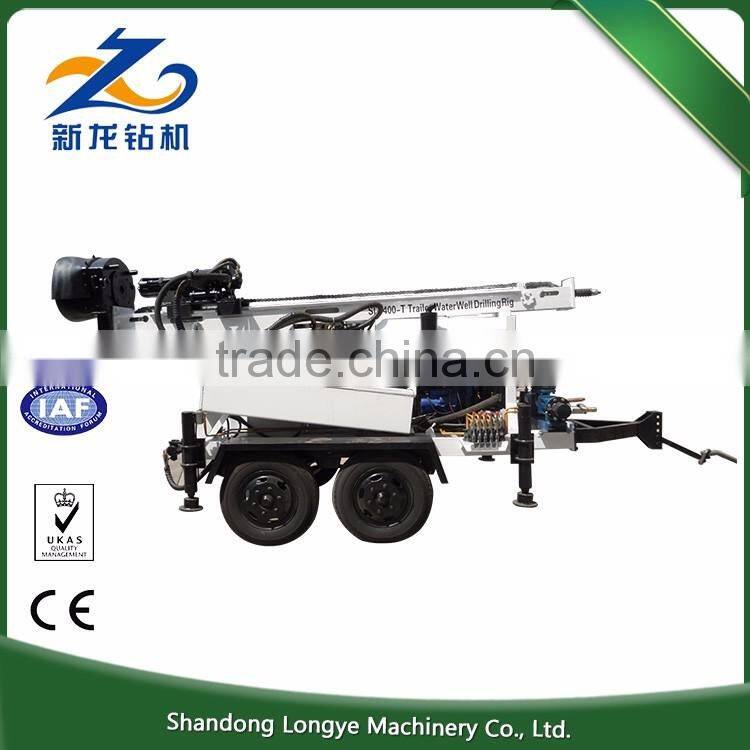

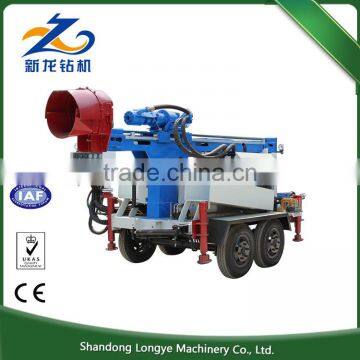

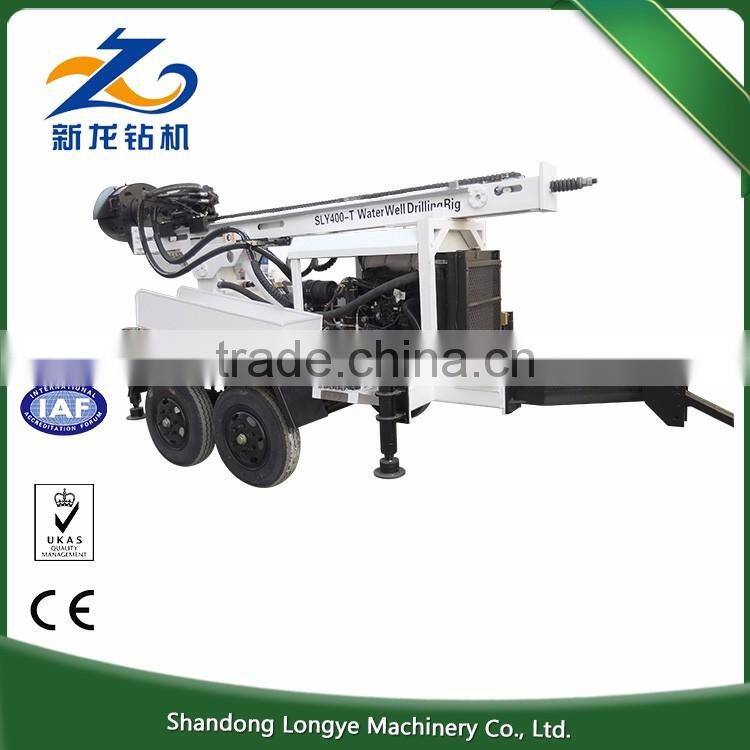

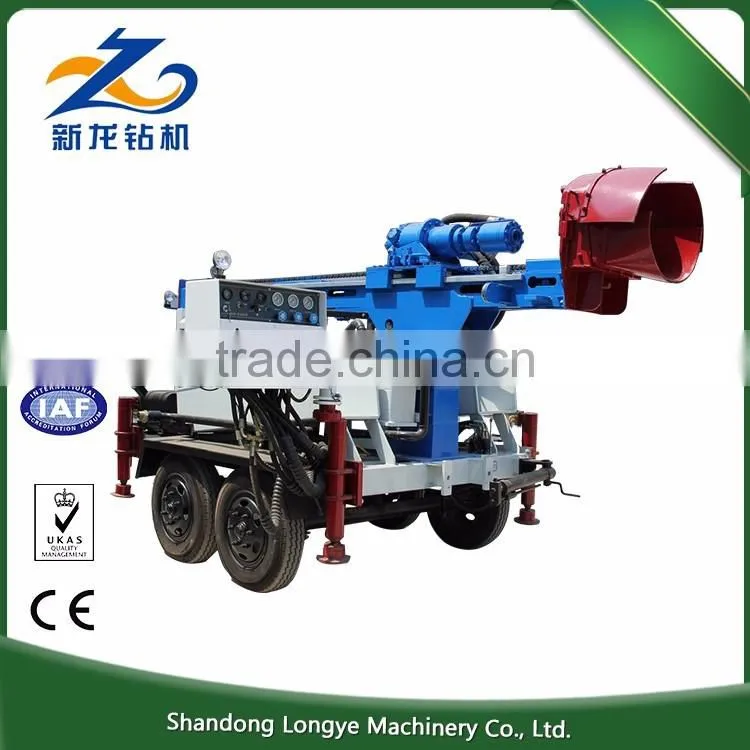

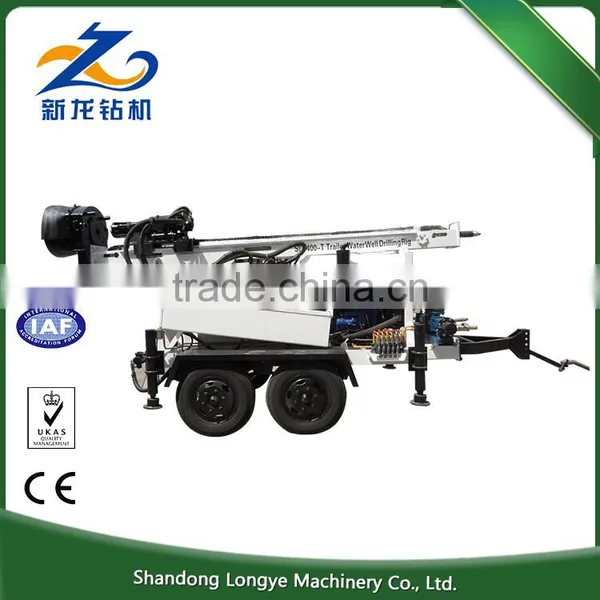

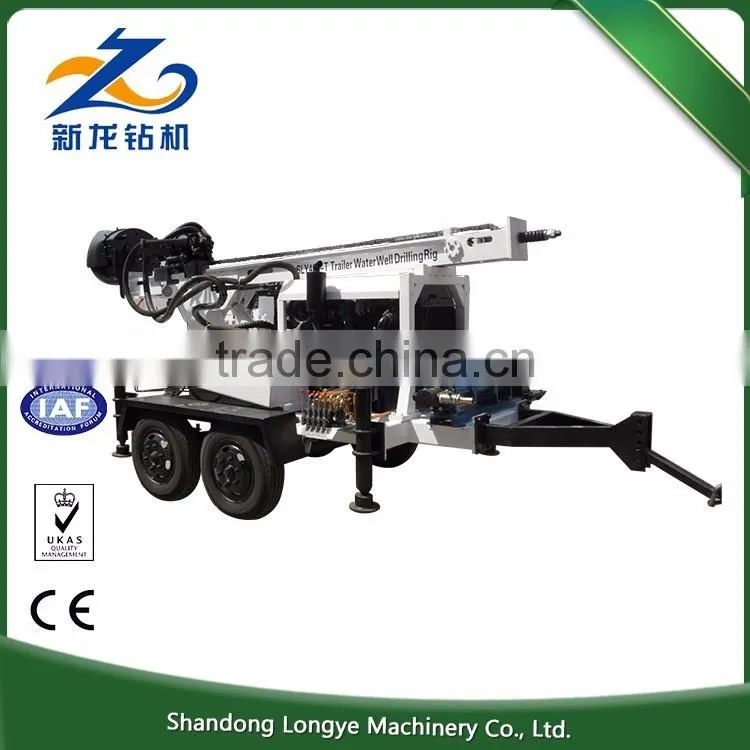

water well drilling machine (SLY400-t )
This machine has the character of light,high efficiency,multi-function.According to different conditions,it uses air,foam or slurry to rotate and drill.
Application
it is widely used in industrial and agriculture water project,drill water well,inspect well and other exploration borehole.which especially used for drilling geothermal heating stove.
Technical parameter
Description | SLY400-T |
Geology drilled | All kinds |
Drill depth | 0-200 m |
Drilling Diameter | 90 - 220mm |
Drill system and operation | Hydraulic |
Rig assembly | 1 complete unit, main engine driven |
Mobility | 4 wheel tandem road trailer |
Transportation | Towed by pickup or light truck |
Drill pipe (diameter x length) | 60/76 mm x 2 m |
Mud pump | 400 L/min@ 6 bar progressive pump |
Foam pump | Hydraulic driven, mounted on rig |
Weight | 3400kg |
ROTARYHEAD&FEED SYSTEM |
|
Top head drive by a hydraulic cylinder through heavy duty chain. | |
Rotation torque | 2232 N-m |
Speed | 0 - 34 rpm. |
Head travel | 2.25 meter |
Pull-up capacity | 3813.09 kg. |
Pull-up speed-slow feed | 1.22 meter/min |
Pull-up speed-rapid feed | 12.26 meter/min |
Pull-down speed-slow feed | 0-1.88 meter/min |
Pull-down speed-rapid feed | 0- 16.90 meter/min |
DRILL PIPE |
|
Drill pipe length | 2.00 meter |
Drill pipe diameter | 76 mm |
Thread | 2 3/8 REG API Mod |
Power pack speed | 3000 rpm. |
Load power pack | max. 47 hp. |
MUD PUMP |
|
Flow capacity | 400 liter/min |
Max. working pressure | 6 bar |
HYDRAULIC SYSTEM |
|
Hydraulic tank capacity | 140 liter |
STABILIZING JACK |
|
2 front jacks and 2 rear jacks. |
|
Bore | 80 mm. |
Stroke | 480 mm |
AIR SYSTEM |
|
Lubricator of venturi-type for down-the-hole drills. | |
Max. pressure | 40 bar |
Oil tank capacity | 8 liter |
DIMENSIONS |
|
Overall length | 4540 mm |
Overall width | 1750 mm |
Overall height | 1900 mm |
Diesel engine |
|
Power | 45KW |
MODEL | YC2115 |
Shandong Longye Machinary Co., Ltd. is specialized in the production of hydraulic pressure down-hole drilling rigs, engineering drills and water well drilling rigs. Our company is a backbone enterprise in the industry.
Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise.
Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.
Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.
On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
