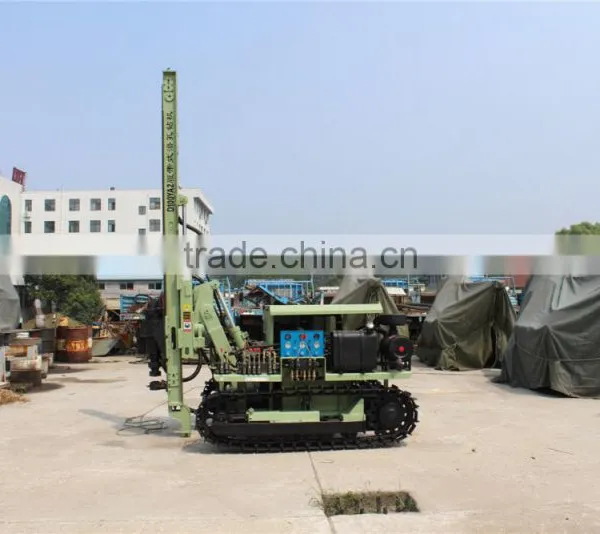

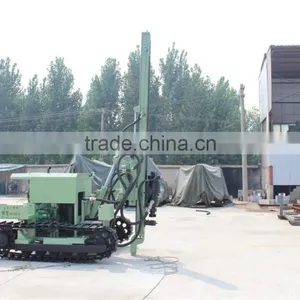

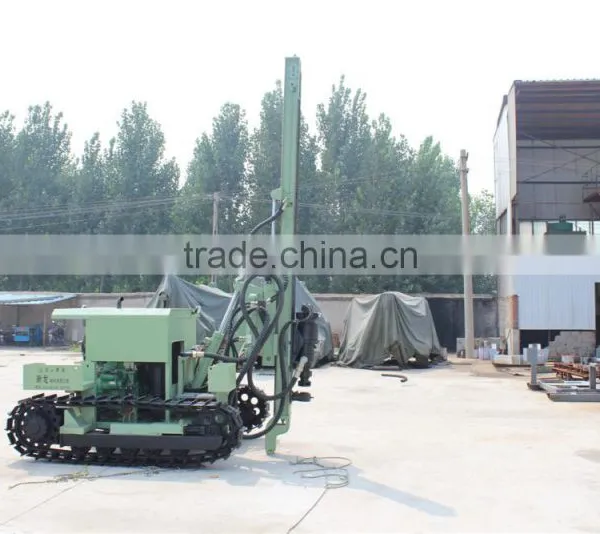

High Air Pressure Crawler Hydraulic Drilling Rig D100YA2-2 For Depth 30 Meters
- 110 Set / Sets per Month
- QingDao port or as your requirement
- T/T
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Shandong, China | Brand Name: | LongYe | Model Number: | CTQ-D100YA2-2 |
Usage: | Coal | Voltage: | 24 v | Power(W): | 33000 |
Dimension(L*W*H): | 4300*2130*2160 mm | Weight: | 2900kg | Certification: | CE&ISO |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
product superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5.the pump desigh , can save the maintenance cost
6.the work efficiency is very high .

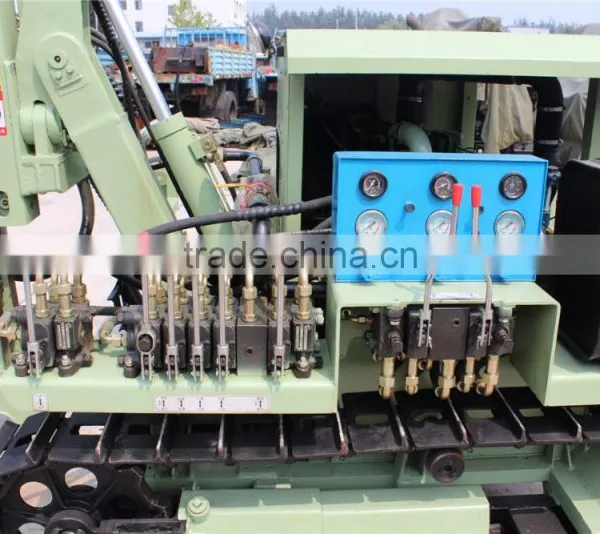

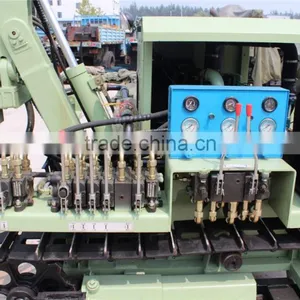

7. large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.
CTQ-D100YA2-2 crawler hydraulic drilling rig, adopt new hydraulic rotary motor ,increase the rotation gearbox with high speed, torque, and low failure rate. Low air consumption of the rig, the shift hole becomes convenient, use air filter and oil filter, reduce engine wear, thereby increasing the life of the diesel engine. The rig structure is compact, the minimum radius of gyration is 2.8m, while advancing the skid compensation function.when drilling the skid support on the ground, and hole have good stability.

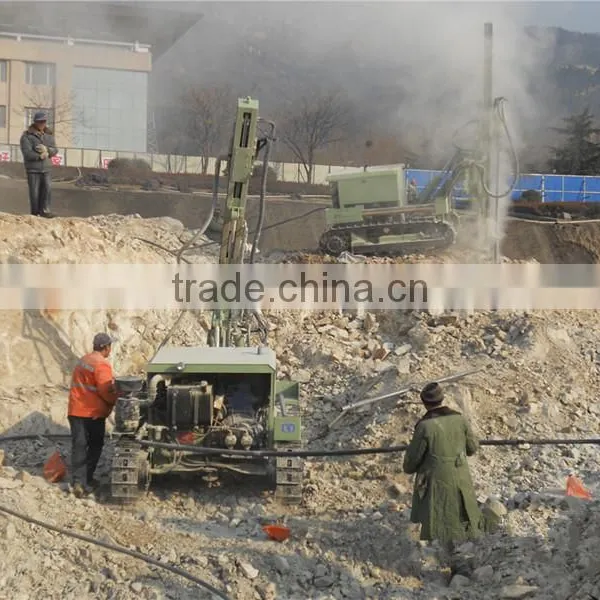

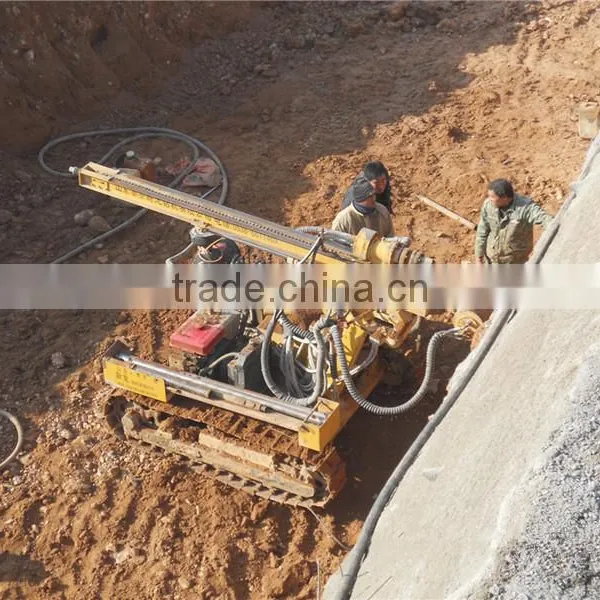

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.
Total Weight(T) | 2.8 |
Drilling diameter(mm) | 90--130 |
Dimension (L * W * H)mm | 4100x2030x2020 |
Drilling depth(m) | 30 |
Travelling speed(km/h) | 2 |
Once promotion distance(m) | 2 |
Grade ability(°) | 30 |
Working pressure(MPa ) | 0.7-1.4 |
Chassis ground clearance(mm) | 260 |
Air consumption(m3/min) | 7-15 |
Skid pitch(.) | up and down 100 |
Host Power(kw) | 33kw |
Sliding tilt swing(.) | L35,R10 |
For rock | F=6-20 |
Skid compensation(mm) | 900 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.The company covers an area of 35,000square meters,more than 160 employees,20 engineering and technicians, all are engaged in specialized drilling rig mechanical design talents.
We pride ourselves in our ability to offer the right product at the right price.
We develop long term relationships with our suppliers and buyers.
We have a professional attitude and will offer the best service.
