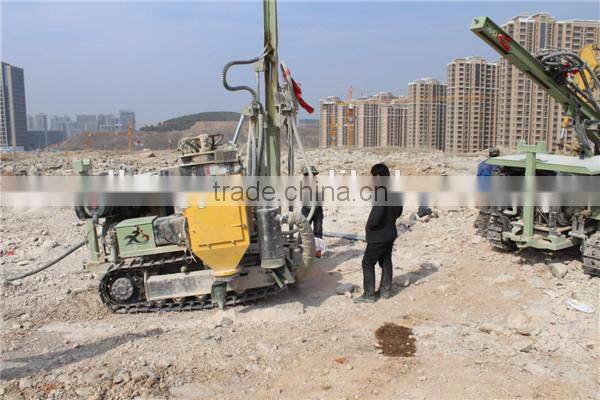

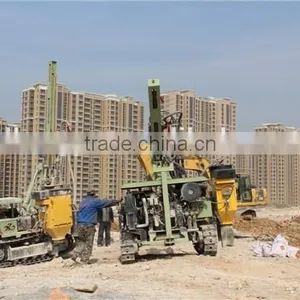

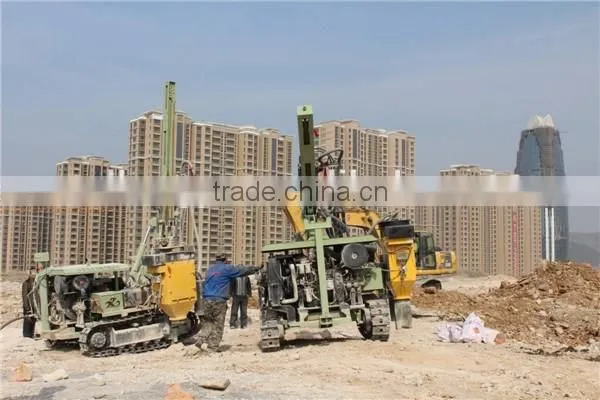

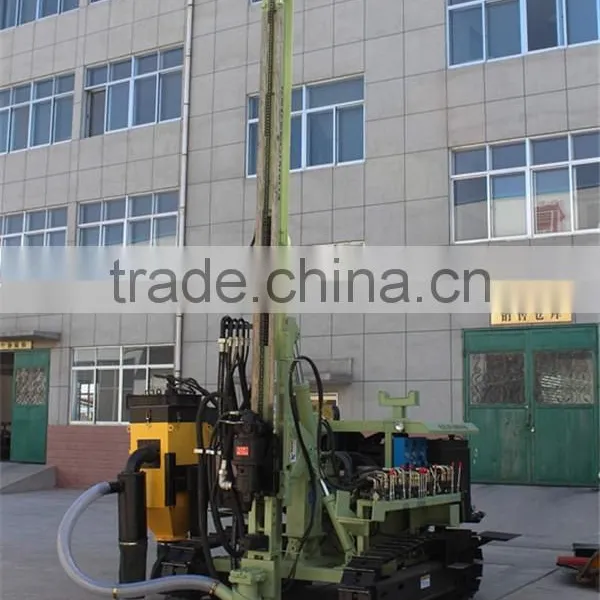

Z115Y 40m all hydraulic operated drill machine with CE&ISO certification
- 130 Set / Sets per Month
- QingDao Port or as your requirement
- T/T
-
3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
-
2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
-
The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
-
Coal mine tunnel drilling rig ZLJ350 head can be turned
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Shandong, China | Brand Name: | LongYe | Model Number: | CTQ-Z115Y |
| Usage: | Other, mine exploitation; piling anchor | Voltage: | 24 V | Power(W): | 56 kw |
| Dimension(L*W*H): | 5270*1950*2300 (mm) | Weight: | 4170kg | Certification: | CE&ISO |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
product superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5.the pump desigh , can save the maintenance cost
6.the work efficiency is very high .
7.large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.
CTQ-Z115Y crawler hydraulic drilling rig, using a new hydraulic technology,with low air consumption,large rotary torque,
conveniently move the hole. The drilling rig’s structure is compact .while promoting a retractable sliding shelf
compensation , drilling when the sliding frame support on the ground, drilling and good stability. Use Z115Y rig reliable
and high efficiency in drilling rock. The drilling speed is low air pressure of 1-2 times the rig is a construction unit to reduce the cost and enhance efficiency.The drilling rig is mainly suitable for open mining , water conservancy, power plants, road building and other Rock blasting whole drilling.
Bore diamete(mm) | 90-130mm |
Bore depth(m) | 40m |
Walk speed | 0-2.5kw/h |
For rock | F=6-20 |
Air pressure(Mpa) | 0.7-1.6Mpa |
Air consumption(m³/min) | 7-15m³/min |
Once promotion(mm) | 3000mm |
Skid pitch | 100° |
Swinging angle of skid | left and right 70 |
Rotation speed | 0-120r/min |
Host power | 56Kw |
Climb ability | 35° |
Dimension(L*W*H) | 5200*1950*2350(mm) |
For rock | F=6-20 |
Weight | 4170Kg |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, ngineering drills and water well drilling which are backbone enterprises.
