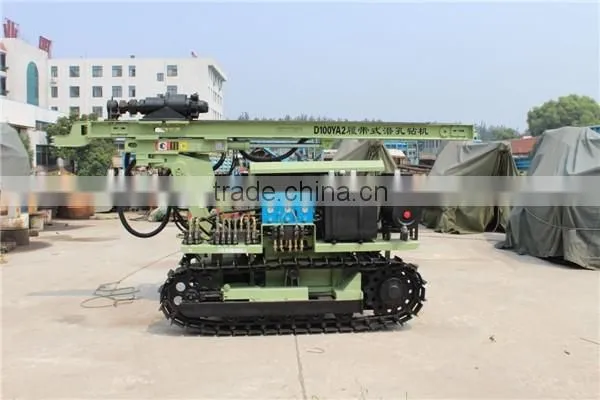

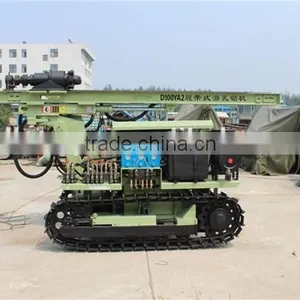

durable hot selling classic engineering constructional rotary drilling rig D100YA2
- 120 Set / Sets per Month
- QingDao port or as your requirement
- T/T
-
3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
-
2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
-
The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
-
Coal mine tunnel drilling rig ZLJ350 head can be turned
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Shandong, China | Brand Name: | LongYe Brand | Model Number: | CTQ-D100YA2 |
| Usage: | Other, rock drilling blast hole; reinforce basis | Voltage: | 24 v | Power(W): | 33000 |
| Dimension(L*W*H): | 4300*2030*2160 (mm) | Weight: | 2860kg | Certification: | CE / ISO |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
product superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3. our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4. the YuChai Brand diesel engine life is very long
5. the pump desigh , can save the maintenance cost
6. the work efficiency is very high .
7. large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.

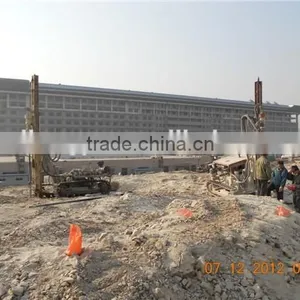

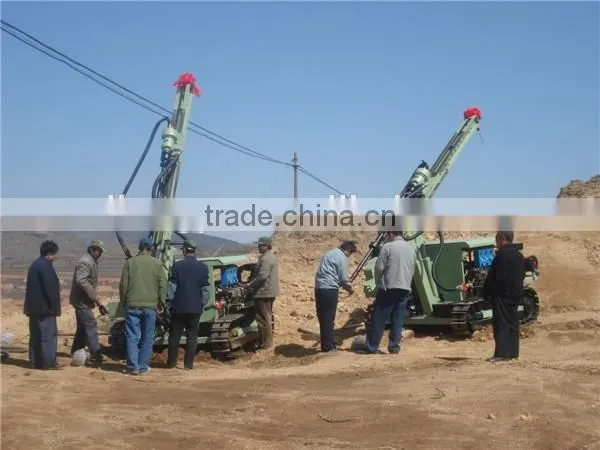

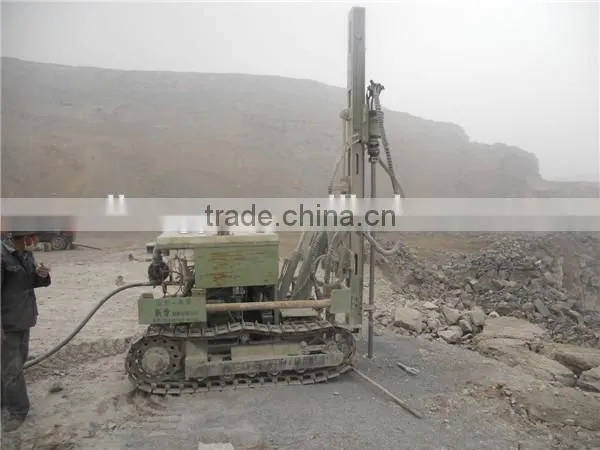

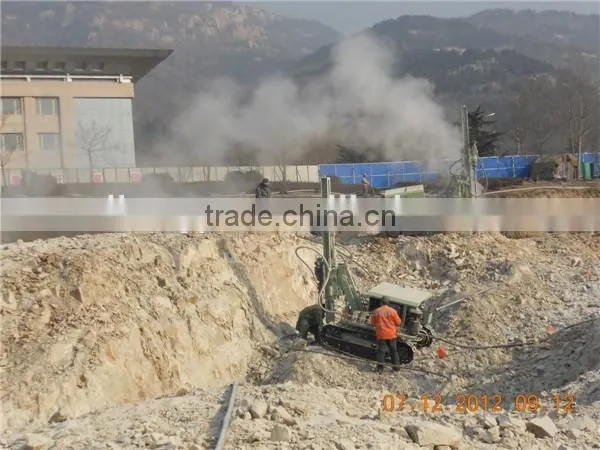

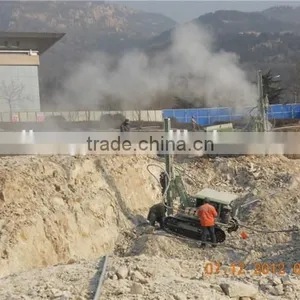

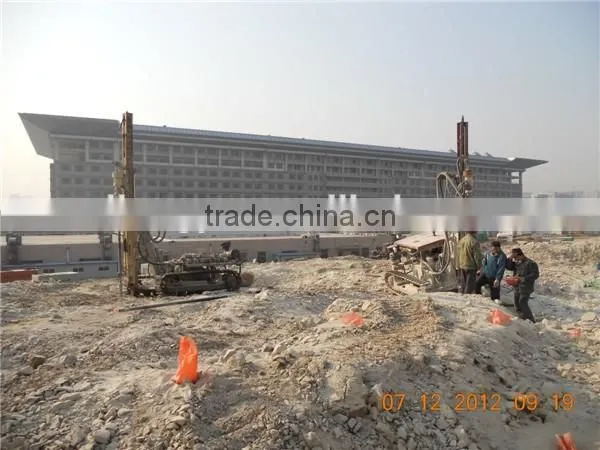

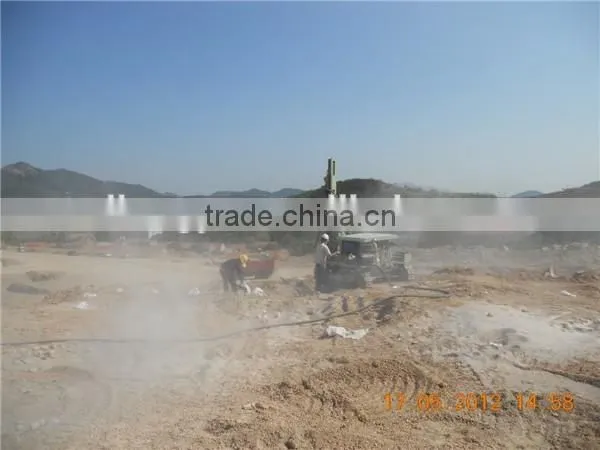

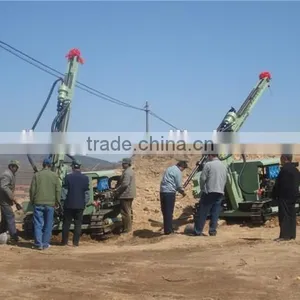

CTQ-D100YA2 crawler hydraulic drilling rig ,the smallest turning radius of only 2.8m,while promoting a retractable sliding shelf compensation,using a new hydraulic technology,is mainly suitable for open mining ,hydro-power plants, electric power stations,road building and other rock drilling blasting holes.
Total Weight(T) | 2.8 |
Drilling diameter(mm) | 90--130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth(m) | 30 |
Travelling speed(km/h) | 2 |
Once promotion distance(m) | 2 |
Climb ability(.) | 30 |
Working pressure(MPa) | 0.7-1.4 |
Chassis ground clearance(mm) | 250 |
Air consumption(m3/min) | 7-15 |
Skid pitch(.) | up and down 100 |
Host Power(kw) | 33kw |
Sliding tilt swing(.) | L35,R10 |
For rock | F=6-20 |
Skid compensation(mm) | 900 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
