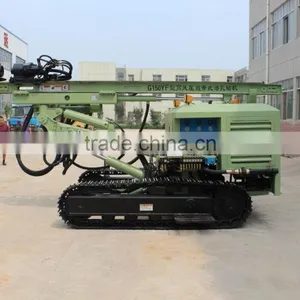

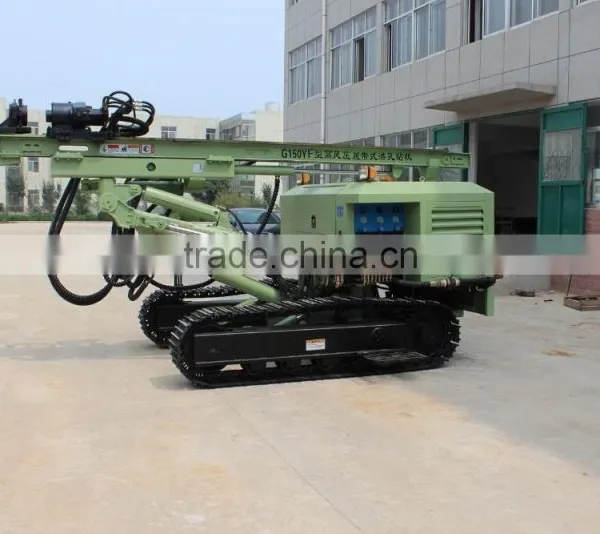

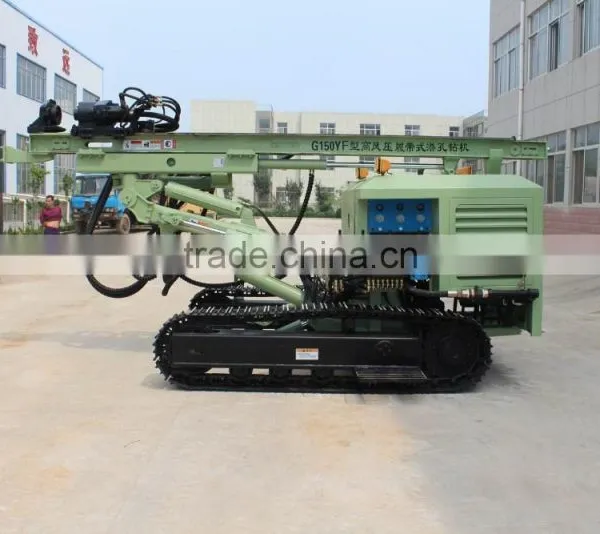

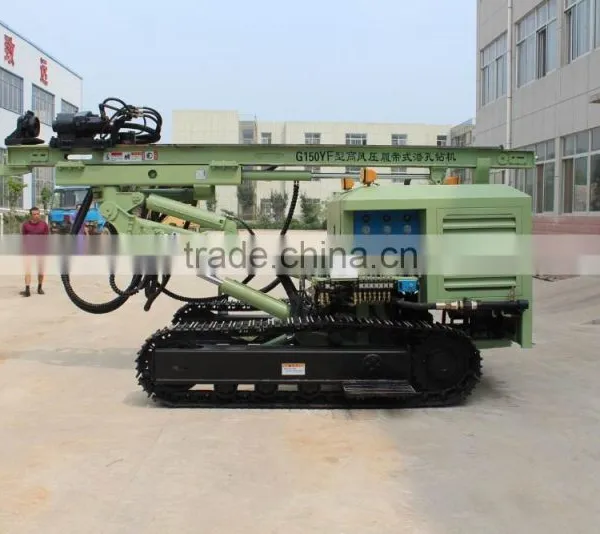

slope projection and soil nailing drilling rig CTQ-G150YF
- 110 Set / Sets per Month
- QingDao Port or as your requirement
- T/T
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Shandong, China | Brand Name: | LongYe Brand | Model Number: | CTQ-G150YF |
Usage: | Ore | Voltage: | 24 v | Power(W): | 56000 |
Dimension(L*W*H): | 5800*2070*2400(mm) | Weight: | 6300 kg | Certification: | CE&ISO |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

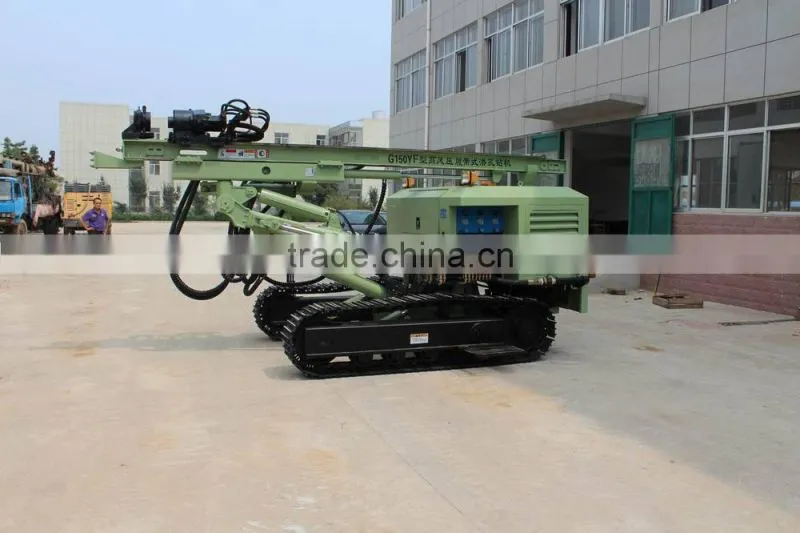

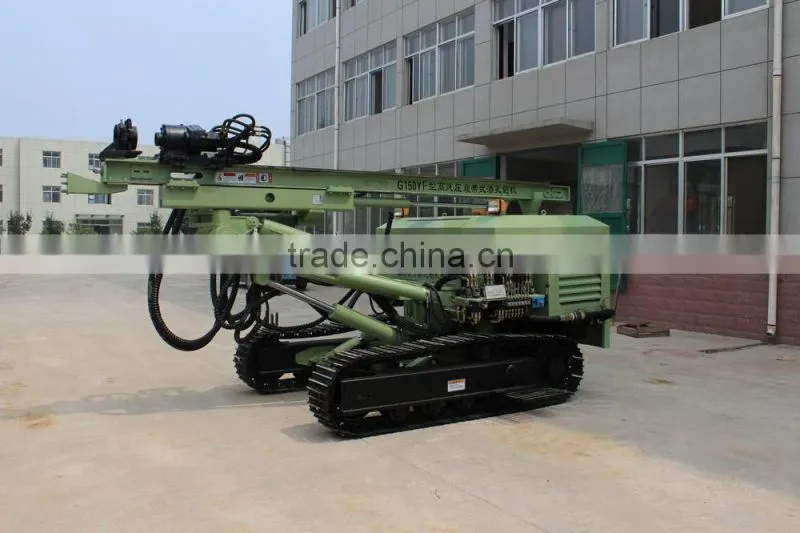

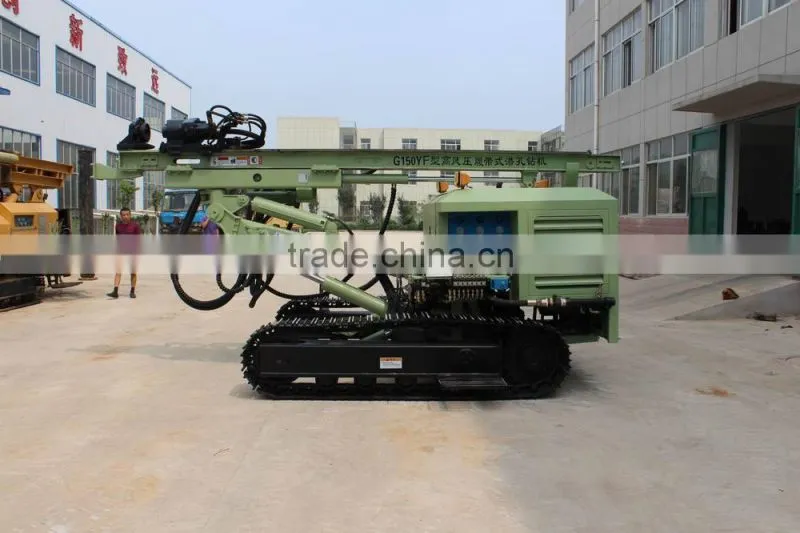

slope projection and soil nailing drilling rig CTQ-G150YF
superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5. the pump desigh , can save the maintenance cost
6. The work efficiency is very high .
7. Large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.
CTQ-G150YF High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency , easy to transport and field construction superior technical performance,vehicle movement organizations from the hydraulic
system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs . Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output.In chassis system , there are a pair of floating cylinders floating in the range of 15 degree to adjust the balance of drilling rig when it works in rugged mountain road,it is very helpful for diesel engine and vertical positioning of drilling rod.This type of the machine is optimism choice in opening are mining hydro-power plant, electric power stations , and road building for exploration the stone.
Working pressure (Mpa) | 1.2-2.46 |
Air consumption (m3/min) | 11-25 |
Drilling diameter (mm) | 105-165 |
Drilling depth (m) | level 60m,down 30m |
Once promotion distance(mm) | 3000 |
Drill rod diameter (mm) | 76 |
Skid compensation(mm) | 1200 |
Maximum lift force(N) | 26000 |
Guide shell lutting(.) | up and down total 100 |
Guide shell swing angle(.) | Left and right total 100 |
Boom lift angle(.) | up and down total 70 |
Boom swing angle(.) | Left 45,right 45 |
Climb ability(.) | 30 |
Chassis ground clearance(mm) | 300 |
Travelling speed (Km/h) | 0-2.5 |
Rotary speed(r/min) | 0-90 |
Rotary torque(N.m) | 3000 |
Host Power(Km) | 56 |
For rock | f=6-20 |
Total Weight(Kg) | 6300 |
Dimension (L * W * H)mm | 5800*2070*2400 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
