SLYDX-2 Diamond Core Drilling Rig

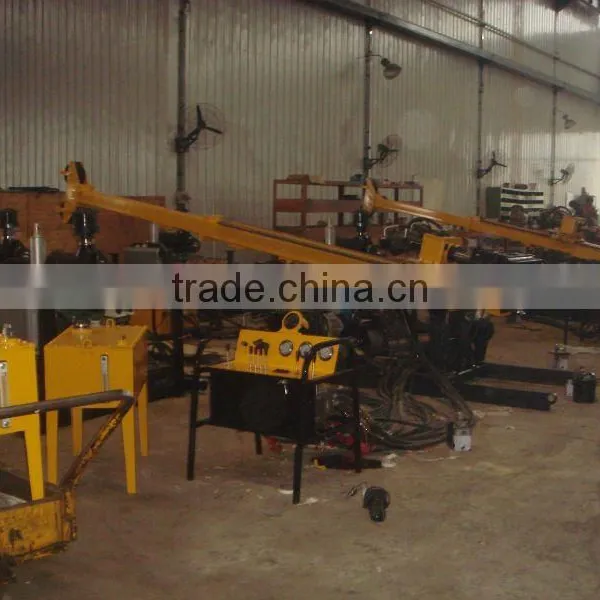

SLYDX-2 Diamond Core Drilling Rig photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Brand Name:
longye
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Brand Name longye
Model Number SLYDX-2
Usage Other

Specifications

SLYDX-2 diamond core drilling rig is used for geological exploration.
Drilling capacity BQ350M NQ230M HQ120M

SLYDX-2 Diamond Core Drilling Rig Technical Data

 Power Unit



Modle: 5 sets Double Cylinder Diesel Engine R2V870



Cooling Method: air



Rated Power of single Engine: 11 KW/59Kg (14.75HP/130Lb) Rated Speed: 2500rpm



3.   Drill head



Max. spindle speed     (r/min) -----------------------------0  to 900



Max. spindle torque    --------------------------------------334-930  N·m (246-685 lbf·ft)



4.   Feeding system (feed with hydraulic cylinder)



Feeding stroke ------------------------------------------------1700mm   (67inch) Lifting Capacity-----------------------------------------------50KN   (11240 lbf) Feeding Capacity ---------------------------------------------  25KN (5620 lbf)



5.   Main Hoist



Lifting Capacity (single-wire,bare drum) -----------------18KN  (4046 lbf) Lifting Speed -----------------------------------------------------84m/min   (276feet/min) Rope Capacity----------------------------------------------------30m(98.4feet)

Steel Wire dia.----------------------------------------------------12mm(0.47inch)



6.   Wire line Winch



Lifting Capacity(single-wire,bare  drum) -------------------8.4KN  (1888 lbf)



Lifting Speed -----------------------------------------------------90-240m/min(295-787feet/min) Rope Capacity--------------------------------------------------   500m(1640feet)

Steel Wire dia.---------------------------------------------------   6mm(0.24inch)



7.   Mud Pump



Model -------------------------------------------------------------BW-100A



8.   Overall Dimensions of main machine (L×W×H) ---------3500×1500×1300mm(138×59×51  inch)



9.   Diamensions of the disassembled Parts:



The largest part not more than 100 Kg(excluding mud pump)
