Help CenterSolar Power Station Usage Pile Driver ,pile Drilling Machine for Sale
Related Products
-
pv Solar Station Mounting Usage Pile Driver MZ130Y-2 With CE&ISO CertificateNegotiableMOQ: 1 Set -
Solar Station Construction Pile Driver MZ130Y-2 for SaleNegotiableMOQ: 1 Set
-
Photovoltaic Engineering Construction Piling Driver MZ130Y-2 on SaleNegotiableMOQ: 1 Set
-
Solar Power Station Piling Machine MZ130Y-2 for SaleNegotiableMOQ: 1 Set
-
Solar System Pile Drive Machine MZ130Y-2 for SaleNegotiableMOQ: 1 Set
product superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5.the pump desigh , can save the maintenance cost
6.the work efficiency is very high .
7.large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.

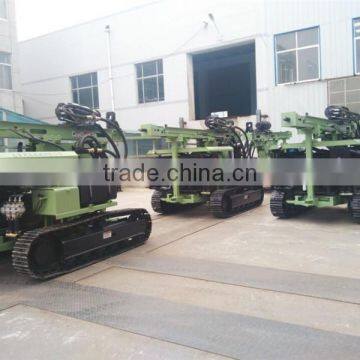

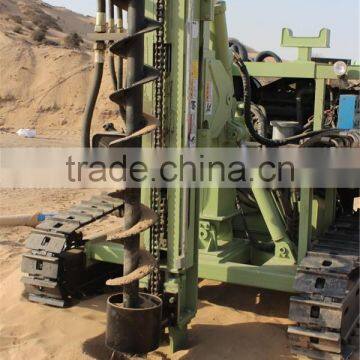

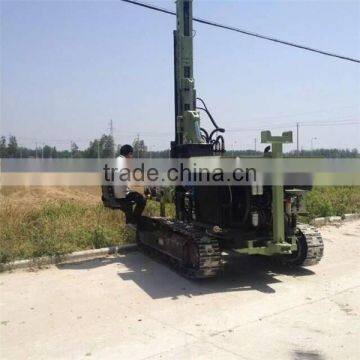

MZ130Y-2 hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. MZ130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency .

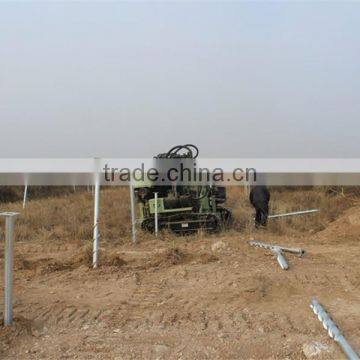

The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
Air pressure (Mpa) |
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Air consumption (m3/min) |
10-26 |
Bore diameter(hammer) (mm) |
90-300mm |
Bore depth (m) |
20-100 |
Once promotion(mm) |
2000 |
Screw pipe diameter (mm) |
76/89 |
For rock |
F=6-20 |
Bore diameter(screw)(mm) |
Max 400mm |
Skid pitch(.) |
100 |
Swinging angle of skid(.) |
Left and right total 40° |
Bore depth(m) |
0-30 |
Screw pipe diameter(mm) |
130-400 |
Rotation speed<=""> |
0-70 |
Host power(kw) |
56 |
Climb ability(.) |
35 |
Walk speed(kw/h) |
0-2.5 |
weight(Kg) |
4360 |
Dimension(L*W*H)mm |
4460*1950*2460 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
