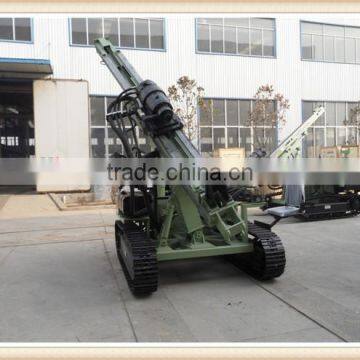

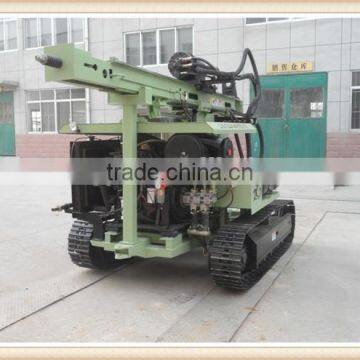

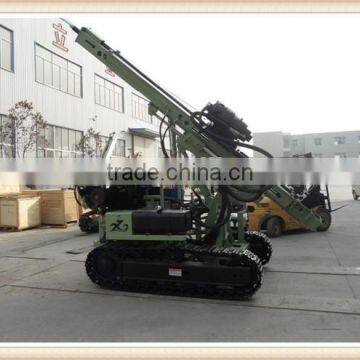

most popular multi-function crawler rotary pv spiral pile drilling rig MZ130Y-2
- 110 Set / Sets per Month
- QingDao Port or as your requirement
- T/T
-
Coal mine tunnel drilling rig ZLJ350 head can be turned
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Shandong, China | Brand Name: | LongYe Brand | Model Number: | MZ130Y-2 |
| Usage: | Other, driving screw pile , blasting hole | Voltage: | 24 v | Power(W): | 56000 |
| Dimension(L*W*H): | 4460*1950*2460 (mm) | Weight: | 4360 kg | Certification: | CE&ISO |
| Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
product superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3. our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4. the YuChai Brand diesel engine life is very long
5. the pump desigh , can save the maintenance cost
6. the work efficiency is very high .
7. Large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.
MZ130Y-2 hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. MZ130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency .

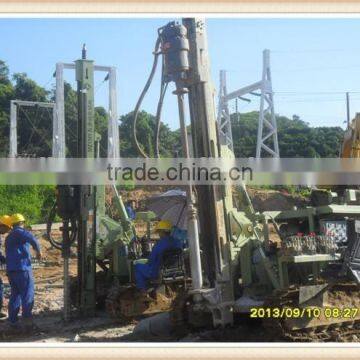

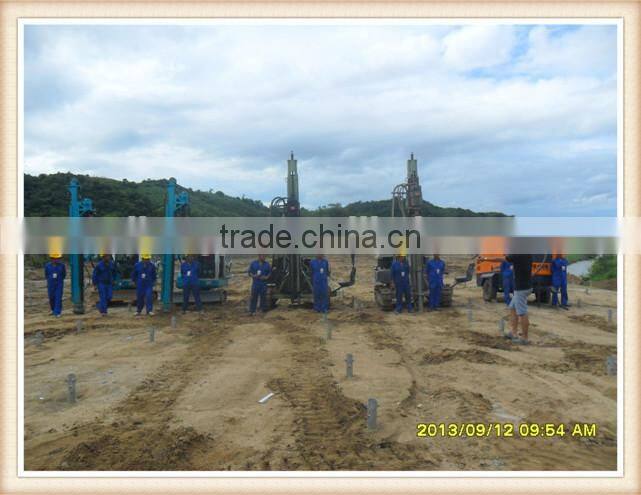

The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
Air pressure (Mpa) | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Air consumption (m3/min) | 10-26 |
Bore diameter(hammer) (mm) | 90-300mm |
Bore depth (m) | 20-100 |
Once promotion(mm) | 2000 |
Screw pipe diameter (mm) | 76/89 |
For rock | F=6-20 |
Bore diameter(screw)(mm) | Max 400mm |
Skid pitch(.) | 100 |
Swinging angle of skid(.) | Left and right total 40° |
Bore depth(m) | 0-30 |
Screw pipe diameter(mm) | 130-400 |
Rotation speed<=""> | 0-70 |
Host power(kw) | 56 |
Climb ability(.) | 35 |
Walk speed(kw/h) | 0-2.5 |
weight(Kg) | 4360 |
Dimension(L*W*H)mm | 4460*1950*2460 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
