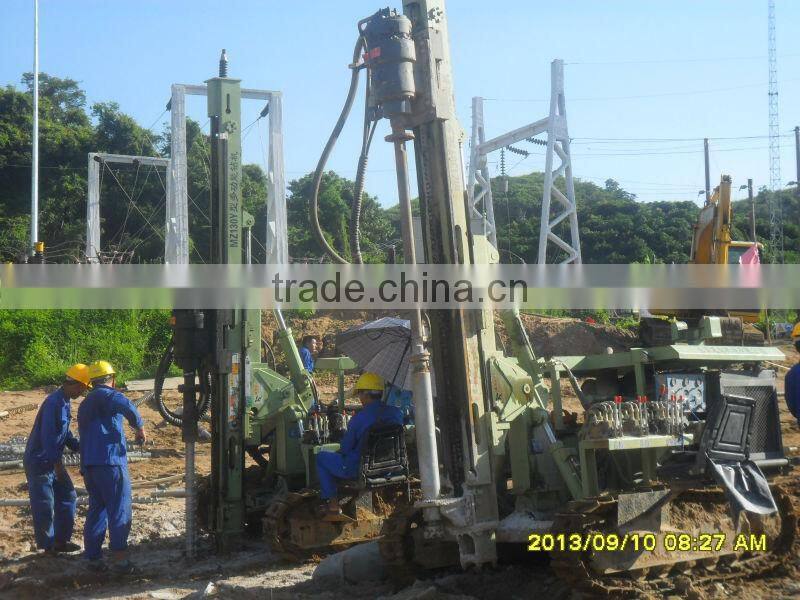

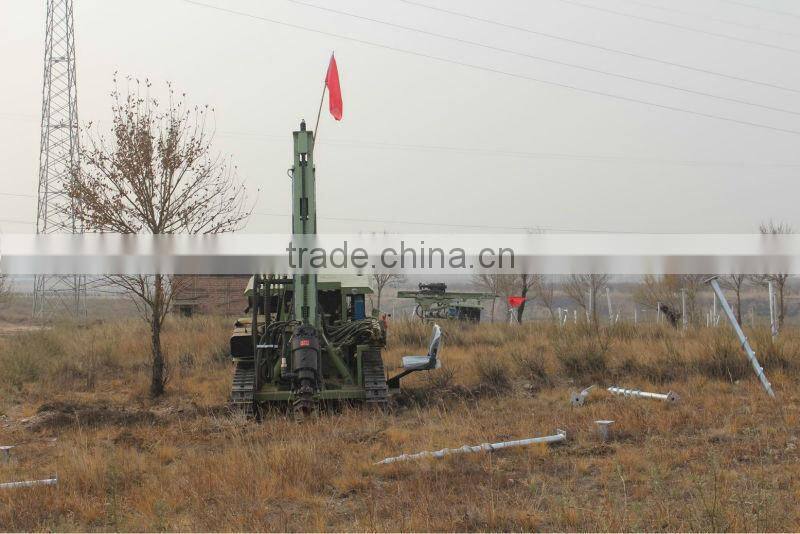

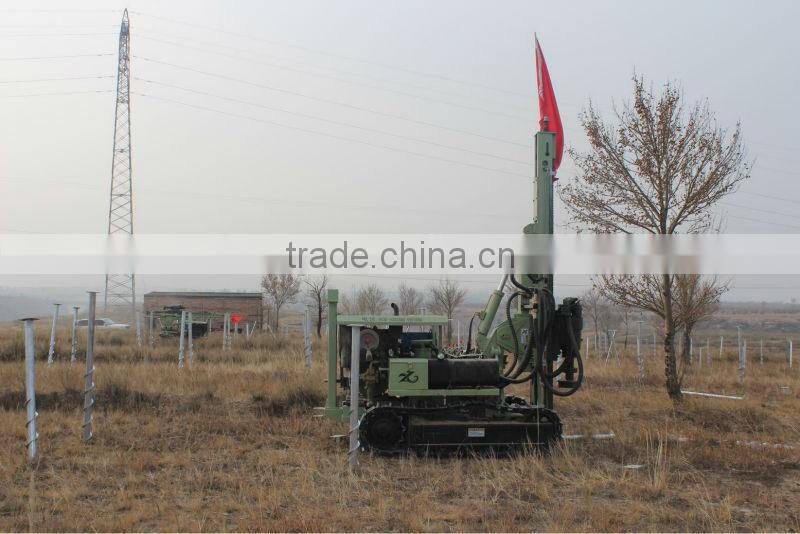

drilling machine MZ130y use for solar photovoltaic(PV) projects

Specifications

MZ130Y solar photovoltaic (pv) drilling rig
1.depth:40-80m
2.hole size:100-400mm
3.it can drill from different direction





MZ130Y  solar photovoltaic (pv) drilling rig

adopt new-style hydraulic technique ,large rotation torque.the structure of the drilling rig is compact, During drilling the slide-skid are support on the ground to ensure the drilling has good stability.The usage of MZ130Y drilling rig has realiable property,high efficiency in anchor drilling.

Application:

MZ130Y crawler hydraulic drilling rig is mainly used in open cut ore mining,power station,road building for exploring the stone.

Working pressure	0.7-1.6Mpa
Air consumption	10-15m3/min
Bore diameter	90-400mm
Bore depth	Horizontal 40 down 30
Feed stroke	3000mm
Drill rod diameter	76mm
Guide compensation	900mm
Lifting force	24800N
Guide pitch	Up and down 45degree
Guide swing	Left 40 right30
Boom pitch	Up and down 60 degree
Boom swing	Left 90 right45
Climb ability	30 degree
Ground clearance	260mm
Walking speed	2.5km/h
Rotation speed	0-60r/min
Rotation torque	4600N.M
Motor power	55KW
Total weight	38000kg
dimension	4400*1900*2300
