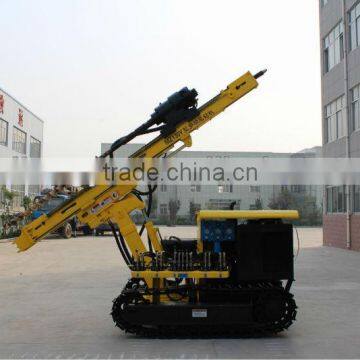

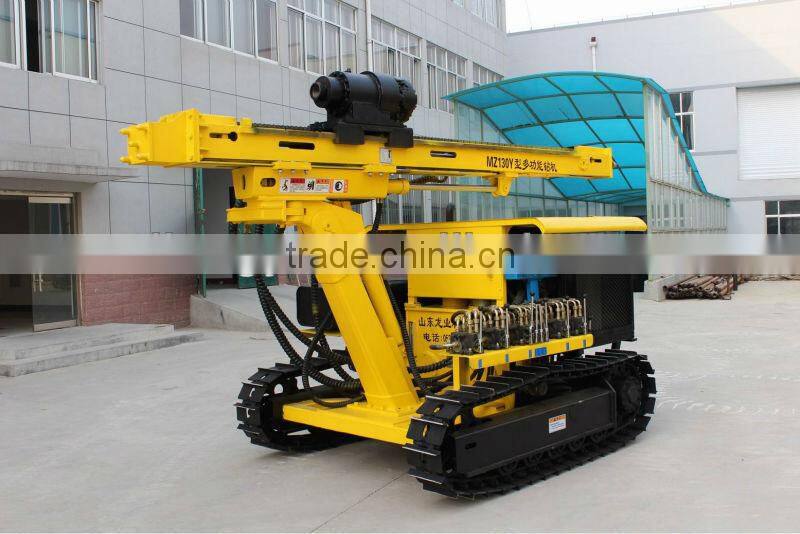

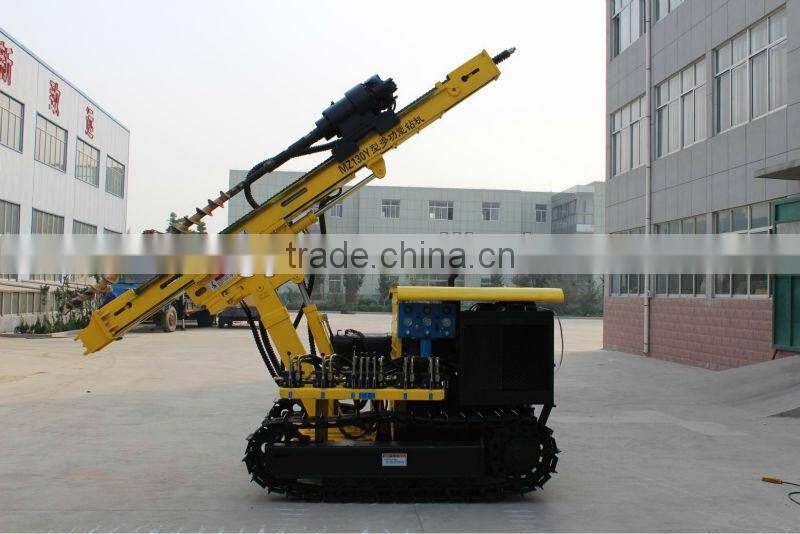

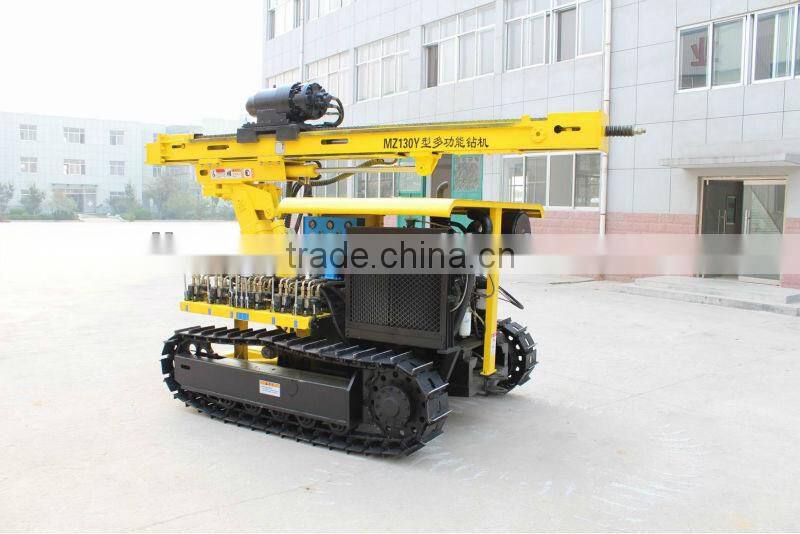

Drilling Rig MZ130y Use for Solar Energy Building
- QINGDAO
- T/T
You May Like
-
Hydralic Blasting Hole Rig(manufacturer)
-
Hydralic DTH Blasting Hole Rig
-
High Speed Solar Pile Hole Drilling Machine MZ130y for Sale
-
High Speed Solar Sprial Hole Drilling Machine MZ130y for Sale
-
CTQ-Z138YA Rock Mining Blasting Hydraulic DTH Drilling Rig
-
High Speed Solar Sprial Hole Drilling Machine,crawler Photovoltaic ,blasting Hole Drilling Rig MZ130y for Sale
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Place of Origin | Shandong, China | Brand Name | longye | |
| Model Number | MZ130Y | Usage | Ore | |
| Voltage | 220V | Power(W) | 56KW | |
| Dimension(L*W*H) | 4460*1950*2460 | Weight | 4360KG | |
| Warranty | ONE YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
MZ130Y solar energy building drilling rig1.depth:40-80m
2.hole size:100-400mm
3.it can drill from different direction
MZ130Y drilling rig use for solar energy building
adopt new-style hydraulic technique ,large rotation torque.the structure of the drilling rig is compact, During drilling the slide-skid are support on the ground to ensure the drilling has good stability.The usage of MZ130Y drilling rig has realiable property,high efficiency in anchor drilling.
Application:
MZ130Y crawler hydraulic drilling rig is mainly used in open cut ore mining,power station,road building for exploring the stone.
Working pressure | 0.7-1.6Mpa |
Air consumption | 10-15m3/min |
Bore diameter | 90-400mm |
Bore depth | Horizontal 40 down 30 |
Feed stroke | 3000mm |
Drill rod diameter | 60mm |
Guide compensation | 900mm |
Lifting force | 24800N |
Guide pitch | Up and down 45degree |
Guide swing | Left 40 right30 |
Boom pitch | Up and down 60 degree |
Boom swing | Left 90 right45 |
Climb ability | 30 degree |
Ground clearance | 260mm |
Walking speed | 2.5km/h |
Rotation speed | 0-60r/min |
Rotation torque | 4600N.M |
Motor power | 55KW |
Total weight | 380000kg |
dimension | 4400*1900*2300 |
